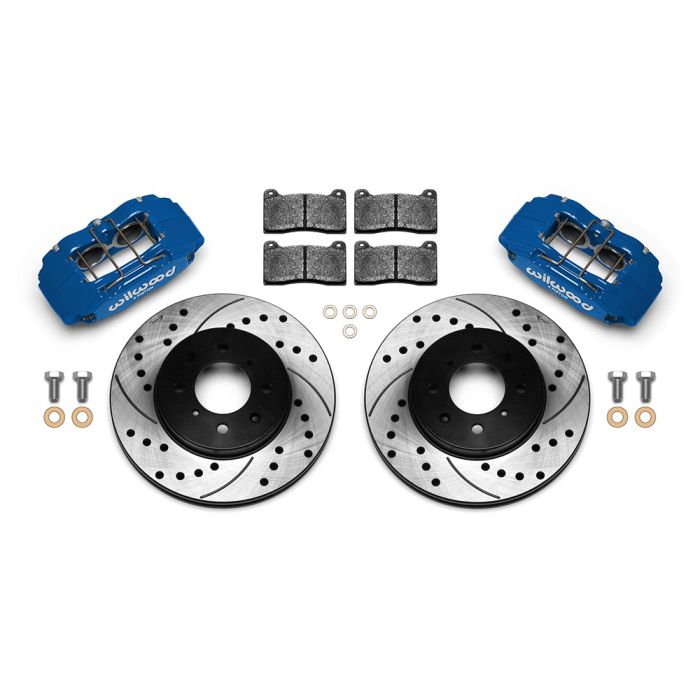

Wilwood 140-12996 DPHA Forged Front Brake Kit 10.32 Drilled Blue for Honda Acura

Forged DPHA Front Hub and Rotor Kit

Wilwood’s new DynaPro Honda/Acura (DPHA) caliper is a direct bolt-on upgrade for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers mount directly to the stock caliper brackets on the factory spindles, clear the original 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel. Engineered around Wilwood’s DynaPro series four piston calipers, the forged aluminum bodied DPHA caliper provides high-strength clamping force and exceptional braking performance. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep the calipers cooler and running free for many more miles. The calipers work seamlessly with the OE master cylinder and ABS functions and are available with a high-gloss, high-temperature, brake fluid resistant sealed powder coat finish in black or red, and feature the distinctive Wilwood logo.

Kit Overview

Stock Hub Offset:

0.00

Spindle Type:

Factory Disc Spindle

Mount Type:

Bolt-On

Caliper Type:

4 - Competition Blue

Rotor Diameter:

10.32

Minimum Wheel Diameter Required*:

15

Kit Components and Specifications

Brake Calipers

Left - P/N:

120-12949-CB

Right - P/N:

120-12949-CB

Type:

Forged DPHA

Finish Color:
Competition Blue Powder Coat

Number of Pistons:

4

Piston Diameter 1 (in):

1.62

Piston Diameter 2 (in):

1.62

Piston Area (in²):

4.12

Piston Type:

Stainless

Mount Type:

Lug

Brake Pad Plate:

7812

Brake Pad Area (in²):

6.36

Brake Pad Volume (in³):

2.1

Pad Compound:

BP-10

Brake Rotors

Left - P/N:

160-12839-BK

Right - P/N:

160-12838-BK

Type:
SRP Drilled Rotor

Style:
SRP Drilled and Slotted

Surface Finish:
Black E-Coat

Material:
Iron

Outside Diameter (in):

10.32

Width (in):

0.83

Number of Vanes:

Vented

Hat Design Type:

SRP-BLK

Polished:

No

Dynamically Balanced:

No

Vehicle Compatibility:

1990-1996 Acura Integra (all models)
1997-2001 Acura Integra (all models, except Type-R)
1996-2000 Honda Civic Coupe EX
1993-1995 Honda Civic Coupe EX AT
1993-1995 Honda Civic Coupe EX Manual
1994-1995 Honda Civic Coupe EX w/Rear Disc Brakes
1999-2000 Honda Civic Coupe SI
2005 Honda Civic DX / HX / VP
2004-2005 Honda Civic EX / GX / LX
2001-2003 Honda Civic EX / GX
1994-1995 Honda Civic Hatchback SI
1990-2000 Honda Civic Sedan EX
1992-1995 Honda Civic Sedan EX w/Rear Disc Brakes
1996 Honda Civic Sedan LX
1994-1995 Honda Civic Sedan LX AT
1994-1995 Honda Civic Sedan LX Manual
2002-2003 Honda Civic Si / SiR
2007-2013 Honda Fit Base
2008-2013 Honda Fit DX
2012 Honda Fit DX-A
2012-2013 Honda Fit EX
2008-2013 Honda Fit LX
2007-2013 Honda Fit Sport
