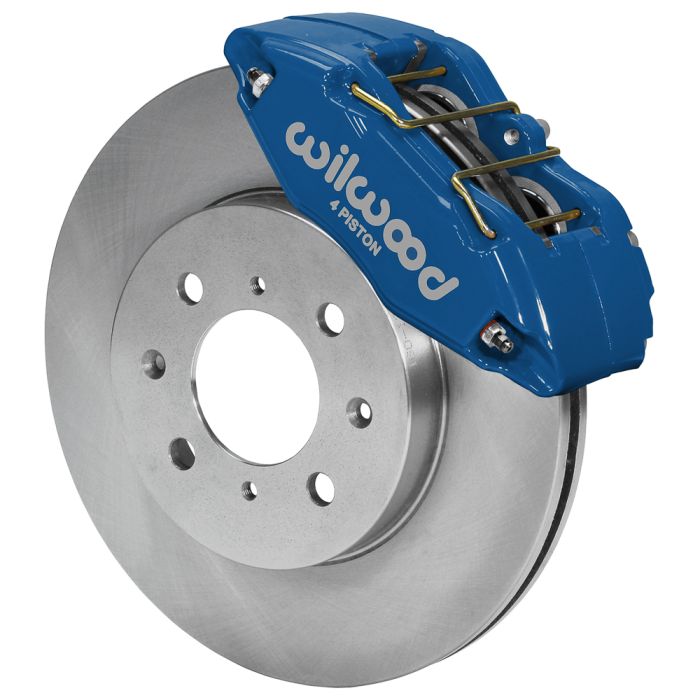

Wilwood 140-12996 DPHA Forged Front Brake Kit 10.32 Blue for Honda Acura

DPHA Forged Front Caliper and Disc Kit

Wilwood’s new DynaPro Honda/Acura (DPHA) caliper is a direct bolt-on upgrade for popular Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the factory knuckle mounts, clear the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the 15” EM1 Si wheel. Engineered around Wilwood’s DynaPro series four piston calipers, the DPHA caliper with its forged billet aluminum body provides high-strength clamping force and exceptional braking power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy, which will keep the calipers cooler and running trouble-free for many more miles. The calipers work perfectly with the OE master cylinder and ABS functions, and are available with a high-gloss, high-temperature, and brake fluid resistant sealed powder coat in black or red, and include Wilwood’s signature logo.

Kit Summary

Original Hub Offset:

0.00

Axle Type:

Factory Disc Axle

Mount Type:

Bolt-on

Caliper Type:

4 - Competition Blue

Disc Diameter:

10.32

Minimum Required Wheel Diameter*:

15

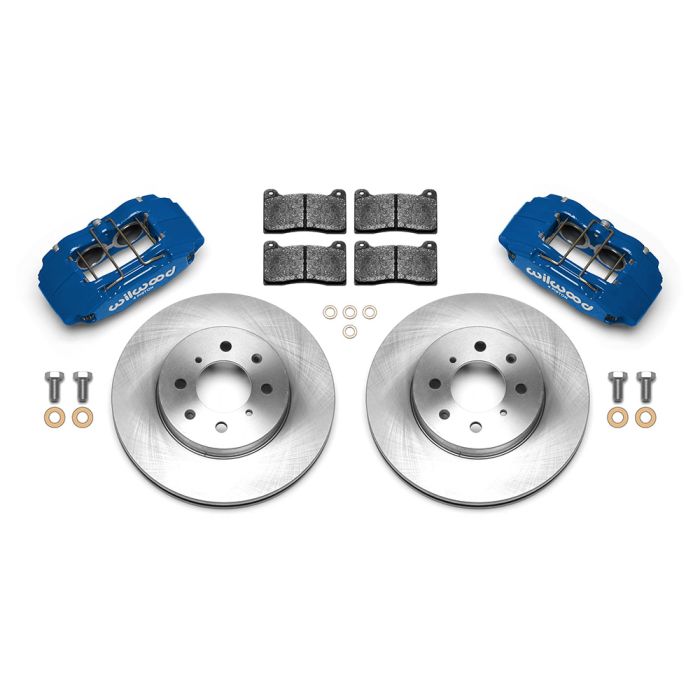

Kit Components and Specifications

Brake Calipers

Left - Part No.:

120-12949-CB

Right - Part No.:

120-12949-CB

Type:

Forged DPHA

Finish Color:
Competition Blue Powder Coat

Number of Pistons:

4

Piston Diameter 1 (in):

1.62

Piston Diameter 2 (in):

1.62

Piston Area (in²):

4.12

Piston Type:

Stainless Steel

Mount Type:

Lug

Brake Pad Plate:

7812

Brake Pad Area (in²):

6.36

Brake Pad Volume (in³):

2.1

Pad Compound:

BP-10

Brake Discs

Left - Part No.:

160-12959

Right - Part No.:
No.:

160-12959

Type:
HP Vented Rotor and Cap

Style:
Plain Surface

Finish:
Plain

Material:
Iron

Outside Diameter (in):

10.32

Width (in):

0.83

Number of Vanes:

Vented

Design Type:

HP

Polished:
No

Dynamically Balanced:
No

Vehicle Compatibility:

1990-1996 Acura Integra (all models)

1997-2001 Acura Integra (all models except Type-R)

1996-2000 Honda Civic Coupe EX

1993-1995 Honda Civic Coupe EX AT

1993-1995 Honda Civic Coupe EX Manual

1994-1995 Honda Civic Coupe EX with Rear Disc Brakes

1999-2000 Honda Civic Coupe SI

2005 Honda Civic DX / HX VP Models

2004-2005 Honda Civic EX / GX / LX
2001-2003 Honda Civic EX / GX
1994-1995 Honda Civic Hatchback SI
1990-2000 Honda Civic Sedan EX
1992-1995 Honda Civic Sedan EX with Rear Disc Brakes
1996 Honda Civic Sedan LX
1994-1995 Honda Civic Sedan LX with Automatic Transmission
1994-1995 Honda Civic Sedan LX with Manual Transmission
2002-2003 Honda Civic Si / SiR
2007-2013 Honda Fit Base
2008-2013 Honda Fit DX
2012 Honda Fit DX-A
2012-2013 Honda Fit EX
2008-2013 Honda Fit LX
2007-2013 Honda Fit Sport
