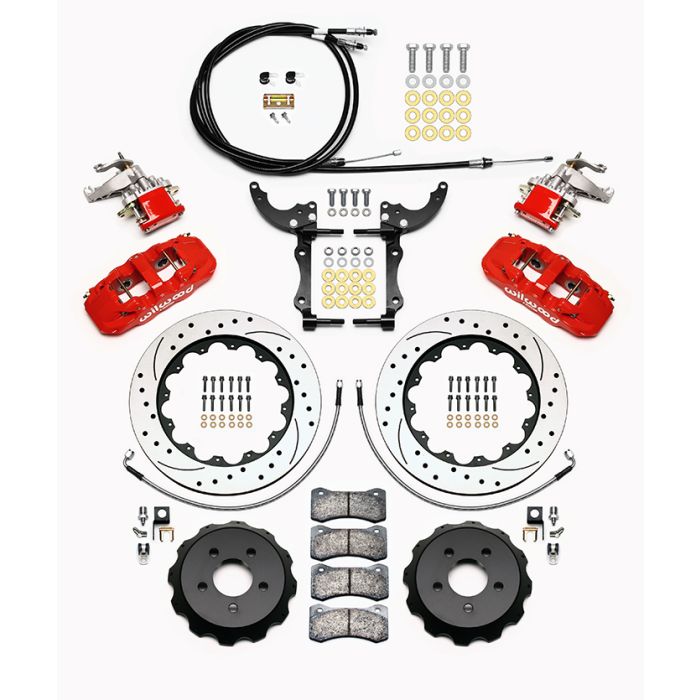

Wilwood 140-13888-DR AERO4-MC4 Big Rear Parking Brake Kit, Drilled, Red, 14.00 for Ford

AERO4-MC4 Big Brake Rear Parking Brake Kit

AERO4-MC4 Big Brake Rear Parking Brake Kits replace the factory disc brakes and use the MC4 parking brake assembly as a complement to high-performance front brake upgrades on late model vehicles. The high-capacity braking system of the AERO4R calipers, BP-10 compound pads, and oversized 14.00” rotors are matched to the OE master cylinder output, ABS function, and brake bias requirements for each vehicle. Improved braking performance, increased durability, and high-tech styling complement wheel, tire, and suspension upgrades on custom vehicles and any other vehicle with increased braking demands.

Kit Summary

Axle:

Rear

Axle Offset:

0.00

Mount Type:

Radial

Caliper Type:

4 - Red Powder Coat

Rotor Diameter:

14.00

Minimum Wheel Diameter Required*:

18

Kit Components and Specifications

Calipers

Left - P/N:

120-14004-RD

Right - P/N:

120-14004-RD

Type:

AERO4

Finish Color:

Red Powder Coat

Number of Pistons:

4

Piston Dia. 1 (in.):

1.12

Piston Dia. 2 (in.):

1.12

Piston Area (in.²):

1.98

Piston Type:

Stainless

Mount Type:

Radial

Brake Pad Plate:

6617

Brake Pad Area (in.²):

11.1

Brake Pad Volume (in.³):

5.2

Pad Compound:

BP-10

Brake Rotors

Left - P/N:

160-12886-BK

Right - P/N:

160-12885-BK

Type:
SRP Drilled Rotor

Style:

SRP Drilled & Slotted

Surface Finish:

Black E-Coat

Material:

Iron

Outside Diameter (in.):

14.00

Width (in.):

0.81

Number of Vanes:

36 V

Design Type:
SRP-BLK

Burnished:

No

Dynamically Balanced:

Yes

Rotor Hats

Hat - P/N:

170-13927

Type:
Big Brake Hat - Flared Bell

Material:
Aluminum

Finish Color:
Black E-Coat

Hat Offset Dim. (in.):

1.200

Bolt Circle 1:

5 x 4.50

Bolt Circle 2:

Bolt Circle 3:

Bolt Dia. - BC 1:

0.630

Bolt Dia. - BC 2:

0.000

Bolt Dia. - BC 3:

0.000

Vehicle Compatibility

2015 Ford Mustang Base (V6)

2019-2020 Ford Mustang Bullitt

2015-2023 Ford Mustang EcoBoost (with Performance Package)

2015-2023 Ford Mustang EcoBoost (without Performance Package)

2015-2023 Ford Mustang EcoBoost Premium (with Performance Package)

2015-2023 Ford Mustang EcoBoost Premium (without Performance Package)

2015 Ford Mustang GT 50th Anniversary Edition with Brembo Brakes

2015 Ford Mustang GT 50th Anniversary Edition without Brembo Brakes
2015-2023 Ford Mustang GT Premium with Brembo Brakes
2015-2023 Ford Mustang GT Premium without Brembo Brakes
2015-2023 Ford Mustang GT with Brembo Brakes
2015-2023 Ford Mustang GT without Brembo Brakes
2021-2023 Ford Mustang Mach 1
2016-2017 Ford Mustang V6
