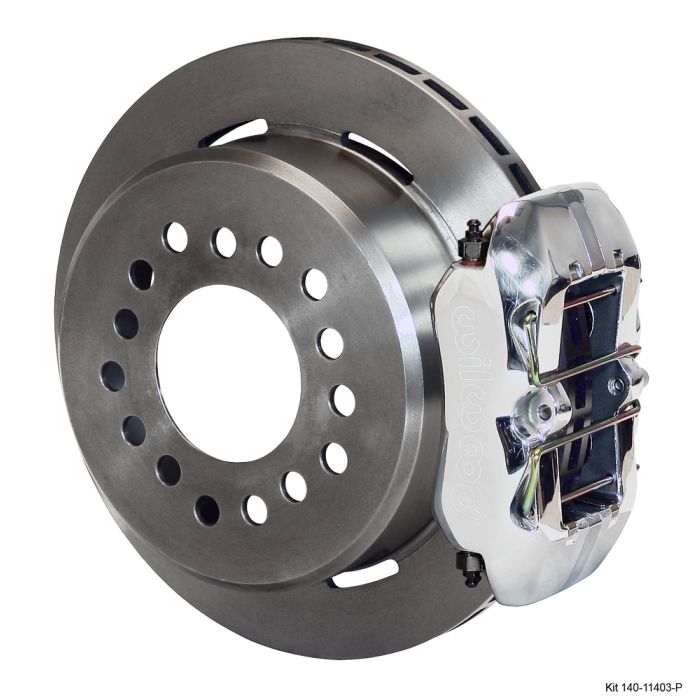

Wilwood 140-11403 Polished Forged Dynapro Low-Profile Rear Parking Brake Kit

Forged Dynapro Low-Profile Rear Parking Brake Kit

Forged Dynapro Pro-Series Low-Profile Rear Disc Brake Kits provide a complete solution for popular muscle car rear axles that require a parking brake assembly and extra clearance for 14.00”-15.00” wheels. Forged billet Dynapro Low-Profile four-piston calipers, 11.00” one-piece hats and rotors, and high friction pads provide optimized and balanced braking for all types of custom high performance street, track, and show vehicles. The neatly hidden internal shoe system allows for a clean installation with excellent static stopping power for parking. Optional caliper finishes and rotor designs allow the builder to customize style and optimize braking performance for every application.

Kit Summary

Rear Axle:

Small Ford

Axle Offset:

2.50

Mount Type:

Nut

Caliper Type:

4 - Polished

Rotor Diameter:

11.00"

Minimum Wheel Diameter Required*:

14"

Kit Components & Specifications

Calipers

Left - P/N:

120-16190-P

Right - P/N:

120-16190-P

Type:

Forged Dynapro Low-Profile

Finish Color:

Polished

Number of Pistons:

4

Piston Diameter 1 (in.):

1.38

Piston Diameter 2 (in.):

1.38

Piston Area (in.²):

3.00

Piston Type:

Stainless

Mount Type:

Lug

Brake Pad Plate:

4812

Brake Pad Area (in.²):

5.1

Brake Pad Volume (in.³):

1.71

Pad Compound:

BP-10

Rotors

Left - P/N:

160-11364

Right - P/N:

160-11364

Type:

Ultralite HP 32 & Hat

Style:

Plain Face

Surface Finish:

Smooth

Material:

Iron

Outside Diameter (in.):

11.00

Width (in.):

0.81

Number of Vanes:

32 V

Design Type:

ULHP

Polished:

No

Dynamically Balanced:

No
