Radium Engineering DIY Fuel Pump Wiring Kit

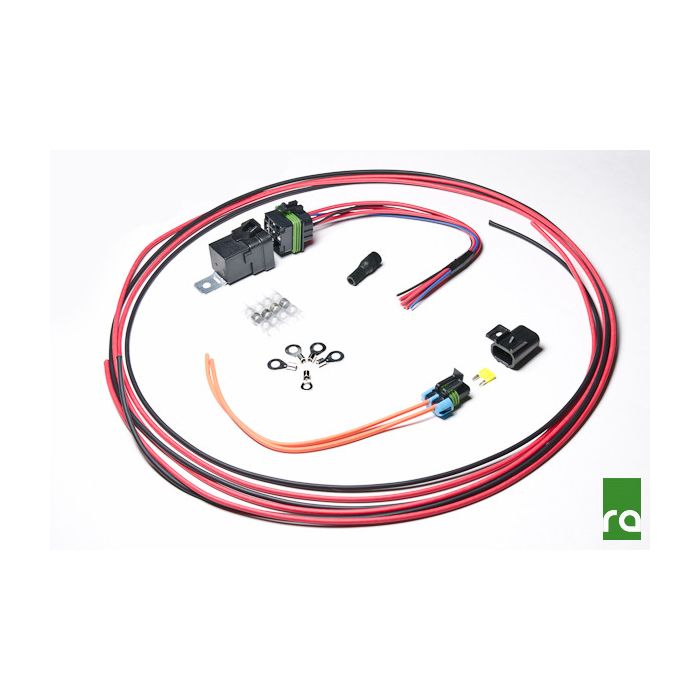

This DIY wiring kit includes the necessary parts to build a fuel pump power wiring harness. It uses the highest quality components to ensure proper operation in any condition. The relay and fuse holder are sealed to allow installation in weather-exposed areas, if necessary. The TXL aircraft-grade wiring is resistant to all types of chemicals and high temperatures. The Raychem crimp-less, solder-base butt connectors make for secure and clean wire connections. Also included are the necessary ring terminals for connection to an external Bosch 044 fuel pump.

Radium recommends a specific fuse and relay for each fuel pump. Therefore, order a wiring kit for EACH fuel pump.

Examples:

-If you purchased a Radium FST single internal pump, select "Quantity: 1"

-If you purchased a Radium FST Bosch 044 dual pump, select "Quantity: 2"

-If you purchased a Radium FST triple pump, select "Quantity: 3"

-If you purchased a Radium Fuel Hanger single pump, select "Quantity: 1"

-If you purchased a Radium Fuel Hanger dual pump, select "Quantity: 2"

-If you purchased a Radium Fuel Hanger triple pump, select "Quantity: 3"

Includes:

-Weatherproof 12V / 40A SPDT Relay w/ Mounting Tab (x1)

-Weatherproof 12" Relay Wire Pigtail (x1)

-Weatherproof Mini Fuse Holder w/ Mounting Tab (x1)

-Weatherproof Mini Fuse Wire Pigtail (x1)

-Posi-Tap "TRIGGER" Quick Connector (x1)

-Raychem Crimp-less Solder-Base Heat-Shrink Butt Splices (x4)

- 10 AWG 6mm Ring Terminals (x4)

- 10 AWG 5mm Ring Terminal (x1)

- 10 AWG Black TXL Wire (3m)

- 10 AWG Red TXL Wire (3m)

- 25A LED Mini Fuse (x1)

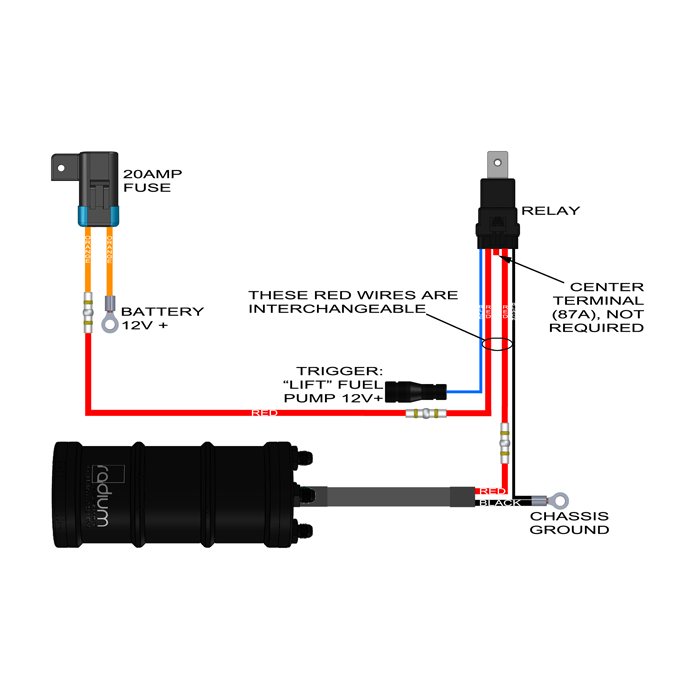

- Instructions with Wiring Diagrams

PDF Instructions

NOTE: The trigger relay can be connected to ground or a 12V signal, as long as the other end of the low-current relay coil wire is connected to an opposite voltage source.
