Davies Craig DC8060 12V EWP150 Remote Electric Water Pump Kit

EWP®150 Alloy Kit – Remote Electric Water Pump (12V)

The world’s first universal fit automotive Electric Water Pump, the EWP®150, provides superior performance. Compatible with all makes and models, it excels in six-cylinder engines, V8 engines, heavy-duty 4x4 vehicles and most engines over 400HP.

Upgrade your cooling system with the Davies Craig EWP®150 Alloy Electric Water Pump. Designed for remote mounting, it's ideal for high-performance, turbocharged, supercharged, and modified engines generating excessive heat, as well as intercooler applications.

The compact EWP®150 features internal AN16 ORB inlet and outlet connections for clean and easy installation. It either complements or replaces the factory mechanical water pump to enhance coolant temperature control and unleash engine power.

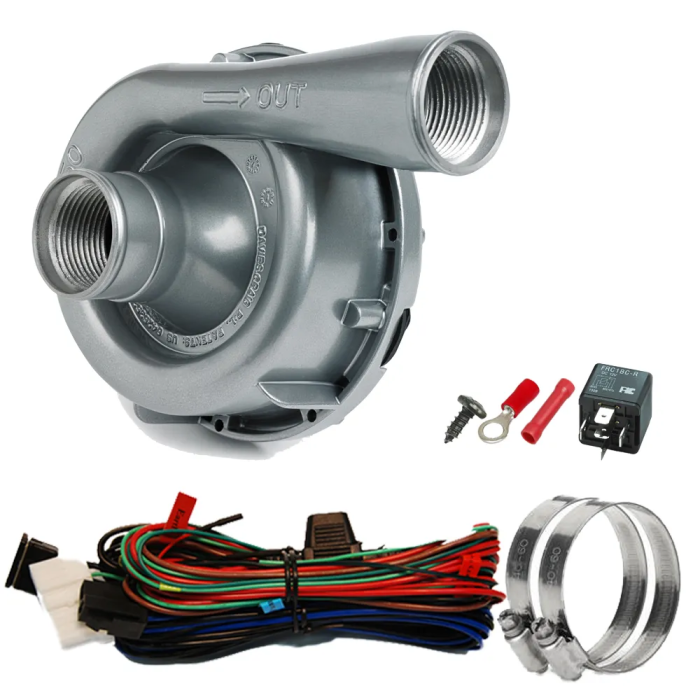

Kit Includes:

1x EWP®150 Alloy Pump (12V)

1x EWP® Basic Wiring Harness (with 10A Fuse)

2x Hose Clamps

1x Red Wire Joiner

1x Red 6mm Ring Terminal

1x 12V 40A 5-Pin Relay (with resistor protection)

1x 8x3/8 BZ Self Tapping Screw

Technical Specifications

Operating Voltage: 3V DC to 15V DC

Max Current: 10A at 13V

Flow Rate (Max): 162 L/min (42.8 US gal/min) at 13V DC

Operating Temp: -40°C to 120°C (-40°F to 248°F)

Pump Design: Clockwise centrifugal with volute chamber

Pump Weight: 1170 grams (2.6lb)

Pump Material: Aluminium (Powder Coated)

Burst Pressure: 500 kPa (72.5 psi)

Seal: Ceramic Face Seal

Self-priming: No, none of our pumps are self-priming

Compatible with hose sizes: 35mm to 51mm (1.38” to 2”)

Internal Connection: Inlet and Outlet: -16AN ORB

Pressure Connection: 38mm EWP Inlet & Outlet

With 3mm sleeve (DC8510): 44mm

With 6mm sleeve (DC8511): 51mm
