FUEL HANGER FEED KIT 20-0851-0X, NISSAN R35 GT-R

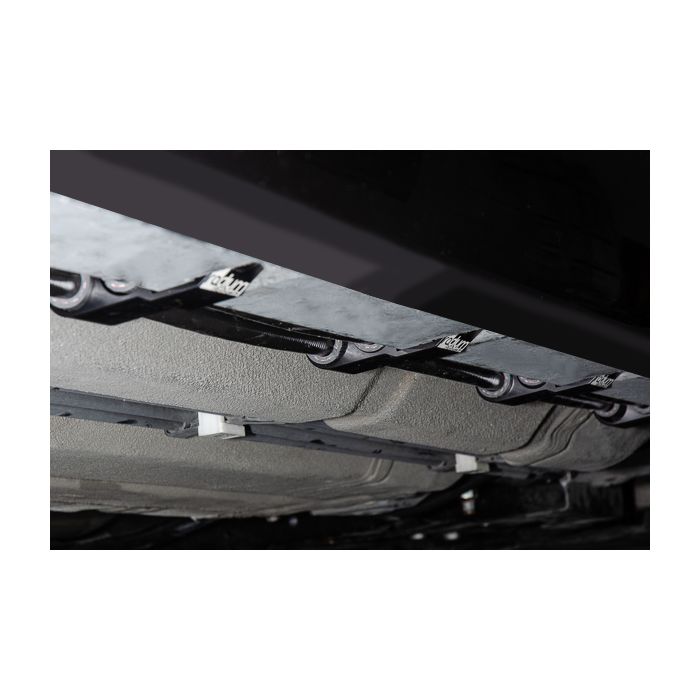

NOTE: This fuel hanger feed kit is only compatible with left-hand drive (LHD) vehicles. If installing a Radium in-tank fuel hanger with aftermarket high-flow pumps, the stock R35 fuel lines may not be sufficient. Fuel hanger feed kits include everything necessary to directly connect all Radium 20-055X-0X fuel hangers to Radium fuel rails. This includes new PTFE feed lines and reuses the factory feed line as the return for the regulator. When selecting a feed kit, first choose the filter element type. Stainless steel elements are cleanable and reusable, while micro-glass offers higher filtration efficiency but is not reusable. Fuel filters included with 20-0851-03 and 20-0851-05 feed kits feature an integrated check valve to maintain fuel pressure after the engine is shut off. Because fitment is extremely precise, the -10AN "PUMPS" output is first split into two -6AN feed lines. The two 6AN PTFE lines run in parallel underneath the vehicle and are secured by billet aluminum clamps using OEM hardware.

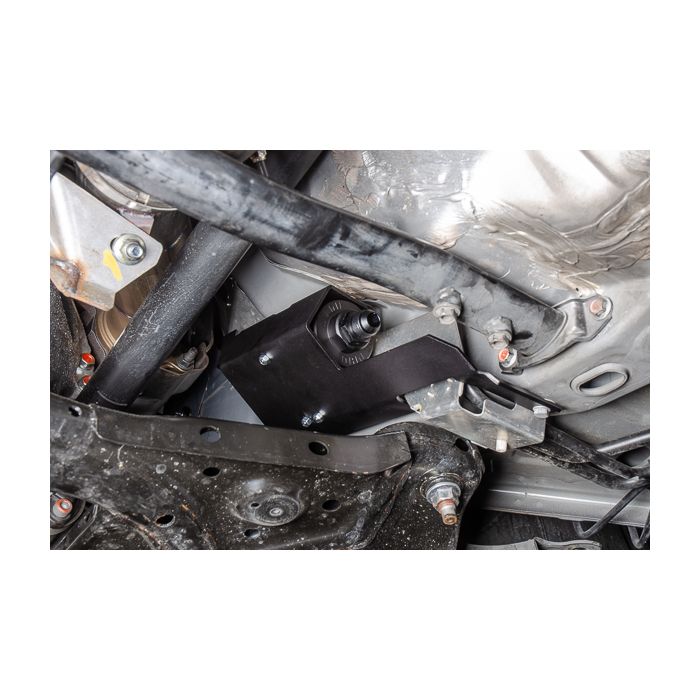

The two -6AN PTFE lines pass through a serviceable fuel filter secured by a GT-R specific heat shield.

Depending on the kit chosen (-03 or -05), the fuel filter will be assembled with the appropriate elements.

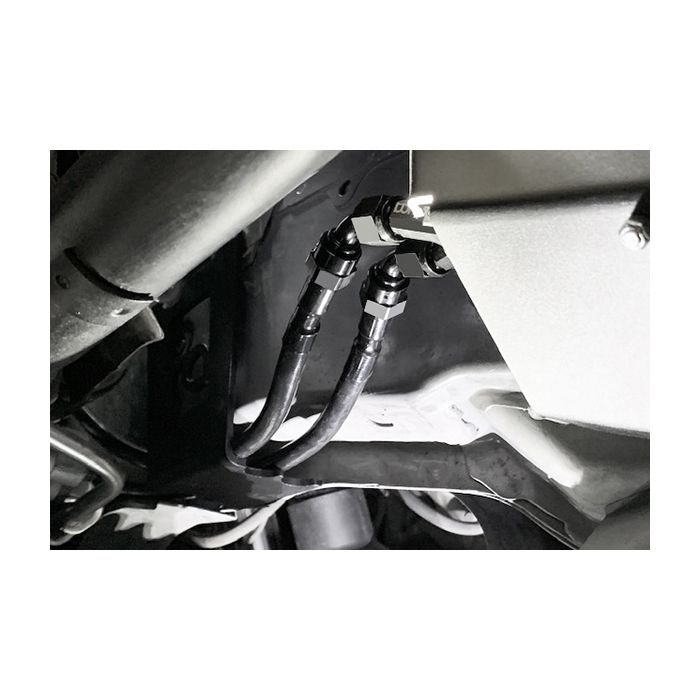

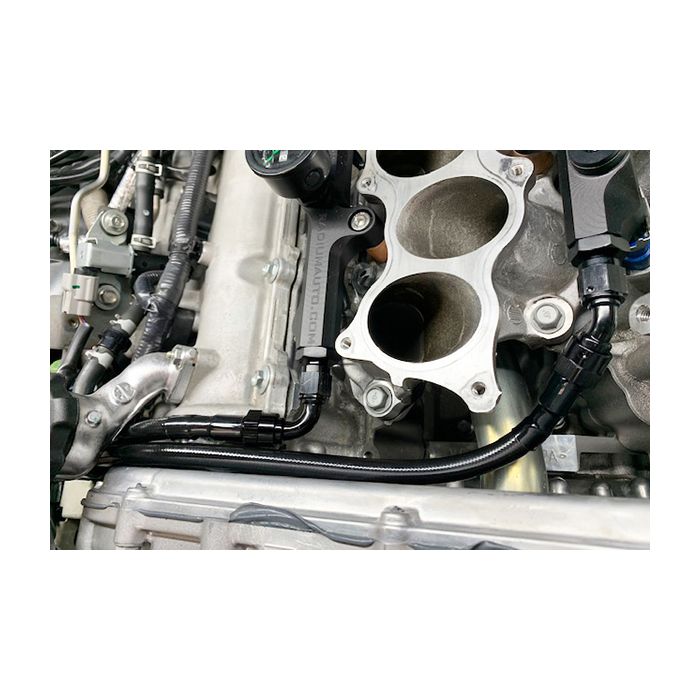

The two lines then split and are ready to be installed onto the 6AN male fittings on the front ports of the fuel rails (not included).
INCLUDES: Filter with check valve (-03 stainless, -05 micro-glass), 10AN ORB to 10AN low profile male adapter, 10AN to 6AN Y-adapters (x3), fuel line clamping brackets (x5), R35 filter heat shield bracket, two-piece 60mm filter clamp, 6AN PTFE fuel hoses (x4), stainless steel hardware.
