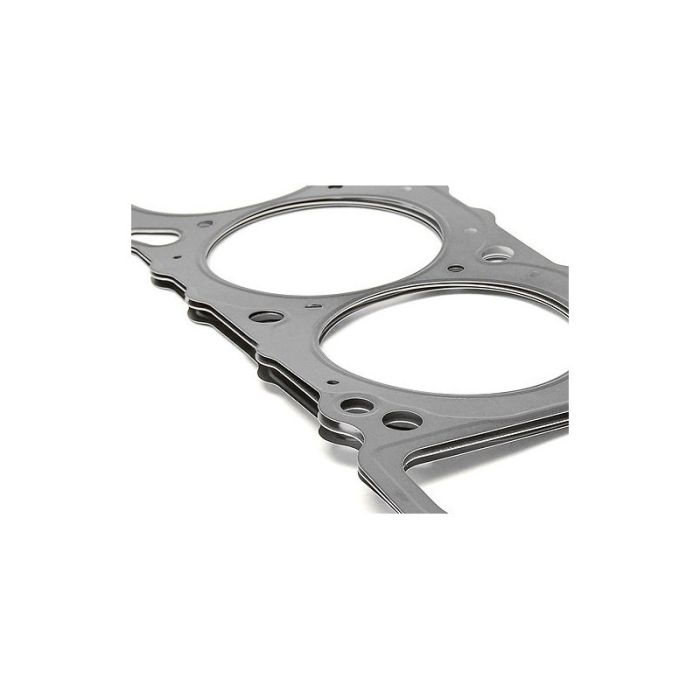

Cometic Head Gasket (MLS-5), Honda CRX Civic Integra VTEC / TH. 1.8 mm B. 85 mm

ATHENA Multi-Layer Steel (MLS) Gasket

Material
ATHENA MLS gaskets feature a combination of 3 to 5 layers made of different types of raw materials.

The combination of outer and inner layers is designed to offer superior standard compression performance, and the type of steel used may vary according to engine requirements.
Athena MLS gaskets provide a uniform torque load over the entire sealing surface to compensate for any cylinder deformation.

The Athena MLS gasket is the ideal solution for both aluminum cylinder heads with cast iron blocks and aluminum cylinder heads with aluminum blocks.

Manufacturing process
Newly designed Athena MLS cylinder head gaskets are made from high-quality, high-hardness 301 stainless steel.
Each layer is individually formed by state-of-the-art laser cutting and embossed with an optimized forming process.
Two layers of the cylinder head gasket undergo a stress relief process to significantly reduce the stress induced by embossing.
After the stress relief process, a proprietary two-component polymer coating is applied, ensuring uniform coverage of the outer layers, with no interruptions in the coating. This process ensures the micro-sealing of engine coolant and oil fluids.

Athena MLS gaskets are tested and analyzed on engine test benches and endurance tests.

Gas Stopper Technology

Gas Stopper technology is a key factor in the design of competition MLS cylinder head gaskets. The stainless steel stopper layer incorporates an innovative active folding system that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. The gas stopper is located around the combustion chamber, allowing a tighter fit between the cylinder head and the engine block, preventing gas leaks.

This also prevents component deformation due to faster temperature equalization. Benefits

Superior sealing properties under high-pressure conditions

Increased elasticity and constant load resistance

Optimized load balance

Improved engine performance

Greater durability

Proprietary coating technology

Our two-component polymer coating is applied after the stress relief process and ensures uniform coverage of the outer layers, without interruptions in the coating. This process ensures the micro-sealing of coolant/engine oil fluids and meets the demands of various harsh environments.

The first layer is a high-temperature compound that adapts to the surface irregularities of the engine block and cylinder head. (Typical MLS cylinder head gaskets require a 30 Ra surface finish, while Athena's seal surface finishes up to 60 Ra).

The second layer is easily removable and does not adhere to contact surfaces when disassembling the engine.
Compatible with:
MAZDA BP5A 1839 cc 103 kW, MAZDA BP6J 1839 cc 102 kW, MAZDA MX-5 II (NB) 1.8 (NB8C) 1839 cc 103 kW, MAZDA 323 C IV (BG) 1.8 16 V (BG8S) 1840 cc 103 kW, MAZDA 323 C IV (BG) 1.8 16 V 4WD (BG8S) 1840 cc 76 kW, MAZDA 323 C IV (BG) 1.8 16 V GT (BG8S) 1840 cc 94 kW, MAZDA 323 C V (BA) 1.8 16 V (BA8P) 1840 cc 84 kW, MAZDA 323 F IV (BG) 1.8 16 V (BG8S, BG8P) 1840cc 76kwMAZDA 323 F IV (BG)1.8 16V (BG8S, BG8P) 1840cc 103kwMAZDA 323 F IV (BG)1.8 16V GT (BG8S, BG8P) 1840cc 94kwMAZDA 323 F IV (BG)1.8 4WD (BG8R) 1840cc 76kwMAZDA 323 F V (BA)1.8 16V (BA8P) 1840cc 84kwMAZDA 323 S IV (BG)1.8 16V (BG8P) 1840cc 76kwMAZDA 323 S IV (BG)1.8 16V GT (BG8P) 1840cc 94kwMAZDA 323 SV (BA)1.8 16V (BA11) 1840 cc 84 kW MAZDA BP 1840 cc 76 kW MAZDA BP (DOHC) 1840 cc 92 kW MAZDA BP-ZE 1840 cc 84 kW MAZDA BP22 1840 cc 103 kW MAZDA BP31 1840 cc 103 kW MAZDA BP52 1840 cc 76 kW MAZDA BPC 1840 cc 76 kW MAZDA BPF1 1840 cc 92 kW MAZDA MX-5 I (NA) 1.8 (NA8C) 1840 cc 96 kW MAZDA MX-5 II (NB) 1.8 16V (NB8C) 1840 cc 103 kW
