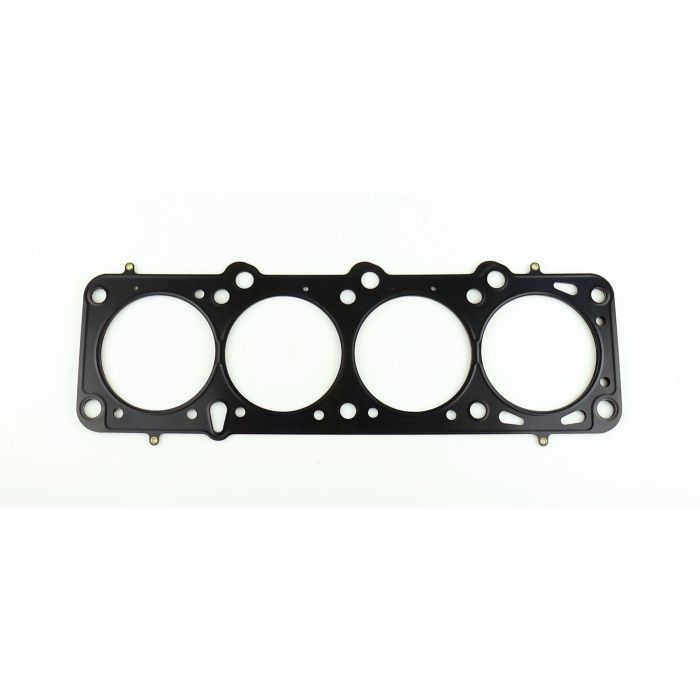

Athena MLS Head Gasket for Volvo 240 / 740 / 760 / 940 1.5 mm 97 mm 338462R

ATHENA Multi-Layer Steel (MLS) Gasket

Material
ATHENA MLS gaskets feature a combination of 3 to 5 layers made from different types of raw materials.

The combination of outer and inner layers is designed to offer superior performance to standard compression, and the type of steel used may vary according to engine requirements.
Athena MLS gaskets provide uniform clamping load across the entire sealing surface to compensate for any cylinder deformation.

The Athena MLS gasket is the ideal solution for both aluminum cylinder heads with cast iron blocks and aluminum cylinder heads with aluminum blocks.

Manufacturing Process
Newly designed Athena MLS head gaskets are made from high-quality, high-strength 301 stainless steel.
Each layer is individually formed using state-of-the-art laser cutting and embossed with an optimized forming process.
Two layers of the head gasket undergo a stress relief process to significantly reduce stress induced by embossing.
After the stress relief process, a proprietary two-component polymer coating is applied, ensuring uniform coverage of the outer layers, with no discontinuities in the coating. This process ensures the micro-sealing of engine coolant and oil fluids.

Athena MLS gaskets are tested and analyzed on engine test benches and in endurance tests.

Gas Stopper Technology

Gas Stopper Technology is a key factor in the design of competition MLS head gaskets. The stainless steel stopper layer incorporates an innovative active folding system that provides high-pressure sealing around the cylinder bore when tightening the cylinder head. The gas stopper is located around the combustion chamber, allowing for a firmer fit between the cylinder head and the engine block, preventing gas leaks.

This also prevents component deformation due to faster temperature equalization. Benefits

Superior sealing properties under high-pressure conditions

Increased elasticity and constant load resistance

Optimized load balance

Improved engine performance

Increased durability

Proprietary Coating Technology

Our two-component polymer coating is applied after the stress relief process and ensures uniform coverage of the outer layers, with no discontinuities in the coating. This process ensures the micro-sealing of engine coolant/oil fluids and meets the demands of various harsh environments.

The first layer is a high-temperature compound that conforms to the surface irregularities of the engine block and cylinder head. (Typical MLS head gaskets require a 30 Ra surface finish, while Athena's seal surface finishes up to 60 Ra).

The second layer peels off easily and does not adhere to contact surfaces when disassembling the engine.
Compatible with:

VOLVO 240 (P242, P244) 2.3 2315 cc 83 kW VOLVO 740 (744) 2.3 2315 cc 83 kW VOLVO 240 (P242, P244) 2.3 2316 cc 81 kW VOLVO 240 (P242, P244) 2.3 2316 cc 103 kW VOLVO 240 (P242, P244) 2.3 2316 cc 98 kW VOLVO 240 (P242, P244) 2.3 2316 cc 96 kW VOLVO 240 (P242, P244) 2.3 2316 cc 82 kW VOLVO 240 (P242, P244) 2.3 2316 cc 100 kW 240 (P242, P244)2.3 i Cat 2316cc 85kwVOLVO 240 Kombi (P245)2.3 2316cc 81kwVOLVO 240 Kombi (P245)2.3 2316cc 96kwVOLVO 240 Kombi (P245)2.3 2316cc 83kwVOLVO 240 Kombi (P245)2.3 2316cc 100kwVOLVO 240 Kombi (P245)2.3 2316cc 98kwVOLVO 240 Kombi (P245)2.3 2316cc 82kwVOLVO 240 Kombi (P245)2.3 Cat 2316cc 100kwVOLVO 240 Kombi (P245)2.3 i Cat 2316 cc 85 kW VOLVO 740 (744) 2.3 2316 cc 95 kW VOLVO 740 (744) 2.3 2316 cc 111 kW VOLVO 740 (744) 2.3 2316 cc 114 kW VOLVO 740 (744) 2.3 2316 cc 84 kW VOLVO 740 (744) 2.3 2316 cc 117 kW VOLVO 740 (744) 2.3 2316 cc 85 kW VOLVO 740 (744) 2.3 2316 cc 96 kW VOLVO 740 (744) 2.3 Turbo 2316 cc 140 kW VOLVO 740 (744) 2.3 Turbo 2316 cc 121 kW VOLVO 740 (744)2.3 Turbo 2316cc 134kwVOLVO 740 (744)2.3 Turbo 2316cc 115kwVOLVO 740 Kombi (745)2.3 2316cc 85kwVOLVO 740 Kombi (745)2.3 2316cc 114kwVOLVO 740 Kombi (745)2.3 2316cc 96kwVOLVO 740 Kombi (745)2.3 2316cc 111kwVOLVO 740 Kombi (745)2.3 2316cc 117kwVOLVO 740 Kombi (745)2.3 2316cc 96kwVOLVO 740 Kombi (745)2.3 2316cc 83kwVOLVO 740 Combi (745)2.3 Turbo 2316cc 134kwVOLVO 740 Kombi (745)2.3 Turbo 2316cc 115kwVOLVO 740 Kombi (745)2.3 Turbo 2316cc 140kwVOLVO 740 Kombi (745)2.3 Turbo 2316cc 121kwVOLVO 760 (704, 764)2.3 2316cc 127kwVOLVO 760 (704, 764)2.3 2316cc 130kwVOLVO 760 (704, 764)2.3 2316cc 121kwVOLVO 760 (704, 764)2.3 Turbo 2316cc 127kwVOLVO 760 (704, 764)2.3 Turbo 2316cc 134kwVOLVO 760 Kombi (704, 765)2.3 2316cc 121kwVOLVO 760 Kombi (704, 765)2.3 Turbo 2316cc 134kwVOLVO 940 (944)2.3 2316cc 114kwVOLVO 940 (944)2.3 2316cc 99kwVOLVO 940 (944)2.3 2316cc 85kwVOLVO 940 (944)2.3 2316cc 118kwVOLVO 940 (944)2.3 2316cc 96kwVOLVO 940 (944)2.3 Turbo 2316cc 121kwVOLVO 940 (944)2.3 Turbo 2316cc VOLVO 940 II (944) 2.3 2316cc 140kW VOLVO 940 II (944) 2.3 2316cc 96kW VOLVO 940 II (944) 2.3 Turbo 2316cc 121kW VOLVO 940 II (944) 2.3 ti 2316cc 99kW VOLVO 940 II Station Wagon (945) 2.3 2316cc 85kW VOLVO 940 II Station Wagon (945) 2.3 2316cc 96kW VOLVO 940 II Station Wagon (945) 2.3 Turbo 2316cc 126kW VOLVO 940 II Station Wagon (945) 2.3 Turbo 2316cc 121kW VOLVO 940 II Station Wagon (945) 2.3 ti 2316cc 99kwVOLVO 940 Kombi (945)2.3 2316cc 114kwVOLVO 940 Kombi (945)2.3 2316cc 96kwVOLVO 940 Kombi (945)2.3 2316cc 85kwVOLVO 940 Kombi (945)2.3 Turbo 2316cc 140kwVOLVO 940 Kombi (945)2.3 Turbo 2316cc 121kwVOLVO 960 (964)2.3 Turbo 2316cc 121kwVOLVO 960 Kombi (965)2.3 Turbo 2316cc 121kwVOLVO B 23 A 2316cc 78kwVOLVO B 23 E 2316cc 91kwVOLVO B 23 ET 2316 cc 127 kW VOLVO B 23 F 2316 cc 83 kW VOLVO B 230 A 2316 cc 81 kW VOLVO B 230 E 2316 cc 89 kW VOLVO B 230 ET 2316 cc 130 kW VOLVO B 230 F 2316 cc 81 kW VOLVO B 230 FB 2316 cc 96 kW VOLVO B 230 FD 2316 cc 85 kW VOLVO B 230 FK 2316 cc 99 kW VOLVO B 230 FT 2316 cc 115 kW VOLVO B 230 FT+ 2316 cc 140 kW VOLVO B 230 G 2316 cc 90 kW VOLVO B 230 GT 2316 cc 121 kW VOLVO B 234 F VOLVO B 234 G 2316cc 111kw
