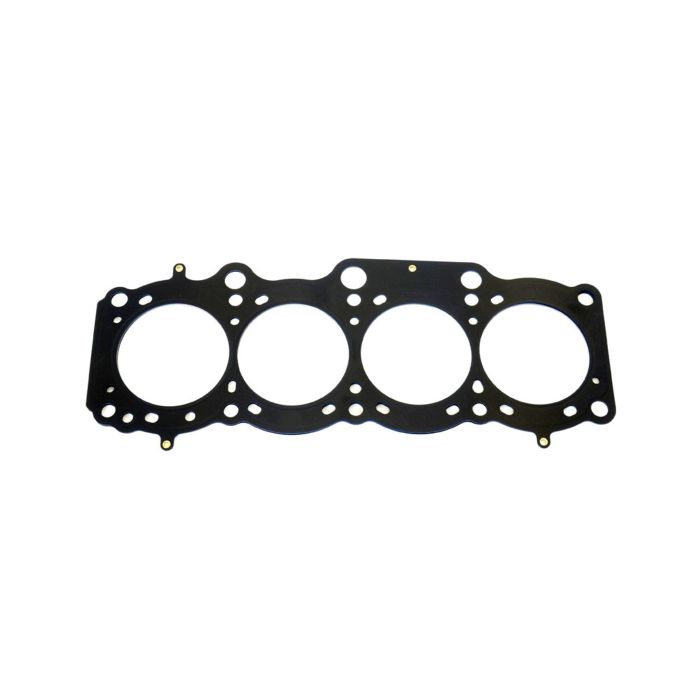

Athena MLS Cylinder Head Gasket for Toyota MR2 II / Celica / Carina / 3S-GE / 3S-GTE 1.3mm 87mm 338326R

ATHENA Multi-Layer Steel (MLS) Gasket

Material
ATHENA MLS gaskets feature a combination of 3 to 5 layers made of different types of raw materials.

The combination of outer and inner layers is designed to offer superior standard compression performance, and the type of steel used can vary depending on the engine's requirements.
Athena MLS gaskets provide a uniform torque load across the entire sealing surface to compensate for any cylinder deformation.

The Athena MLS gasket is the ideal solution for both aluminum cylinder heads with cast iron blocks and aluminum cylinder heads with aluminum blocks.

Manufacturing Process
Newly designed Athena MLS head gaskets are made from high-strength, high-quality 301 stainless steel.
Each layer is individually formed using state-of-the-art laser cutting and embossed with an optimized forming process.
Two layers of the head gasket undergo a stress-relief process to significantly reduce the stress induced by embossing.
After the stress-relief process, a patented two-component polymeric coating is applied, ensuring uniform coverage of the outer layers, with no interruptions in the coating. This process ensures the micro-sealing of coolant and engine oil fluids.

Athena MLS gaskets are tested and analyzed on engine test benches and in endurance tests.

Gas Stopper Technology

Gas Stopper technology is a key factor in the design of competition MLS head gaskets. The stainless steel stopper layer incorporates an innovative active folding system that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. The gas stopper is located around the combustion chamber, allowing for a firmer fit between the cylinder head and the engine block, preventing gas leaks.

This also prevents component deformation due to faster temperature equalization. Benefits

Superior sealing properties under high-pressure conditions

Greater elasticity and consistent load resistance

Optimized load balance

Improved engine performance

Increased durability

Patented Coating Technology

Our two-component polymer coating is applied after the stress-relief process and ensures uniform coverage of the outer layers, with no interruptions in the coating. This process ensures the micro-sealing of coolant/engine oil fluids and meets the demands of various harsh environments.

The first layer is a high-temperature compound that conforms to the surface irregularities of the engine block and cylinder head. (Typical MLS head gaskets require a 30 Ra surface finish, while Athena's seal surface finishes up to 60 Ra).

The second layer is easily removable and does not adhere to contact surfaces when disassembling the engine.
Compatible with:
TOYOTA 3S-GE 1998 cc 103 kW, TOYOTA 3S-GTE 1998 cc 136 kW, TOYOTA CARINA E VI (T19) 2.0 GTi (ST191) 1998 cc 116 kW, TOYOTA CARINA E VI Saloon (T19) 2.0 GTi (ST191, ST191R) 1998 cc 116 kW, TOYOTA CELICA Convertible (T18) 2.0 GTi (ST182) 1998 cc 115 kW, TOYOTA CELICA Coupe (T16) 2.0 Turbo 4WD (ST165, ST165) 1998 cc 136 kW, TOYOTA CELICA Coupe (T18) 2.0 (ST182, ST183) 1998 cc 115 kW TOYOTA CELICA Coupe (_T18_) 2.0 (ST182_, ST182) 1998 cc 118 kW TOYOTA CELICA Coupe (_T18_) 2.0 4WD (ST185) 1998 cc 153 kW TOYOTA CELICA Coupe (_T18_) 2.0 4WD (ST185) 1998 cc 150 kW TOYOTA MR2 II (SW2_) 2.0 16V (SW20_) 1998 cc 129 kW TOYOTA MR2 II (SW2_) 2.0 16V (SW20_) 1998 cc 125 kW TOYOTA MR2 II (SW2_) 2.0 16V (SW20_) 1998 cc 115 kW TOYOTA MR2 II (SW2_)2.0 Turbo (SW20_) 1998 cc 180 kW
