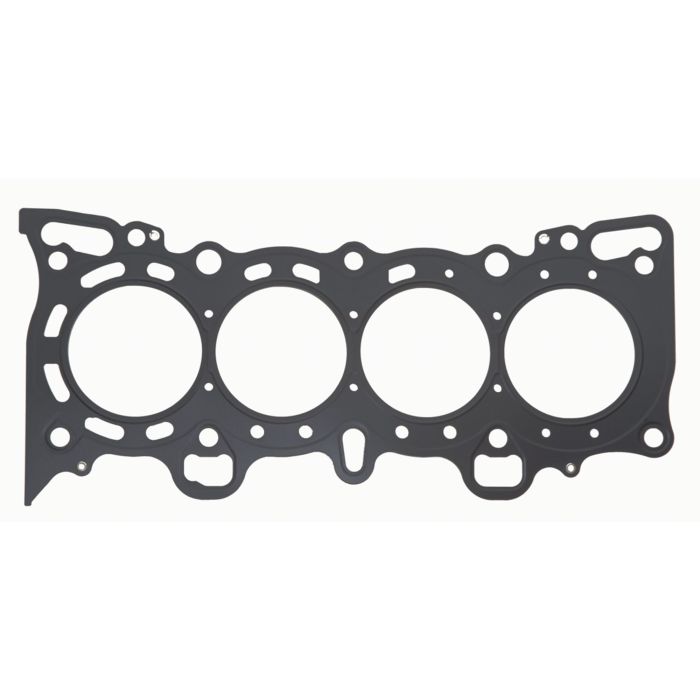

Athena MLS Head Gasket for Rover D 16 Y3 / Honda Civic V / VI / CRX III 0.85 mm 76 mm 338112R

ATHENA Multi-Layer Steel (MLS) Head Gasket

Material
ATHENA MLS gaskets feature a combination of 3 to 5 layers made of different types of raw materials.

The combination of outer and inner layers is designed to provide superior standard compression performance, and the type of steel used may vary according to engine requirements.
Athena MLS gaskets provide uniform torque load over the entire sealing surface to compensate for any cylinder deformation.

The Athena MLS gasket is the ideal solution for both aluminum cylinder heads with cast iron blocks and aluminum cylinder heads with aluminum blocks.

Manufacturing process
Newly designed Athena MLS head gaskets are made of high-quality, high-strength 301 stainless steel.
Each layer is individually formed by state-of-the-art laser cutting and embossed with an optimized forming process.
Two layers of the head gasket undergo a stress-relief process to significantly reduce the stress induced by the embossing.
After the stress-relief process, a proprietary two-component polymer coating is applied, ensuring uniform coverage of the outer layers, with no interruptions in the coating. This process ensures micro-sealing of engine coolant and oil fluids.

Athena MLS gaskets are tested and analyzed on engine test benches and in endurance tests.

Gas Stopper Technology

Gas Stopper Technology is a key factor in the design of competition MLS head gaskets. The stainless steel stopper layer incorporates an innovative active folding system that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. The gas stopper is located around the combustion chamber, allowing for a tighter fit between the cylinder head and the engine block, preventing gas leaks.

This also prevents component deformation due to faster temperature equalization. Benefits

Superior sealing properties under high-pressure conditions

Greater elasticity and constant load resistance

Optimized load balance

Improved engine performance

Increased durability

Proprietary coating technology

Our two-component polymer coating is applied after the stress relief process and ensures uniform coverage of the outer layers, with no interruptions in the coating. This process ensures micro-sealing of engine coolant/oil fluids and meets the demands of various harsh environments.

The first layer is a high-temperature compound that adapts to surface irregularities of the engine block and cylinder head. (Typical MLS head gaskets require a 30 Ra surface finish, while Athena's seal surface finishes up to 60 Ra).

The second layer is easily removable and does not adhere to contact surfaces when disassembling the engine.
Fits:
HONDA CIVIC V Hatchback (EG)1.5 i 16V (EG4) 1493cc 66kwHONDA CIVIC V Hatchback (EG)1.5 i 16V (EG4) 1493cc 69kwHONDA CIVIC V Saloon (EG, EH)1.5 (EG8) 1493cc 74kwHONDA CIVIC V Saloon (EG, EH)1.5 i 16V (EG8) 1493cc 69kwHONDA CIVIC VI Fastback (MA, MB)1.5 i Vtec-E (MA9) 1493cc 66kwHONDA CIVIC VI Hatchback (EJ, EK)1.5 1493cc 66kwHONDA D15B2 1493cc 61kwHONDA D15B3 1493cc 66kwHONDA D15B4 1493cc 72kwHONDA D15B7 1493cc 67kwHONDA D15Z1 1493cc 66kwHONDA D15Z2 1493cc 66kwHONDA D15Z3 1493cc 66kwHONDA CIVIC V Coupe (EJ)1.6 i Vtec (EJ1) 1590cc 92kwHONDA CIVIC V Hatchback (EG)1.6 16V Vtec (EG5) 1590cc 92kwHONDA CIVIC V Saloon (EG, EH)1.6 16V Vtec (EH9) 1590cc 92kwHONDA CIVIC V Saloon (EG, EH)1.6 4x4 1590cc 92kwHONDA CIVIC VI Fastback (MA, MB)1.6 i Vtec (MB1) 1590cc 93kwHONDA CIVIC VI Hatchback (EJ, EK)1.6 (MB1) 1590cc 93kwHONDA CRX III (EH, EG) | CIVIC del Sol1.6 ESi (EH6) 1590cc 92kwHONDA D16Y2 1590cc 93kwHONDA D16Y6 1590cc 92kwHONDA D16Y8 1590cc 84kwHONDA D16Z6 1590cc 91kwHONDA D16Z7 1590cc 88kwHONDA D16Z9 1590cc 92kwROVER 400 II (RT)416 Si 1590cc 83kwROVER D 16 Y3 1590cc 83 kW
