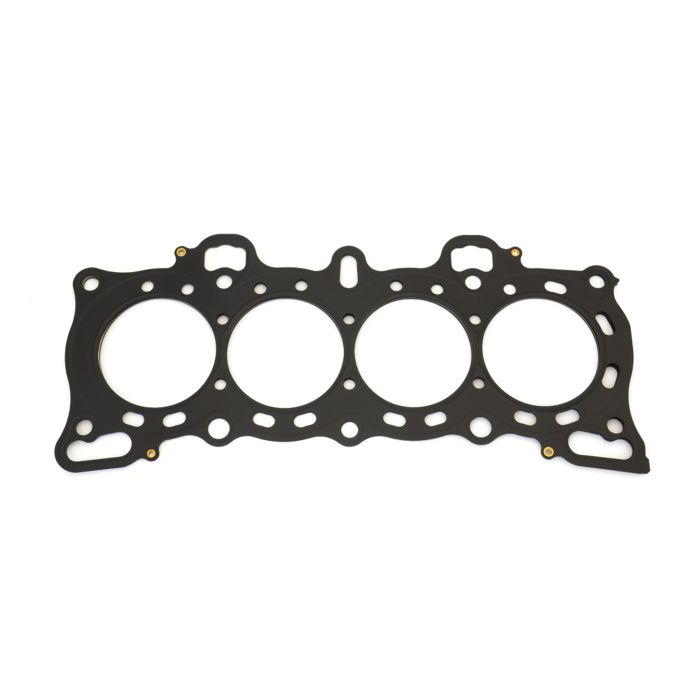

Athena MLS Head Gasket for Rover 200 II / 400 II / Honda Civic II / IV / V / Concerto / CRX II / City III 0.85 mm 77 mm 338108R

ATHENA Multi-Layer Steel (MLS) Gasket

Material
ATHENA MLS gaskets feature a combination of 3 to 5 layers made from different types of raw materials.

The combination of outer and inner layers is designed to offer superior performance to standard compression, and the type of steel used may vary according to engine requirements.
Athena MLS gaskets provide uniform clamping load across the sealing surface to compensate for any cylinder deformation.

The Athena MLS gasket is the ideal solution for both aluminum cylinder heads with cast iron blocks and aluminum cylinder heads with aluminum blocks.

Manufacturing Process
Newly designed Athena MLS head gaskets are made from high-quality, high-hardness 301 stainless steel.
Each layer is individually formed using state-of-the-art laser cutting and embossed with an optimized forming process.
Two layers of the head gasket undergo a stress relief process to significantly reduce the stress induced by embossing.
After the stress relief process, a proprietary two-component polymeric coating is applied, ensuring uniform coverage of the outer layers, with no interruptions in the coating. This process ensures the micro-sealing of engine coolant and oil fluids.

Athena MLS gaskets are tested and analyzed on engine test benches and in endurance tests.

Gas Stopper Technology

Gas Stopper technology is a key factor in the design of racing MLS head gaskets. The stainless steel stopper layer incorporates an innovative active folding system that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. The gas stopper is located around the combustion chamber, allowing for a tighter fit between the cylinder head and engine block, preventing gas leaks.

This also prevents component deformation due to faster temperature equalization. Benefits

Superior sealing properties under high-pressure conditions

Greater elasticity and constant load resistance

Optimized load balance

Improved engine performance

Increased durability

Patented Coating Technology

Our two-component polymer coating is applied after the stress relief process and ensures uniform coverage of the outer layers, with no interruptions in the coating. This process ensures the micro-sealing of engine coolant/oil fluids and meets the demands of various harsh environments.

The first layer is a high-temperature compound that adapts to surface irregularities of the engine block and cylinder head. (Typical MLS head gaskets require a 30 Ra surface finish, while Athena gaskets seal surface finishes up to 60 Ra).

The second layer easily peels off and does not adhere to contact surfaces when disassembling the engine.
Compatible with:
HONDA CIVIC IV Hatchback (EC, ED, EE) 1.3 (EC8) 1343 cc 55 kWHONDA CIVIC IV Hatchback (EC, ED, EE) 1.3 16V Cat (EC8) 1343 cc 55 kWHONDA CIVIC IV Saloon (ED) 1.3 (ED1) 1343 cc 55 kWHONDA D13B1 1343 cc 55 kWHONDA D13B2 1343 cc 55 kWHONDA CIVIC II Shuttle (EE) 1.4 i 16V (EE1) 1396 cc 66 kWHONDA CIVIC IV Hatchback (EC, ED, EE) 1.4 L (EC9) 1396 cc 66 kWHONDA CIVIC IV Saloon (ED) 1.4 L (ED2) 1396 cc 66kwHONDA CONCERTO (HW, MA)1.4 1396cc 66kwHONDA CONCERTO (HW, MA)1.4 1396cc 61kwHONDA CONCERTO Saloon (HWW)1.4 1396cc 66kwHONDA CONCERTO Saloon (HWW)1.4 1396cc 61kwHONDA D14A1 1396cc 61kwHONDA D14A8 1396cc 66kwHONDA B15B9 1493cc 77kwHONDA CITY III Saloon (3A_, SX8)1.5 (CG3) 1493cc 77kwHONDA CITY Saloon1.5 (3A3) 1493cc 77kwHONDA CIVIC II Shuttle (EE)1.5 i 16V (EE2) 1493 cc 69 kW HONDA CIVIC IV Hatchback (EC, ED, EE) 1.5 i 16V (ED6) 1493 cc 66 kW HONDA CIVIC IV Hatchback (EC, ED, EE) 1.5 i 16V (ED6) 1493 cc 69 kW HONDA CIVIC IV Saloon (ED) 1.5 i 16V (ED3) 1493 cc 66 kW HONDA CIVIC IV Saloon (ED) 1.5 i 16V (ED3, SH4) 1493 cc 69 kW HONDA CIVIC V Coupe (EJ) 1.5 i LSi (EJ2) 1493 cc 74 kW HONDA CIVIC V Hatchback (EG) 1.5 i 16V (EG4) 1493 cc 66 kW HONDA CIVIC V Hatchback (EG) 1.5 i 16V (EG4) 1493cc 69kwHONDA CIVIC V Saloon (EG, EH)1.5 1493cc 66kwHONDA CIVIC V Saloon (EG, EH)1.5 (EG8) 1493cc 74kwHONDA CIVIC V Saloon (EG, EH)1.5 (EG8) 1493cc 67kwHONDA CIVIC V Saloon (EG, EH)1.5 i 16V (EG8) 1493cc 69kwHONDA CONCERTO (HW, MA)1.5 i 16V 1493cc 66kwHONDA CONCERTO Saloon (HWW)1.5 i 16V 1493cc 66kwHONDA D15B2 1493cc 61kwHONDA D15B3 1493cc 66kwHONDA D15B4 1493cc 72kwHONDA D15B7 1493cc 67kwHONDA D15Z1 1493cc 66kwHONDA D15Z2 1493cc 66kwHONDA CIVIC II Shuttle (EE)1.6 4x4 (EE4) 1590cc 85kwHONDA CIVIC II Shuttle (EE)1.6 i 16V 4WD (EE4) 1590cc 81kwHONDA CIVIC II Shuttle (EE)1.6 i 16V 4WD (EE4) 1590cc 80kwHONDA CIVIC IV Hatchback (EC, ED, EE)1.6 i 16V 1590cc 91kwHONDA CIVIC IV Hatchback (EC, ED, EE)1.6 i 16V (ED7) 1590cc 96kwHONDA CIVIC IV Hatchback (EC, ED, EE)1.6 i 16V (ED7) 1590cc 81kwHONDA CIVIC IV Hatchback (EC, ED, EE)1.6 i 16V (ED7) 1590cc 80kwHONDA CIVIC IV Saloon (ED)1.6 16V 4x4 1590cc 79kwHONDA CIVIC IV Saloon (ED)1.6 i 16V (ED4) 1590cc 80kwHONDA CIVIC IV Saloon (ED)1.6 i 16V (ED4) 1590cc 96kwHONDA CIVIC IV Saloon (ED)1.6 i 16V (ED4) 1590cc 81kwHONDA CIVIC IV Saloon (ED)1.6 i 16V 4x4 1590cc 81kwHONDA CIVIC IV Saloon (ED)1.6 i 16V 4x4 (EE5) 1590cc 80kwHONDA CONCERTO (HW, MA)1.6 16V 1590cc 78kwHONDA CONCERTO (HW, MA)1.6 i 16V 1590cc 82kwHONDA CONCERTO (HW, MA)1.6 i 16V (HW) 1590cc 90kwHONDA CONCERTO Saloon (HWW)1.6 16V 1590cc 78kwHONDA CONCERTO Saloon (HWW)1.6 i 16V 1590cc 90kwHONDA CONCERTO Saloon (HWW)1.6 i 16V 1590cc 82kwHONDA CRX II (ED, EE)1.6 i 16V 1590cc 79kwHONDA D16A 1590cc 79kwHONDA D16A6 1590cc 79kwHONDA D16A7 1590cc 85kwHONDA D16A8 1590cc 90kwHONDA D16A9 1590cc 96kwHONDA D16Z1 1590cc 81kwHONDA D16Z2 1590cc 78kwHONDA D16Z4 1590cc 90kwROVER 200 II Hatchback (XW)216 GSi 1590cc 85kwROVER 200 II Hatchback (XW)216 GSi 1590cc 82kwROVER 400 II (XW)416 GSI 1590cc 82kwROVER 400 II (XW)416 GSI/GSE 1590cc 85kwROVER 400 Tourer (XW)1.6 i 1590cc 82kwROVER D 16 A7 1590cc 85kwROVER D 16 Z2 1590cc 82kw
