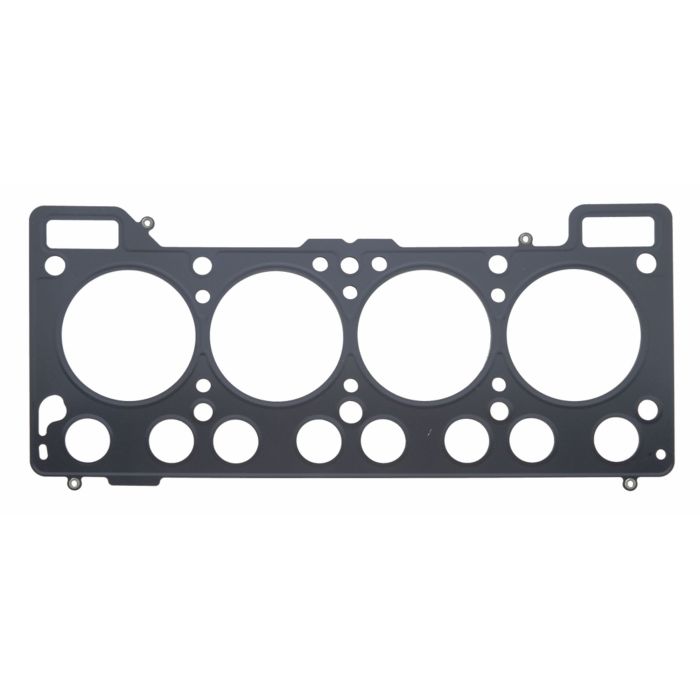

Athena MLS cylinder head gasket for Renault 9 / 11 / 18 / 19 / 21 / Super 5 / Rapid / Volvo 340-360 1.8mm 77mm 338249R

ATHENA Multi-Layer Steel (MLS) Gasket

Material
ATHENA MLS gaskets feature a combination of 3 to 5 layers made from different types of raw materials.

The combination of outer and inner layers is designed to provide superior standard compression performance, and the type of steel used can vary depending on engine requirements.
Athena MLS gaskets provide uniform clamp load across the entire sealing surface to compensate for any cylinder bore distortion.

The Athena MLS gasket is the ideal solution for both aluminum cylinder heads with cast iron blocks and aluminum cylinder heads with aluminum blocks.

Manufacturing process
Newly designed Athena MLS head gaskets are made from high-quality, high-strength 301 stainless steel.
Each layer is individually formed by state-of-the-art laser cutting and embossed with an optimized forming process.
Two layers of the head gasket undergo a stress relief process to significantly reduce stress induced by embossing.
After the stress relief process, a proprietary two-component polymer coating is applied, ensuring uniform coverage of the outer layers, without interruptions in the coating. This process ensures micro-sealing of engine coolant and oil fluids.

Athena MLS gaskets are tested and analyzed on engine test benches and in endurance tests.

Gas Stopper Technology

Gas Stopper Technology is a key factor in the design of competition MLS head gaskets. The stainless steel stopper layer incorporates an innovative active folding system that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. The gas stopper is located around the combustion chamber, allowing for a firmer fit between the cylinder head and the engine block, preventing gas leaks.

This also prevents component deformation due to faster equalization of their temperature. Benefits

Superior sealing properties under high pressure conditions

Increased elasticity and consistent load resistance

Optimized load balance

Improved engine performance

Increased durability

Proprietary coating technology

Our two-component polymer coating is applied after the stress relief process and ensures uniform coverage of the outer layers, without interruptions in the coating. This process ensures micro-sealing of engine coolant/oil fluids and meets the demands of various harsh environments.

The first layer is a high-temperature compound that conforms to surface irregularities of the engine block and cylinder head. (Typical MLS head gaskets require a 30 Ra surface finish, while Athena's seal surface finishes up to 60 Ra).

The second layer is easily removable and does not stick to contact surfaces when disassembling the engine.
Compatible with:
RENAULT 11 (B/C37_) 1.2 (B37S, C375) 1237 cc 40 kW; RENAULT 19 I Chamade (L53_) 1.2 1237 cc 40 kW; RENAULT 9 (L42_) 1.2 (L42S) 1237 cc 40 kW; RENAULT C1G 700 1237 cc 40 kW; RENAULT C1G 710 1237 cc 40 kW; RENAULT C1G 730 1237 cc 40 kW; RENAULT 19 I (B/C53_) 1.4 Cat (B/C532) 1390 cc 43 kW; RENAULT 19 I Chamade (L53_) 1.4 (L532, L53P) 1390 cc 43 kW; RENAULT 19 II (B/C53_)1.4 (B/C532) 1390cc 43kwRENAULT 19 II Chamade (L53_)1.4 1390cc 44kwRENAULT 19 II Chamade (L53_)1.4 (532) 1390cc 43kwRENAULT C3J 710 1390cc 43kwRENAULT C3J 760 1390cc 43kwRENAULT C3J 762 1390cc 43kwRENAULT RAPID MPV Van (F40_, G40_) | EXTRA | EXPRESS1.4 Cat (F407) 1390cc 43kwRENAULT SUPER 5 (B/C40_)1.4 Cat (B/C/407) 1390cc 43kwRENAULT 11 (B/C37_)1.4 (B/C372, B/C37C) 1397cc 44kwRENAULT 11 (B/C37_)1.4 (B/C373) 1397cc 50kwRENAULT 11 (B/C37_)1.4 (B/C373) 1397cc 53kwRENAULT 11 (B/C37_)1.4 (B/C373, B/C37R) 1397cc 49kwRENAULT 18 (134_)1.4 (1340) 1397cc 47kwRENAULT 18 Variable (135_)1.4 (1350) 1397cc 47kwRENAULT 19 I (B/C53_)1.4 (B/C53P) 1397cc 43kwRENAULT 21 (B48_)1.4 (B48D) 1397cc 51kwRENAULT 21 Saloon (L48_)1.4 (L48D) 1397cc 51kwRENAULT 5 (122_)1.4 (1229, 1399) 1397cc 46kwRENAULT 5 (122_)1.4 Automatic (1229, 1399) 1397cc 43kwRENAULT 847 700 1397cc 35kwRENAULT 847 701 1397cc 35kwRENAULT 847 712 1397cc 42kwRENAULT 847 720 1397cc 47kwRENAULT 847 722 1397cc 47 kW RENAULT 847 725 1397 cc 43 kW RENAULT 9 (L42_)1.4 (L422, L42C) 1397 cc 44 kW RENAULT 9 (L42_)1.4 (L423) 1397 cc 53 kW RENAULT 9 (L42_)1.4 (L423, L42R) 1397 cc 49 kW RENAULT 9 (L42_)1.4 Automatic (L423) 1397 cc 50 kW RENAULT C1J 700 1397 cc 35 kW RENAULT C1J 715 1397 cc 44 kW RENAULT C1J 742 1397 cc 43 kW RENAULT C1J 768 1397 cc 39 kW RENAULT C1J 780 1397cc 43kw RENAULT C1J 792 1397cc 44kw RENAULT C1J 796 1397cc 44kw RENAULT C2J 700 1397cc 52kw RENAULT C2J 713 1397cc 46kw RENAULT C2J 717 1397cc 53kw RENAULT C2J 718 1397cc 49kw RENAULT C2J 720 1397cc 43kw RENAULT C2J 730 1397cc 44kw RENAULT C2J 755 1397cc 53kw RENAULT C2J 757 1397cc 49kw RENAULT C2J 766 1397cc 49kw RENAULT C2J 767 1397 cc 49 kW RENAULT C2J 768 1397 cc 49 kW RENAULT C2J 770 1397 cc 51 kW RENAULT C2J 772 1397 cc 43 kW RENAULT C2J 780 1397 cc 52 kW RENAULT C2J 781 1397 cc 52 kW RENAULT C2J 782 1397 cc 49 kW RENAULT C2J 784 1397 cc 44 kW RENAULT C2J 788 1397 cc 52 kW RENAULT C2J 789 1397 cc 52 kW RENAULT C2J 798 1397 cc 52 kW RENAULT C3J 700 1397 cc 43 kW RENAULT C3J 702 1397 cc 43kw RENAULT FUEGO (136_) 1.4 TL/GTL 1397cc 47kw RENAULT RAPID MPV Van (F40_, G40_) | EXTRA | EXPRESS 1.4 (F402) 1397cc 43kw RENAULT RAPID MPV Van (F40_, G40_) | EXTRA | EXPRESS 1.4 (F40M) 1397cc 44kw RENAULT SUPER 5 (B/C40_) 1.4 (B/C402) 1397cc 43kw RENAULT SUPER 5 (B/C40_) 1.4 (B/C403) 1397cc 52kw RENAULT SUPER 5 (B/C40_) 1.4 (B/C40J) 1397cc 49kw RENAULT SUPER 5 (B/C40_)1.4 (B/C40M) 1397cc 44kwRENAULT SUPER 5 Hatchback Van (S40_)1.4 1397cc 44kwRENAULT TRAFIC Bus (T_, P_, V_)1.4 1397cc 35kwRENAULT TRAFIC Platform/Chassis (T_, P_, V_)1.4 1397cc 35kwRENAULT TRAFIC Van (T_, P_, V_)1.4 1397cc 35kwRENAULT TRAFIC Van (T_, P_, V_)1.4 1397cc 35kwVOLVO 340-360 (343, 345)1.4 1397cc 52kwVOLVO 340-360 (343, 345)1.4 1397cc 51 kW VOLVO 340-360 (343, 345) 1.4 1397 cc 51 kW VOLVO 340-360 (343, 345) 1.4 1397 cc 50 kW VOLVO 340-360 (343, 345) 1.4 1397 cc 46 kW VOLVO 340-360 (343, 345) 1.4 1397 cc 47 kW VOLVO 340-360 Saloon (344) 1.4 1397 cc 53 kW VOLVO 340-360 Saloon (344) 1.4 1397 cc 50 kW VOLVO 340-360 Saloon (344) 1.4 1397 cc 51 kW VOLVO B 14.3 E 1397 cc VOLVO B 14.4 S 1397cc 50 kW, 46 kW
