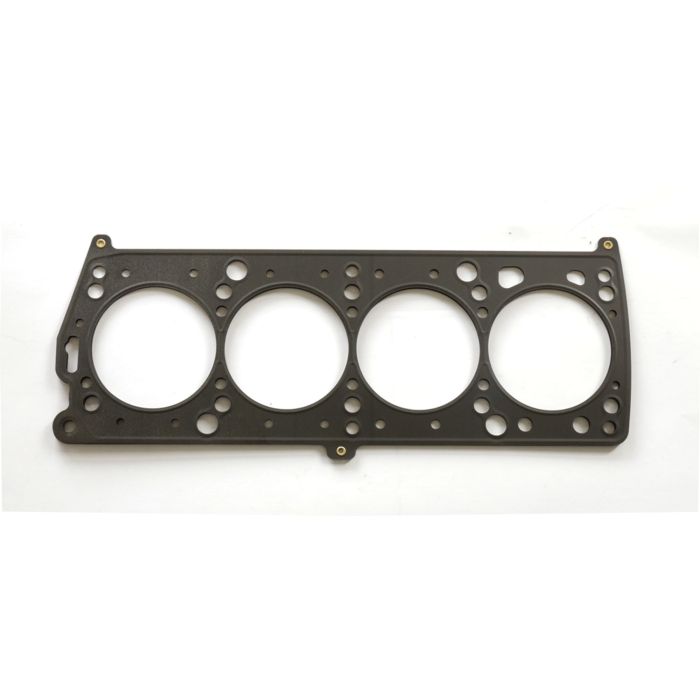

Athena MLS Cylinder Head Gasket for Fiat 124 / 131 / 132 / Seat 132 / Lancia Beta / Delta / Prism / Trevi 1.3 mm 85.5 mm 338412R

ATHENA Multi-Layer Steel (MLS) Gasket

Material
ATHENA MLS gaskets feature a combination of 3 to 5 layers made from different types of raw materials.

The combination of outer and inner layers is designed to offer superior standard compression performance, and the type of steel used may vary depending on engine requirements.
Athena MLS gaskets provide a uniform torque load across the entire sealing surface to compensate for any cylinder deformation.

The Athena MLS gasket is the ideal solution for both aluminum cylinder heads with cast iron blocks and aluminum cylinder heads with aluminum blocks.

Manufacturing Process
Newly designed Athena MLS cylinder head gaskets are manufactured from high-quality, high-hardness 301 stainless steel.
Each layer is individually formed using state-of-the-art laser cutting and embossed with an optimized forming process.
Two layers of the cylinder head gasket undergo a stress-relief process to significantly reduce the stress induced by embossing.
After the stress-relief process, a patented two-component polymeric coating is applied, ensuring uniform coverage of the outer layers, without interruptions in the coating. This process ensures micro-sealing of engine coolant and oil fluids.

Athena MLS gaskets are tested and analyzed on engine test benches and in endurance tests.

Gas Stopper Technology

Gas Stopper technology is a key factor in the design of competition MLS cylinder head gaskets. The stainless steel stopper layer incorporates an innovative active folding system that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. The gas stopper is located around the combustion chamber, allowing for a tighter fit between the cylinder head and the engine block, preventing gas leaks.

This also prevents component deformation due to faster temperature equalization. Benefits

Superior sealing properties under high pressure conditions

Increased elasticity and constant load resistance

Optimized load balancing

Improved engine performance

Increased durability

Patented Coating Technology

Our two-component polymer coating is applied after the stress-relief process and ensures uniform coverage of the outer layers, without interruptions in the coating. This process ensures micro-sealing of coolant/engine oil fluids and meets the demands of various harsh environments.

The first layer is a high-temperature compound that adapts to surface irregularities of the engine block and cylinder head. (Typical MLS cylinder head gaskets require a 30 Ra surface finish, while Athena's seal surface finishes up to 60 Ra).

The second layer is easily removable and does not adhere to contact surfaces when disassembling the engine.
Fits:
FIAT 131 (131_)1.6 Super 1585cc 71kwFIAT 131 C3.000 1585cc 71kwFIAT 131 Familiare/Panorama (131_)1.6 Super 1585cc 72kwFIAT 132 (132_)1.6 1585cc 66kwFIAT 132 C6.000 1585cc 66kwFIAT 132 D.000 1585cc 66kwFIAT 138 AR.000 1585cc 66kwFIAT ARGENTA (132_)1600 1585cc 72kwFIAT ARGENTA (132_)1600 i.e. 1585cc 66kwFIAT RITMO (138_) | STRADA1.6 1585 cc 77 kW FIAT 124 Coupe (124_)1800 Sport 1756 cc 82 kW FIAT 124 Coupe (124_)1800 Sport (CC1) 1756 cc 87 kW FIAT 124B21 1756 cc 65 kW FIAT 132 (132_)1.7 Special (A1) 1756 cc 77 kW FIAT 132 B1.000 1756 cc 77 kW FIAT 131 (131_)2.0 Super 1995 cc 83 kW FIAT 131 C4.000 1995 cc 83 kW FIAT 132 (132_)2.0 1995 cc 83 kW FIAT 132 (132_)2.0 (132A) 1995 cc 84 kW FIAT 132 C2.000 1995 cc 82 kW FIAT 132 D1.000 1995 cc 83 kW FIAT ARGENTA (132_)2000 1995 cc 83 kW LANCIA 828 B.000 1585 cc 74 kW LANCIA 831 A4.000 1585 cc 77 kW LANCIA BETA Coupe (828_)1600 (828BC0) 1585 cc 74 kW LANCIA BETA Saloon (828_)1600 (828DB1) 1585 cc 74 kW LANCIA DELTA I (831_)1.6 GT (831AB.06) 1585 cc 77 kW LANCIA PRISMA (831_)1.6 (831AB) 1585 cc 77kwLANCIA TREVI (828_)1600 (828DB03) 1585cc 74kwLANCIA BETA Coupe (828_)2000 (828BC_) 1991cc 85kwLANCIA 828 B1.000 1995cc 85kwLANCIA 828 B4.000 1995cc 90kwLANCIA BETA HPE. (828_) | BETAH.P.E.2000 (828.BF) 1995cc 88kwLANCIA BETA H.P.E. (828_) | BETAH.P.E.2000 (828.BF) 1995cc 85kwLANCIA BETA H.P.E. (828_) | BETAH.PE2000 i.e. (828BF) 1995 cc 90 kW LANCIA BETA (828_)2000 (828CB1) 1995 cc 85 kW LANCIA BETA Coupe (828_)2000 (828.BC) 1995 cc 88 kW LANCIA BETA Coupe (828_)2000 i.e. (828.BC) 1995 cc 90 kW LANCIA BETA Saloon (828_)2000 (828CB1) 1995 cc 88 kW LANCIA BETA Spider (828_)2000 (828BS1) 1995 cc 85 kW LANCIA BETA Spider (828_)2000 (828BS1) 1995 cc 88 kW LANCIA TREVI (828_)2000 i.e. (828DB13) 1995 cc 90 kW SEAT 132 (132A) 1.8 1756 cc 77 kW SEAT 132A000 1756 cc 77 kW
