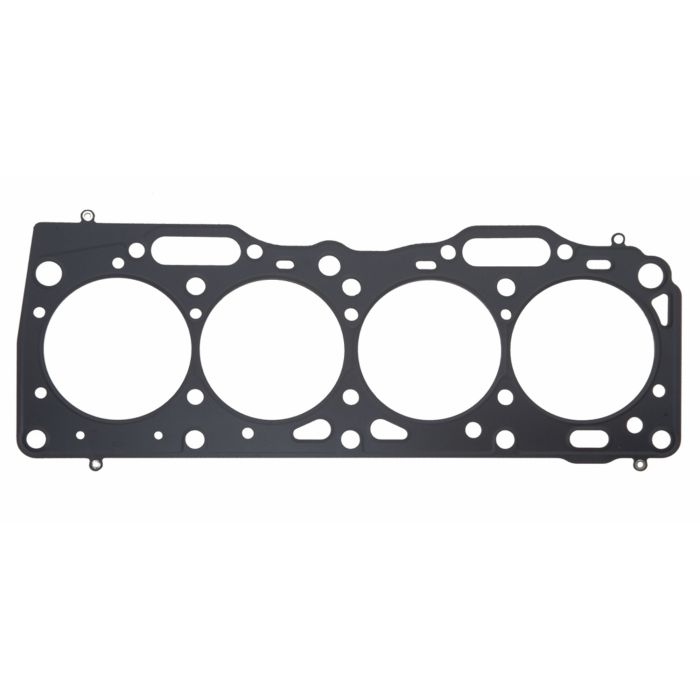

Athena MLS Head Gasket for Citroën Jumpy / Fiat Fiorino / Punto / Tipo / Uno / Lancia Dedra / Peugeot Expert 1.3 mm 88 mm 338251R

ATHENA Multi-Layer Steel (MLS) Gasket

Material
ATHENA MLS gaskets feature a combination of 3 to 5 layers made from different types of raw materials.

The combination of outer and inner layers is designed to offer superior standard compression performance, and the type of steel used may vary depending on engine requirements.
Athena MLS gaskets provide uniform torque load across the entire sealing surface to compensate for any cylinder deformation.

The Athena MLS gasket is the ideal solution for both aluminum cylinder heads with cast iron blocks and aluminum cylinder heads with aluminum blocks.

Manufacturing Process
Newly designed Athena MLS cylinder head gaskets are manufactured from high-quality, high-hardness 301 stainless steel.
Each layer is individually formed by state-of-the-art laser cutting and embossed with an optimized forming process.
Two layers of the cylinder head gasket undergo a stress-relief process to significantly reduce stress induced by embossing.
After the stress-relief process, a patented two-component polymeric coating is applied, ensuring uniform coverage of the outer layers, without interruptions in the coating. This process ensures micro-sealing of coolant and engine oil fluids.

Athena MLS gaskets are tested and analyzed on engine test benches and endurance tests.

Gas Stopper Technology

Gas Stopper technology is a key factor in the design of competition MLS cylinder head gaskets. The stainless steel stopper layer incorporates an innovative active folding system that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. The gas stopper is located around the combustion chamber, allowing for a tighter fit between the cylinder head and the engine block, preventing gas leaks.

This also prevents component deformation due to faster temperature equalization. Benefits

Superior sealing properties under high pressure conditions

Increased elasticity and constant load resistance

Optimized load balance

Improved engine performance

Increased durability

Patented coating technology

Our two-component polymer coating is applied after the stress-relief process and ensures uniform coverage of the outer layers, without interruptions in the coating. This process ensures the micro-sealing of coolant/engine oil fluids and meets the demands of various harsh environments.

The first layer is a high-temperature compound that conforms to irregularities in the engine block and cylinder head surfaces. (Typical MLS cylinder head gaskets require a surface finish of 30 Ra, while Athena's seal surface finishes up to 60 Ra).

The second layer is easily removable and does not adhere to contact surfaces during engine disassembly.
Compatible with:
CITROËN 1580 SPI 1581cc 58kwCITROËN 220 A2.000 1581cc 59kwCITROËN JUMPY I (U6U_) | DISPATCH1.6 1581cc 58kwCITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) | DISPATCH1.6 i 1581cc 58kwFIAT 146 B7.011 1581cc 59kwFIAT 146 C6.000 1581cc 52kwFIAT 146 D6.000 1581cc 55kwFIAT 159 A3.000 1581cc 62kwFIAT 159 A3.046 1581cc 56kwFIAT 159 A3.048 1581cc 51kwFIAT 159 B9.000 1581cc 63kwFIAT 160 A2.000 1581cc 58kwFIAT 160 A2.011 1581cc 60kwFIAT 176 A9.000 1581cc 65kwFIAT 220 A 2.000 1581cc 58kwFIAT 835 C1.000 1581cc 55kwFIAT FIORINO MPV (146_)1.6 iE (146RC, 146RF) 1581cc 55kwFIAT FIORINO MPV Van (146_)75 i.e. 1.6 1581cc 55kwFIAT FIORINO Pick up (146_)1.6 1581cc 55kwFIAT PREMIO (146_)1.6 1581cc 62kwFIAT PREMIO (146_)1.6 ie 1581cc 60kwFIAT PUNTO (176_)1.6 1581cc 65kwFIAT PUNTO Convertible (176_)90 1.6 1581cc 65kwFIAT SCUDO Bus (220_)1.6 1581cc 58kwFIAT SCUDO Platform/Chassis (220_)1.6 1581cc 58kwFIAT SCUDO Van (220_)1.6 1581cc 58kwFIAT TEMPRA (159_)1.6 (159.AD) 1581cc 63kwFIAT TEMPRA (159_)1.6 ie (159.AE) 1581cc 57kwFIAT TEMPRA (159_)1.6 i.e. (159.AJ) 1581cc 66kwFIAT TEMPRA (159_)1.6 i.e. (159.AJ) 1581cc 63kwFIAT TEMPRA (159_)1.6 i.e. (159.AS, 159.AT) 1581cc 55kwFIAT TEMPRA S.W. (159_)1.6 1581cc 63kwFIAT TEMPRA S.W. (159_)1.6 i.e. (159.AE) 1581cc 57kwFIAT TEMPRA S.W. (159_)1.6 i.e. (159.AJ) 1581cc 66kwFIAT TEMPRA S.W. (159_)1.6 ie (159.AS, 159.AT) 1581cc 55kwFIAT TEMPRA S.W. (159_) | MARENGO1.6 (159AE) 1581cc 57kwFIAT TIPO (160_)1.6 (160.AE) 1581cc 61kwFIAT TIPO (160_)1.6 ie (160.A1, 160.EC, 160.EB) 1581cc 55kwFIAT TIPO (160_)1.6 ie (160.AF) 1581cc 57kwFIAT UNO (146_, 158_)1.6 1581cc 65kwFIAT UNO (146_, 158_)1.6 R 1581cc (146EO, 146ER) 1580cc 55kwLANCIA 159 B9.000 1581cc 66kwLANCIA 835 A1.000 1581cc 65kwLANCIA 835 A1.046 1581cc 57kwLANCIA 835 C1.000 1581cc 55kwLANCIA DEDRA (835_)1.6 LE Cat (835EB) 1581cc 66kwLANCIA DEDRA (835_)1.6 ie (835AA) 1581cc 66kwLANCIA DEDRA (835_)1.6 ie (835AB) 1581cc 57kwLANCIA DEDRA (835_)1.6 ie (835AN) 1581cc 55kwLANCIA DEDRA SW (835_)1.6 (835EB) 1581cc 66kwLANCIA DELTA II (836_)1.6 ie (836AD) 1581cc 55kwPEUGEOT 222A2 (1580 SPI) 1581cc 58kwPEUGEOT EXPERT (224_)1.6 1581cc 58kwPEUGEOT EXPERT Platform/Chassis (223)1.6 1581cc 58kwPEUGEOT EXPERT Van (222)1.6 1581cc 58kw
