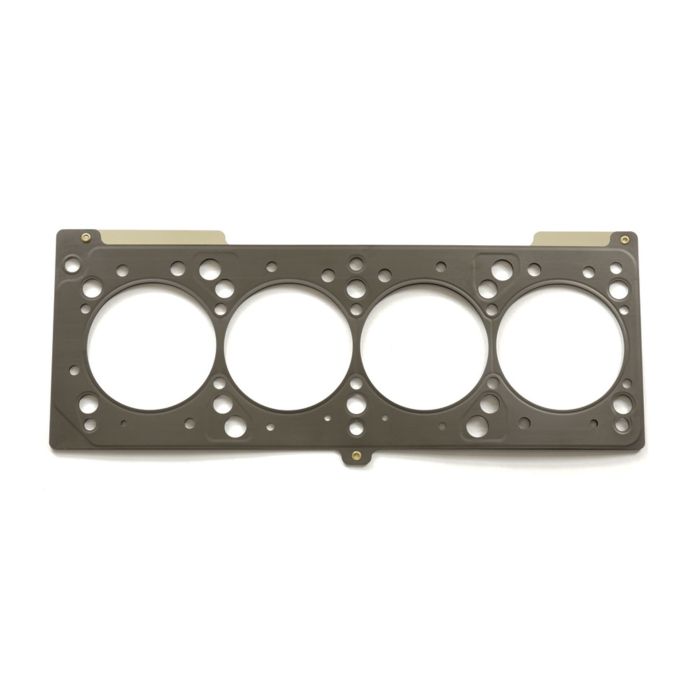

Athena MLS Head Gasket for Alfa Romeo 155 / 164 / Fiat Tipo / Croma / Lancia / Thema / Delta 0.65 mm 86 mm 338398R

ATHENA Multi-Layer Steel (MLS) Gasket

Material
ATHENA MLS gaskets feature a combination of 3 to 5 layers made from different types of raw materials.

The combination of outer and inner layers is designed to offer superior standard compression performance, and the type of steel used may vary depending on engine requirements.
Athena MLS gaskets provide a uniform torque load across the entire sealing surface to compensate for any cylinder deformation.

The Athena MLS gasket is the ideal solution for both aluminum cylinder heads with cast iron blocks and aluminum cylinder heads with aluminum blocks.

Manufacturing Process
Newly designed Athena MLS cylinder head gaskets are manufactured from high-quality, high-hardness 301 stainless steel.
Each layer is individually formed using state-of-the-art laser cutting and embossed with an optimized forming process.
Two layers of the cylinder head gasket undergo a stress-relief process to significantly reduce the stress induced by the embossing.
Following the stress-relief process, a proprietary two-component polymer coating is applied, ensuring uniform coverage of the outer layers, without interruptions in the coating. This process ensures the micro-sealing of engine coolant and oil fluids.

Athena MLS gaskets are tested and analyzed on engine test benches and in endurance tests.

Gas Stopper Technology

Gas Stopper technology is a key factor in the design of competition MLS cylinder head gaskets. The stainless steel stopper layer incorporates an innovative active folding system that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. The gas stopper is located around the combustion chamber, allowing for a firmer fit between the cylinder head and the engine block, preventing gas leaks.

This also prevents component deformation due to faster temperature equalization. Benefits

Superior sealing properties under high-pressure conditions

Increased elasticity and constant load resistance

Optimized load balance

Improved engine performance

Increased durability

Proprietary Coating Technology

Our two-component polymer coating is applied after the stress-relief process and ensures uniform coverage of the outer layers, without interruptions in the coating. This process ensures the micro-sealing of coolant/engine oil fluids and meets the demands of various harsh environments.

The first layer is a high-temperature compound that conforms to the surface irregularities of the engine block and cylinder head. (Typical MLS head gaskets require a 30 Ra surface finish, while Athena's seal surface finishes up to 60 Ra).

The second layer peels off easily and does not adhere to contact surfaces during engine disassembly.
Compatible with:

ALFAROMEO 155 (167_)2.0 16V Turbo Q4 (167.A2B, 167.A2C, 167.A2E) 1995 cc 140 kW
ALFAROMEO 155 (167_)2.0 16V Turbo Q4 (167.A2B, 167.A2C, 167.A2E) 1995 cc 137 kW
ALFAROMEO 164 (164_)2.0 Turbo (164A2B) 1995 cc 128 kW
ALFAROMEO 164 (164_)2.0 Turbo (164A2B) 1995 cc 129 kW
ALFAROMEO AR 06476 1995 cc 128 kW
ALFAROMEO AR 67203 1995 cc 137kwFIAT 149 C2.000 1595cc 66kwFIAT REGATA (138_)90 i.e. 1.6 1595cc 66kwFIAT REGATA Weekend (138_)90 i.e. 1.6 1595cc 66kwFIAT 183 A1.000 1747cc 92kwFIAT COUPE (175_)1.8 16V 1747cc 96kwFIAT 159 A4.000 1756cc 74kwFIAT 159 A4.046 1756cc 77kwFIAT 160 A5.000 1756cc 100kwFIAT 835 C2.000 1756cc 76kwFIAT 835 C4.000 1756cc 66kwFIAT 836 A5.000 1756cc 71kwFIAT TEMPRA (159_)1.8 i.e (159.AN) 1756cc 77kwFIAT TEMPRA (159_)1.8 i.e (159.AN) 1756cc 81kwFIAT TEMPRA (159_)1.8 i.e. (159.AV) 1756cc 76kwFIAT TEMPRA (159_)1.8 i.e (159.AZ) 1756cc 66kwFIAT TEMPRA (159_)1.8 i.e (159.BY) 1756cc 74kwFIAT TEMPRA S.W. (159_)1.8 i.e (159.AM) 1756cc 81kwFIAT TEMPRA S.W. (159_)1.8 i.e (159.AN) 1756cc 77kwFIAT TEMPRA S.W. (159_)1.8 i.e (159.AV) 1756cc 76kwFIAT TEMPRA S.W. (159_)1.8 i.e (159.AZ) 1756cc 66kwFIAT TEMPRA S.W. (159_)1.8 i.e (159.BY) 1756cc 74kwFIAT TIPO (160_)1.8 i.e 1756cc 71kwFIAT TIPO (160_)1.8 i.e 1756cc 66kwFIAT TIPO (160_)1.8 i.e 1756cc 81kwFIAT TIPO (160_)1.8 i.e (160.AY) 1756cc 77kwFIAT TIPO (160_)1.8 i.e (160.ED) 1756cc 76kwFIAT TIPO (160_)1.8 i.e (160.EQ, 160.AM) 1756cc 74kwFIAT TIPO (160_)1.8 i.e 16V Sport 1756cc 100kwFIAT 154 A1.000 1995cc 66kwFIAT 154 A2.000 1995cc 114kwFIAT 154 C3.000 1995cc 88kwFIAT 154 C3.046 1995cc 85kwFIAT 154 C4.046 1995cc 110kwFIAT 154 C5.000 1995cc 66kwFIAT 154 E1.000 1995cc 93kwFIAT 159 A5.046 1995cc 80kwFIAT 159 A6.046 1995cc 76kwFIAT 160 A8.046 1995cc 107kwFIAT 175 A1.000 1995cc 140kwFIAT 834 B.000 1995cc 88kwFIAT 834 B.048 1995cc 83kwFIAT 834 B.146 1995cc 85kwFIAT 834 C.146 1995cc 110kwFIAT 836 A3.000 1995cc 102kw FIAT COUPE (175_)2.0 16V 1995cc 102kw FIAT COUPE (175_)2.0 16V Turbo 1995cc 140kw FIAT CROMA (154_)2000 16V 1995cc 101kw FIAT CROMA (154_)2000 CHT 1995cc 74kw FIAT CROMA (154_)2000 CHT (154.AC) 1995cc 66kw FIAT CROMA (154_)2000 i.e. (154.AD) 1995cc 88kw FIAT CROMA (154_)2000 i.e. (154.AM) 1995cc 83kw FIAT CROMA (154_)2000 i.e. (154.AM, 154.LM) 1995 cc 85 kW FIAT CROMA (154_) 2000 i.e. Turbo 1995 cc 111 kW FIAT CROMA (154_) 2000 i.e. Turbo (154.AM) 1995 cc 114 kW FIAT CROMA (154_) 2000 i.e. Turbo (154.AM, 154.LM) 1995 cc 110 kW FIAT TEMPRA (159_) 2.0 1995 cc 80 kW FIAT TEMPRA (159_) 2.0 i.e. (159.AP) 1995 cc 83 kW FIAT TEMPRA S.W. (159_) 2.0 1995 cc 80 kW FIAT TEMPRA S.W. (159_) 2.0 i.e (159.AP) 1995cc 83kwFIAT TEMPRA S.W. (159_)2.0 i.e. 4x4 (159.AP) 1995cc 83kwFIAT TIPO (160_)2.0 1995cc 85kwFIAT TIPO (160_)2.0 16V (160.AV) 1995cc 107kwFIAT TIPO (160_)2.0 i.e (160.AJ, 1607571) 1995cc 80kwFIAT TIPO (160_)2.0 i.e (160.AT, 160.AJ) 1995cc 83kwFIAT TIPO (160_)2.0 i.e 16V Sport (160.EF) 1995cc 102 kW LANCIA 149 C2.000 1585 cc 66 kW LANCIA 831 B3.000 1585 cc 103 kW LANCIA 831 B6.000 1585 cc 71 kW LANCIA 831 B7.000 1585 cc 80 kW LANCIA 831 B7.046 1585 cc 97 kW LANCIA DELTA I (831_) 1.6 GT i.e. (831AB.010) 1585 cc 66 kW LANCIA DELTA I (831_) 1.6 GT i.e. (831AB.016) 1585 cc 80 kW LANCIA DELTA I (831_) 1.6 HF Turbo (831AB.020) 1585 cc 103 kW LANCIA DELTA I (831_) 1.6 HF Turbo (831AB.020S) 1585cc 97kwLANCIA PRISMA (831_)1.6 (831AB) 1585cc 73kwLANCIA PRISMA (831_)1.6 i.e (831AB) 1585cc 80kwLANCIA PRISMA (831_)1.6 i.e Super (831AB) 1585cc 66kwLANCIA 835 A2.000 1756cc 80kwLANCIA 835 A2.046 1756cc 74kwLANCIA 835 C2.000 1756cc 76kwLANCIA 835 C4.000 1756cc 66kwLANCIA 835 C5.000 1756cc 66kwLANCIA 836 A5.000 1756cc 74kwLANCIA 836 A6.000 1756cc 66kwLANCIA 836 C4.000 1756cc 66kwLANCIA DEDRA (835_)1.8 i.e (835AC, 835BC) 1756cc 80kwLANCIA DEDRA (835_)1.8 i.e (835AT) 1756cc 66kwLANCIA DEDRA (835_)1.8 i.e (835BD, 835AD) 1756cc 77kwLANCIA DEDRA (835_)1.8 i.e (835FA) 1756cc 74kwLANCIA DEDRA SW (835_)1.8 i.e (835FA) 1756cc 74kwLANCIA DELTA II (836_)1.8 i.e, (836AE) 1756cc 76kwLANCIA DELTA II (836_)1.8 i.e, (836AG, 836AL) 1756cc 66kwLANCIA 175 A4.000 1995cc 142kwLANCIA 831 B4.000 1995cc 85kwLANCIA 831 C5.000 1995cc 133kwLANCIA 831 C5.046 1995cc 130kwLANCIA 831 D5.000 1995cc 144kwLANCIA 831 E5.000 1995cc 151kwLANCIA 831 E5.046 1995cc 155kwLANCIA 834 B.000 1995cc 88kwLANCIA 834 B.048 1995cc 83kwLANCIA 834 B.146 1995cc 85kwLANCIA 834 B1.000 1995cc 86kwLANCIA 834 B2.000 1995cc 108kwLANCIA 834 B2.246 1995cc 104kwLANCIA 834 C.146 1995cc 110kwLANCIA 834 C1.000 1995cc 133kwLANCIA 834 C1.246 1995cc 130kwLANCIA 834 F1.000 1995cc 110kwLANCIA 834 F2.000 1995cc 148kwLANCIA 835 A5.000 1995cc 86kwLANCIA 835 A5.046 1995cc 82kwLANCIA 835 A7.000 1995cc 121kwLANCIA 835 A7.046 1995cc 124kwLANCIA 835 A8.000 1995cc 130kwLANCIA 835 A8.046 1995cc 119kwLANCIA 836 A2.000 1995cc 137kwLANCIA 836 A3.000 1995cc 102kwLANCIA 838 A4.000 1995cc 151kwLANCIA DEDRA (835_)2.0 16V (835ED) 1995cc 102kwLANCIA DEDRA (835_)2.0 HF Integrale (835AP) 1995cc 124kwLANCIA DEDRA (835_)2.0 Turbo (835AQ) 1995cc 130kwLANCIA DEDRA (835_)2.0 i.e (835AI) 1995cc 86kwLANCIA DEDRA (835_)2.0 i.e (835AL) 1995cc 83kwLANCIA DEDRA (835_)2.0 i.e Turbo (835AR) 1995cc 119kwLANCIA DEDRA (835_)2.0 i.e Turbo Integrale (835AO) 1995cc 121kwLANCIA DEDRA SW (835_)2.0 16V (835ED) 1995cc 102kwLANCIA DEDRA SW (835_)2.0 Integrale (835ED) 1995cc 102kwLANCIA DELTA I (831_)2.0 16V HF Evo I Integrale (831.AB) 1995cc 154kwLANCIA DELTA I (831_)2.0 16V HF Evo II Integrale (831.AB) 1995cc 158kwLANCIA DELTA I (831_)2.0 16V HF Evo Integrale (831AB.000) 1995cc 151kwLANCIA DELTA I (831_)2.0 16V HF Evo Integrale (831AB.027) 1995cc 155kwLANCIA DELTA I (831_)2.0 16V HF Integrale (831AB.026) 1995cc 144kwLANCIA DELTA I (831_)2.0 HF Integrale (831AB.024) 1995 cc 133 kW LANCIA DELTA I (831_) 2.0 HF Integrale (831AB.024S, 831AB.028) 1995 cc 130 kW LANCIA DELTA II (836_) 2.0 16V (836AA, 836CA) 1995 cc 102 kW LANCIA DELTA II (836_) 2.0 16V Turbo (836AB) 1995 cc 137 kW LANCIA DELTA II (836_) 2.0 16V Turbo (836AS) 1995 cc 142 kW LANCIA KAPPA (838_) 2.0 16V Turbo (838AB1AA) 1995 cc 151 kW LANCIA KAPPA Coupé (838_) 2.0 16V Turbo (838CB) 1995 cc 151kwLANCIA KAPPA SW (838_)2.0 16V Turbo (838BB1AA) 1995cc 151kwLANCIA PRISMA (831_)2.0 i.e. 4WD (831AB) 1995cc 85kwLANCIA THEMA (834_)2000 16V (834FA) 1995cc 112kwLANCIA THEMA (834_)2000 16V Turbo (834AC) 1995cc 133kwLANCIA THEMA (834_)2000 16V Turbo (834GC, 834FC) 1995cc 148kwLANCIA THEMA (834_)2000 i.e (834AB) 1995cc 86kwLANCIA THEMA (834_)2000 i.e. (834AB) 1995 cc 83 kW LANCIA THEMA (834_) 2000 i.e. (834B) 1995 cc 88 kW LANCIA THEMA (834_) 2000 i.e. (834BV) 1995 cc 85 kW LANCIA THEMA (834_) 2000 i.e. 16 V (834AA) 1995 cc 108 kW LANCIA THEMA (834_) 2000 i.e. 16 V (834AI) 1995 cc 104 kW LANCIA THEMA (834_) 2000 i.e. 16 V Turbo (834AL) 1995 cc 130 kW LANCIA THEMA (834_) 2000 i.e. Turbo (834CV) 1995 cc 110 kW LANCIA THEMA SW (834_)2000 16V (834FA) 1995cc 112kwLANCIA THEMA SW (834_)2000 Turbo (834.FA, 834.BV, 834.CV) 1995cc 110kwLANCIA THEMA SW (834_)2000 Turbo 16V (834GC, 834FC) 1995cc 148kwLANCIA THEMA SW (834_)2000 i.e. 16V (834AA) 1995cc 108kwLANCIA THEMA SW (834_)2000 i.e. 16V (834AI) 1995cc 104kwLANCIA THEMA SW (834_)2000 i.e. 16V Turbo (834AC) 1995cc 133 kW LANCIA THEMA SW (834_)2000 i.e. 16V Turbo (834AL) 1995 cc 130 kW
