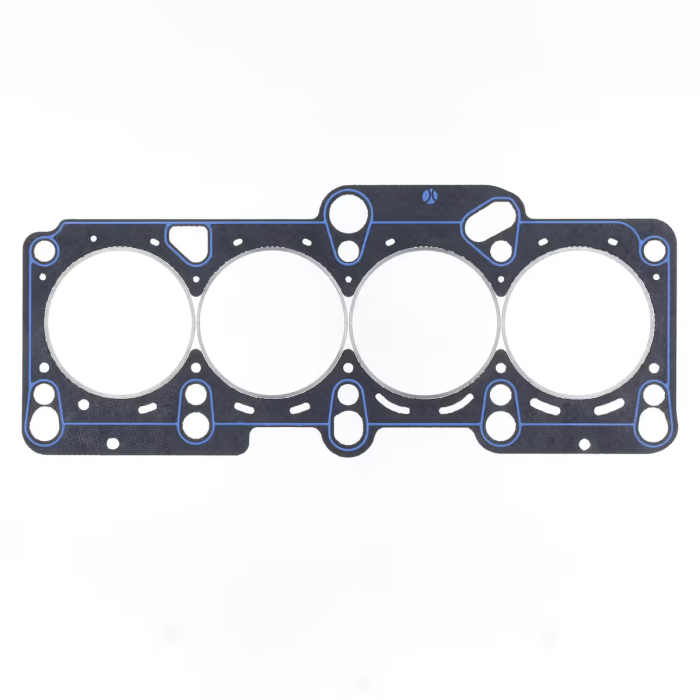

Athena Cut Ring Racing cylinder head gasket for Audi A3 8P1 A4 B7 Seat Leon 1P1 Skoda Octavia VW Volkswagen Golf VI 2.0 R / TFSI

The Athena Cut Ring Racing head gasket is the result of constant research and development to meet the growing demands for higher performance, maximum sealing, and resistance to the extreme thermal and mechanical stresses typical of motorsport and drag racing. With a thickness of 1.80 mm and a bore diameter of 83.50 mm, this gasket is designed for high-performance engines.

Main features:

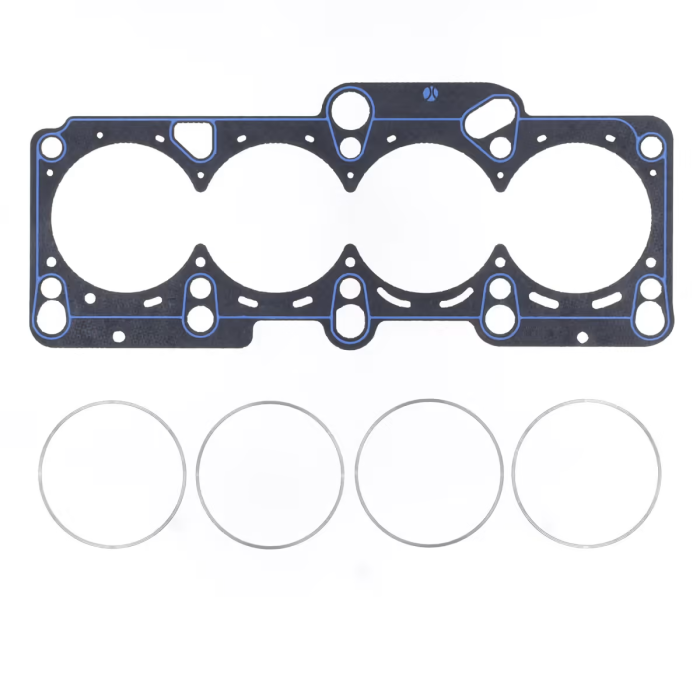

Cut Ring Technology: Combines excellent high-pressure sealing with independent recessed rings, known as Cooper rings, eliminating the need for irreversible modifications to the engine block for ring seats.

Reinforced gasket body: A steel core coated with two layers of asbestos-free aramid fiber, developed by Athena's R&D department, providing excellent thermal and mechanical resistance while maintaining perfect adaptability to the contact surfaces of the cylinder head and block.

Silicone seal: Applied in critical sealing areas, such as oil and coolant channels, to ensure maximum sealing reliability under all operating conditions.
Stainless steel support rings (AISI 304): Ensure maximum sealing capacity around the cylinders without loss of compression, even in engines with extreme applications such as nitrous oxide (NOS) or turbocharging, where boost pressure exceeds 2 bar. Specifications

Thickness: 1.80 mm Bore diameter: Ø 83.50 mm Material: Engine gasket with AISI 304 stainless steel cut rings

Application

Audi

AXX, BGB, BHZ, BPG, BPJ, BPY, BUL, BWA, BWE, BWT, BYK, BZC, CAWB, CBFA, CCTA, CCZA, CDLA, CDLB, CDLC, CDLH, CDMA

A1 (8X1, 8XK) 2.0 TFSI quattro — 2012

A3 / A3 Sportback (8P1, 8PA) 2.0 TFSI — 2004–2013 2.0 TFSI quattro — 2004–2013 S3 quattro — 2006–2013

A4 B7 / A4 B7 Avant (8EC, 8ED) 2.0 TFSI — 2004–2008 2.0 TFSI quattro — 2004–2008

A4 B7 Cabriolet (8HE) 2.0 TFSI — 2006–2009

A6 C6 / A6 C6 Avant (4F2, 4F5) 2.0 TFSI — 2005–2011

TT / TT Roadster (8J3, 8J9) 2.0 TFSI — 2006–2010
TTS quattro — 2008–2014

KTM

CDLA
X-Bow Roadster / Coupé

2.0 — 2010–2026

Seat

BWA, BWE, BWJ, CDLA, CDLD

Altea / Altea XL (5P1, 5P5, 5P8) 2.0 TFSI — 2006–2009
2.0 TFSI 4x4 — 2007–2009

Exeo / Exeo ST (3R2, 3R5)2.0 TFSI — 2009-2013
León (1P1)2.0 TFSI — 2005–20112.0 Cupra R — 2009–2012
Toledo III (5P2)2.0 TFSI — 2005-2009
Skoda
BWA, CCZA
Octavia II / Octavia II Combi (1Z3, 1Z5)
2.0 TFSI — 2005-2013
EOS (1F7, 1F8)2.0 TFSI — 2006-2015
volkswagen
AXX, BPY, BWA, BYD, CAWB, CBFA, CCTA, CCZA, CDLA, CDLC, CDLF, CDLG, CDLJ, CDLK, CRZA
Golf V / Golf V Variant (1K1, 1K5) 2.0 TFSI / GTI — 2004-2009
Golf VI (5K1)2.0 GTI — 2011–20122.0 R 4Motion — 2009–2013
Golf VI Cabrio (517)2.0 R — 2013–2016
Jetta III (1K2)2.0 TFSI — 2005-2010
Passat B6 / Passat B6 Variant (3C2, 3C5) 2.0 TFSI — 2005–2010
Polo V (6R1, 6C1)2.0 R WRC — 2013–2014
Scirocco III (137, 138) 2.0 R — 2009-2017
