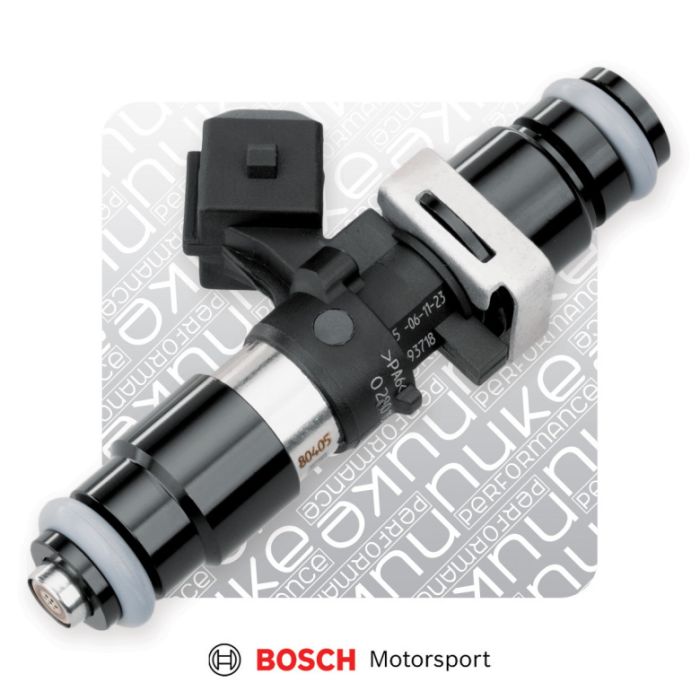

Bosch Nuke Performance 980cc 65mm EV14L Injector

Bosch 980cc high-impedance injector, adapted to 65mm (EV14L) for the Nuke Performance fuel rail range.

This injector includes the necessary accessories for a Bosch EV14L injector (60.65mm O-ring to O-ring / 65mm center to center O-rings).

High impedance 980cc injector from Bosch Motorsport

Length equivalent to a Bosch EV14L injector

Upper adapter with filter for increased protection

When ordering injectors, always check your fuel rail specifications to ensure the injector is suitable. Most Nuke Performance fuel rails use EV14L injectors, available from 630cc to 2200cc.
Specifications for the Bosch Motorsport 980cc injector:

Bosch Part Number

0280158040 / Bosch -040

OEM Part Number

0 280 158 040

Type - no adapters included
39mm EV14K (compact)

Type - with adapters included
65mm EV14L (long)

Connector
Bosch JPT EV1 Minitimer Jetronic

Upper/Lower O-ring
14mm Viton / 14mm Viton

Resistance
12 Ohms

Flow at 3 bar

980 cc/min = 670 g/min = 89 lb/hr at 3 bar

Fuel Compatibility
Gasoline / E85 / M100*

Nozzle / Spray Pattern
Extended tip / Single cone spray

For Motorsport Use
YES

Part No. / EAN
130-01-098 / 7340209508277

* Note: If using the injector with methanol, flush with regular gasoline after use. Do not leave methanol in the injector for extended periods.

Bosch 980cc injector capacity:

Testing conditions may differ from actual use due to technical and equipment factors. However, this information helps understand injector performance and choose other fuel system components.

Maximum static flow measured in a test environment

2 BAR (29 PSI)

720 cc/min = 69 lb/hr

3 BAR (43.5 PSI)

900 cc/min = 86 lb/hr

4 BAR (58 PSI)

1038 cc/min = 99 lb/hr

5 BAR (78.5 PSI)

1170 cc/min = 111 lb/hr

6 BAR (88 PSI)

1284 cc/min = 122 lb/hr

7 BAR (101.5 PSI)

1344 cc/min = 128 lb/hr

Gasoline (10% margin)

Turbocharged

Naturally aspirated

1 Cylinder

1 x 129 = 129 HP

1 x 168 = 168 HP

4 Cylinders

4 x 129 = 516 HP

4 x 168 = 672 HP

5 Cylinders

5 x 129 = 645 HP

5 x 168 = 840 HP

6 Cylinders

6 x 129 = 774 HP

6 x 168 = 1008 HP

8 Cylinders

8 x 129 = 1032 HP

8 x 168 = 1344 HP

E85 (10% margin)

Turbocharged

Naturally aspirated

1 Cylinder

1 x 112 = 112 HP

1 x 140 = 140 HP

4 Cylinders

4 x 112 = 448 HP

4 x 140 = 560 HP

5 Cylinders

5 x 112 = 560 HP

5 x 140 = 700 HP

6 Cylinders

6 x 112 = 672 HP

6 x 140 = 840 HP

8 Cylinders

8 x 112 = 896 HP

8 x 140 = 1120 HP

Injector Calculation: The figures above are based on a base pressure of 3 bar (43.5 psi) at idle, providing an overview of this injector's performance.
Bosch 980cc, 65mm (EV14L) injector includes:

1 Bosch Motorsport Injector (P/N 0280158040)

1 Short 14mm Injector Adapter with Filter (P/N 135-01-101)

1 Short 14mm Injector Adapter without Filter (P/N 135-01-102)

1 Bosch Injector Clip (P/N 135-01-005)

Optional flow matching for optimized performance and even fuel delivery in high-performance applications. We offer all our injectors matched in 4, 5, 6, and 8-pack kits. Matched injectors ensure even fuel delivery, optimizing performance, efficiency, and smoothness. Standard injectors can have flow variations, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or modified engines where precision in fuel delivery is critical.

Bosch 980cc, 65mm (EV14L) injector, 4-pack, flow matched. Part No.: 130-04-098

Bosch 980cc, 65mm (EV14L) injector, 5-pack, flow matched. Part No.: 130-05-098

Bosch 980cc, 65mm (EV14L) injector, 6-pack, flow matched. Part No.: 130-06-098

Bosch 980cc, 65mm (EV14L) injector, 8-pack, flow matched. Part No.: 130-08-098
