Bosch Nuke Performance 1462cc 65mm EV14L Injector 6 pieces

Bosch 1462cc / 1500cc flow-optimized, high impedance injector, adapted to 65mm (EV14L) for Nuke Performance 6-cylinder fuel rail range.

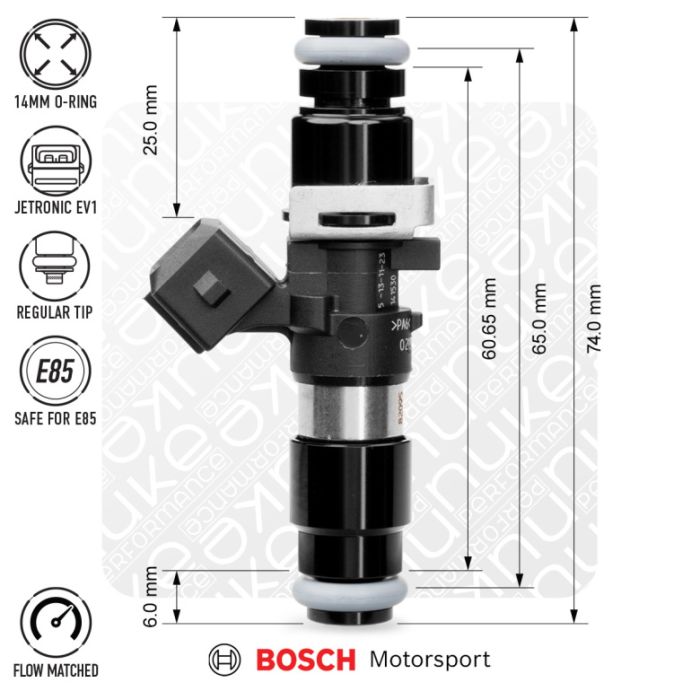

This injector includes the necessary accessories for a Bosch EV14L injector (60.65mm O-ring to O-ring / 65mm O-ring center to center).

1462cc High-impedance Injector from Bosch Motorsport

Also known as 1500cc Bosch Injector

Length equivalent to a Bosch EV14L injector

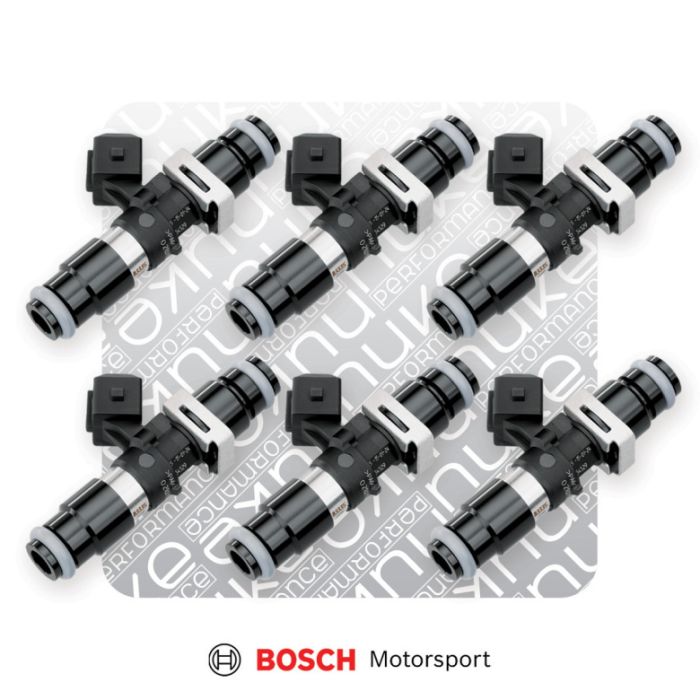

Kit of 6 pcs 1462cc flow-optimized injectors

Top adapter with filter for extra protection

When ordering injectors, always check the specifications of your fuel rail to ensure the correct injector fitment. Most Nuke Performance fuel rails use EV14L injectors, available from 630cc to 2200cc. Specifications of the 1462cc Bosch Motorsport Injector:

Bosch Part Number

0280158333 / Bosch -333

OEM Part Number

0 280 158 333

Type - without adapters included
39mm EV14K (Compact)

Type - with adapters included
65mm EV14L (Long)

Connector
Bosch JPT EV1 Minitimer Jetronic

Upper / Lower O-ring
14mm Viton / 14mm Viton

Resistance
8.5 Ohm

Flow Rate @ 3 BAR

1462cc/min = 1000g/min = 132lb/hr @ 3 BAR

Fuel Compatibility
Gasoline / E85 / M100*

Nozzle / Spray Pattern
Standard Tip / Single Cone Spray

For Motorsport Use
YES

Part No. / EAN
130-06-150 / 7340209508475

* Note: If you use the injector with methanol, flush it with regular gasoline after use. Do not leave methanol in the injector for extended periods.

1462cc Bosch injector capacity:

Test conditions may differ from real use due to technical and equipment factors. However, this information helps to understand the injector's performance and when choosing other fuel system components.

Max Static flow measured in a test environment

2 BAR (29 PSI)

N/A

3 BAR (43.5 PSI)

1450 cc/min = 138.1 lb/hr

4 BAR (58 PSI)

1690 cc/min = 160.9 lb/hr

5 BAR (78.5 PSI)

1900 cc/min = 180.9 lb/hr

6 BAR (88 PSI)

N/A

7 BAR (101.5 PSI)

N/A

Gasoline (10% Margin)

Turbocharged

Naturally Aspirated

1 Cylinder

1 x 197 = 197 HP

1 x 257 = 257 HP

4 Cylinder

4 x 197 = 788 HP

4 x 257 = 1028 HP

5 Cylinder
5 x 197 = 985 HP

5 x 257 = 1285 HP

6 Cylinder

6 x 197 = 1182 HP

6 x 257 = 1542 HP

8 Cylinder

8 x 197 = 1576 HP

8 x 257 = 2056 HP

E85 (10% Margin)

Turbocharged

Naturally Aspirated

1 Cylinder

1 x 171 = 171 HP

1 x 214 = 214 HP

4 Cylinder

4 x 171 = 684 HP

4 x 214 = 856 HP

5 Cylinder

5 x 171 = 855 HP

5 x 214 = 1070 HP

6 Cylinder

6 x 171 = 1026 HP
6 x 214 = 1284 HP

8 Cylinder

8 x 171 = 1368 HP

8 x 214 = 1712 HP

Injector Calculation: The stated figures are based on a 3 BAR (43.5 PSI) base pressure at idle, which provides an overview of this injector's performance.
1462cc Bosch Injector, 65mm (EV14L), 6 pcs Flow Calibrated. Includes:

6 pcs Bosch Motorsport Injectors (No. 0280158333)

6 pcs Short 14mm Injector Adapters with filter (No. 135-01-101)

6 pcs Short 14mm Injector Adapters without filter (No. 135-01-102)

6 pcs Bosch Injector Clips (No. 135-01-005)

1 pcs Flow Calibrated Certificate
