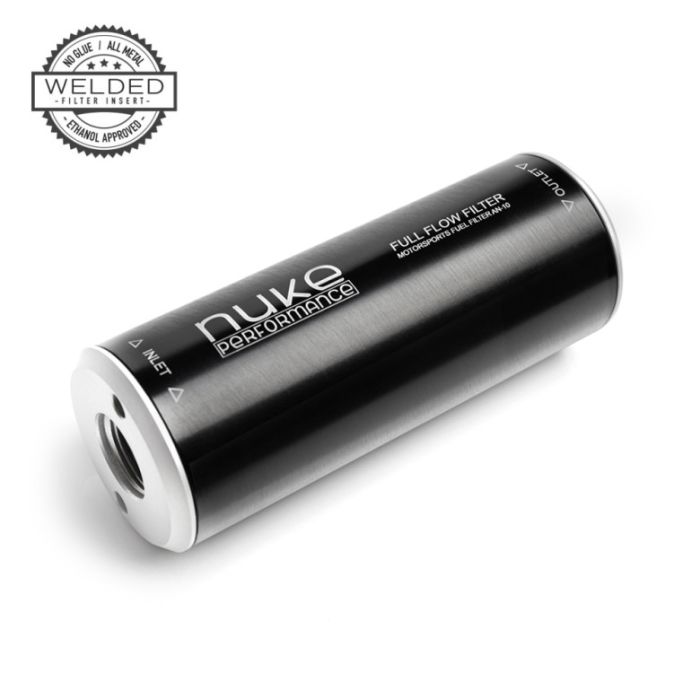

Nuke Performance Slim 10-micron AN-10 Fuel Filter - Cellulose Filter Element

Nuke Performance high-flow in-line fuel filters, slim series, available with 10 and 100 micron filter elements in cellulose and stainless steel. Slim design for installations with limited space.

This lightweight, newly optimized high-flow in-line fuel filter is equipped with a classic cellulose filter element for gasoline or with the unique Nuke Performance welded fuel filter insert, 100% resistant to alcoholic fuels such as ethanol.

Lightweight and slim in-line fuel filter for motorsport

Safe for all types of fuels, including ethanol and methanol

Available with welded stainless steel filter elements

Now with AN-10 ORB for maximum possible flow

More than 60 square inches of filtration area

750 l/h, high flow with minimal flow loss

Available with 10 and 100 micron inserts

Nuke Performance slim series fuel filters are ideal for those requiring high fuel flow and maximum filtration. Nuke Performance high-quality fuel filters act as affordable insurance, protecting your engine and should never be overlooked. Without proper filtration, a serious problem will quickly arise.

Choose the right filter elements for your needs and fuel type. Available with inserts for gasoline and alcohol fuels.

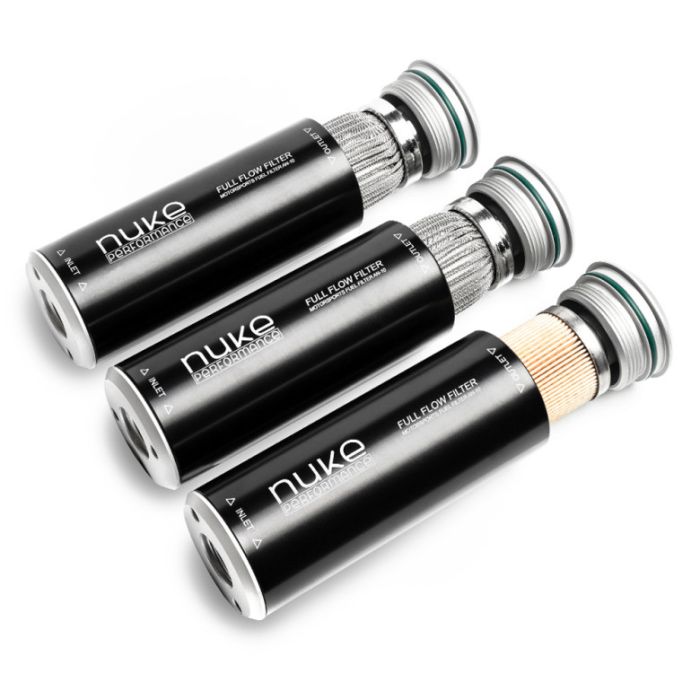

The Slim series high-flow fuel filters are delivered with a classic 10 micron cellulose fuel filter insert. These inserts are economical and easy to replace for your gasoline system. If you are using alcohol fuels such as ethanol, methanol, or race fuels, choose one of our unique welded filter elements, available in 10 and 100 micron. These elements are made of 100% stainless steel with exclusive welded caps that avoid the use of common glue, which can dissolve when switching from gasoline to ethanol or when using aggressive fuels such as race fuels. With the new improved Nuke Performance fuel filters, you won't have to worry about filter element failures. 10 micron cellulose filter for gasoline

10 micron stainless steel filter for all fuel types

100 micron stainless steel filter for all fuel types

The new, improved slim design ensures high flow rates with minimal loss, even with high-pressure, high-flow fuel pumps like Deatschwerks DW400 and Ti Automotive GST450/GST 520 (Walbro). Also suitable for brushless fuel pumps.

When using alcohol fuels, choose the appropriate filter based on your filtration needs.

When using ethanol, methanol, or other alcohol fuels, we recommend our stainless steel filters, as they offer long service life and trouble-free operation. We recommend cleaning the internal filter once per season, and if using cellulose filters, changing them monthly to prevent them from dissolving during use.

Alcohol fuels: stainless steel filter.

Gasoline: cellulose or stainless steel filter.
Diesel = cellulose or stainless steel insert.

Nuke Performance also offers the same fuel filter inserts in a filter series with integrated mounts, with the same functionality and an attractive, functional design. For those who need a fuel filter with higher flow and filtration area, Nuke Performance offers the Nuke Performance PF200 10 micron high-performance filter.

Nuke Performance PF200 10 micron fuel filter: 200-02-201 / 200-02-202

Easy and accessible mounting with a wide variety of options.

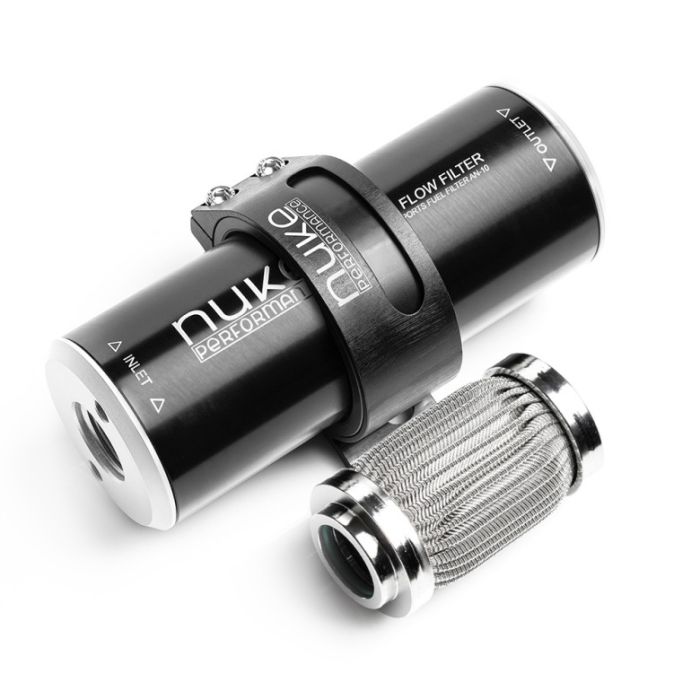

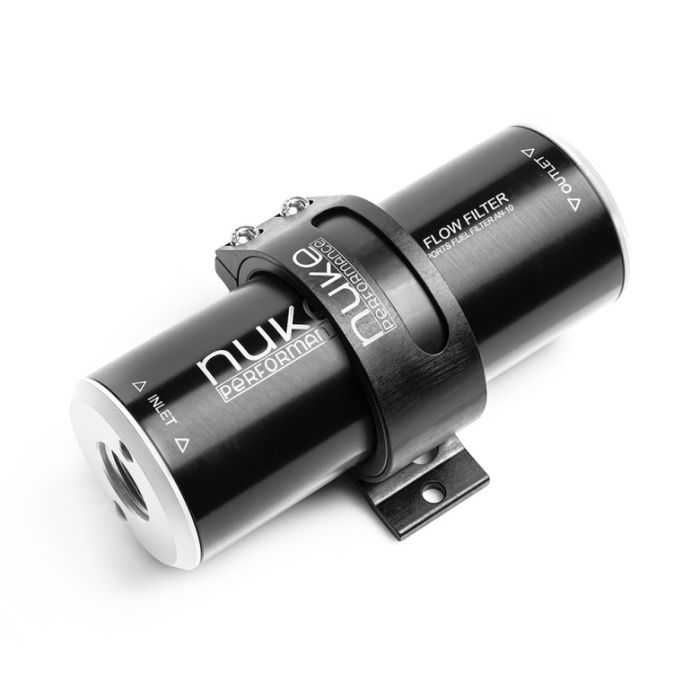

To mount the Nuke Performance Slim series fuel filters, it is recommended to use the Nuke Performance fuel filter bracket, available in single or dual design to suit all your filtering needs. The Nuke Performance universal, lightweight, machined bracket includes various adapters for fuel filters and fuel pumps, such as the popular Bosch 044 in-line pumps, Deatschwerks DW350il, etc. Be sure to place the fuel filter in a secure location that prevents deformation in the event of an accident. We also offer a simpler and more economical mounting solution with two P-clamp style stainless steel brackets that perfectly fit Nuke Performance fuel filters.

Nuke Performance single fuel filter bracket: Part No.: 950-01-212

Nuke Performance dual fuel filter bracket: Part No.: 950-02-212

Stainless steel fuel filter brackets (2 units): Part No.: 200-20-102

Now with oversized AN-10 ORB fuel line connections

Oversized AN-10 inlet/outlet threads for maximum fuel flow capacity. Since 2021, our fuel filters are ready to use AN-10 ORB connections for maximum flow and are available in a wide variety. AN-10 ORB to AN-6, AN-8, AN-10, and AN-12 connections are sold separately as accessories.

AN-10 ORB to AN-6 male connector: 700-01-108

AN-10 ORB to AN-8 male connector: 700-01-109

AN-10 ORB to AN-10 male connector: 700-01-110

AN-10 ORB to AN-12 male connector: 700-01-111

How to choose the right fuel filter and where should I mount it in my fuel system?

Choosing the correct fuel filter for your system is easy, and we have everything you need. If you are using an internal fuel pump with a pre-filter included, we recommend a 10 micron fuel filter between the fuel filter and the fuel rail/injectors. If you are using an external fuel pump, you should use a 100 micron fuel filter between the fuel tank and the pump, and a 10 micron fuel filter between the pump and the fuel rail/injectors. The location of the in-line fuel filters should be such that, in the event of an accident, the filter is in a safe position to prevent damage that could lead to leaks. Be sure to place the filter in an easily accessible location for maintenance and for changing the filter element when necessary.

Complete your high-flow fuel system with Nuke Performance Full Flow series fuel lines, hose ends, and fittings.

Nuke Performance offers a wide variety of PTFE and nitrile fuel line systems for all your fuel needs. The Nuke Performance Slim 10/100 micron AN-10 fuel filter is the perfect match for Nuke Performance Full Flow series fuel lines. Available in AN-4 to AN-12 and with a wide variety of fittings and accessories. Thanks to our handy fuel line tool selection, assembling your fuel system has never been easier.

Developed to the high demands of global motorsport.

Manufactured in Sweden and developed in collaboration with motorsport teams worldwide, this range of fuel filters is constantly evolving. Always ready to offer you maximum performance, filtration, and quality, even in the most demanding conditions. Nuke Performance Slim-series fuel filters are manufactured with the same hallmark as all other parts in the lightweight Nuke Performance motorsport range.

Nuke Performance quality is unsurpassed!

Filter insert change due to heavy contamination!

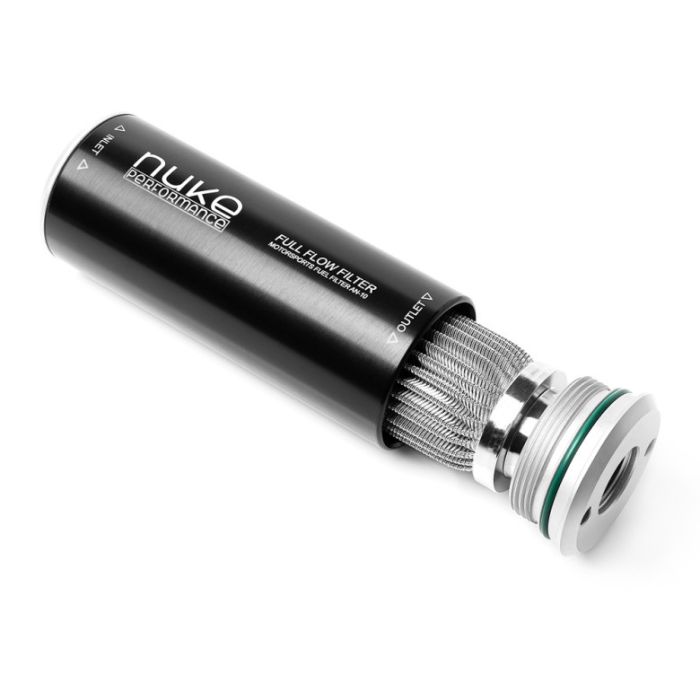

We strongly recommend replacing or cleaning (stainless steel elements only) the internal filter element once per season, especially when using ethanol, due to its properties of dissolving impurities in the fuel system. Even stainless steel inserts may need to be replaced due to heavy contamination.
Replacement filter elements. Part number: 200-10-101 / 200-10-102 / 200-10-105

O-ring for fuel filter caps. Part number: 200-10-103

Wrench for opening fuel filters. Part number: 200-20-101

Nuke Performance Slim 10/100 micron AN-10 Fuel Filter Specifications

For more information on specifications, please contact us directly.

10 micron cellulose, Part No. 200-02-201 (insert No. 200-10-101)

10 micron stainless steel, Part No. 200-02-203 (insert No. 200-10-105)

100 micron stainless steel, Part No. 200-02-202 (insert No. 200-10-102)

Fuel compatibility: Gasoline, methanol, ethanol, diesel*

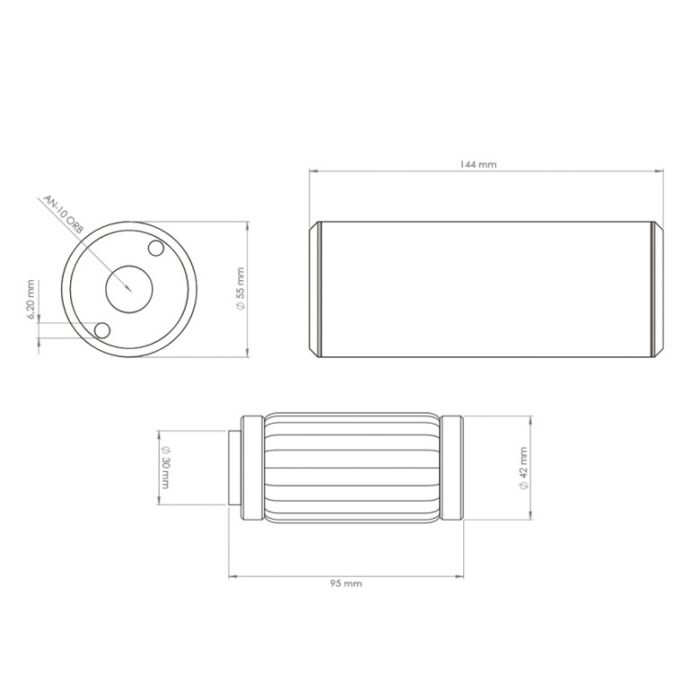

Length: 144 mm (5.67")

Diameter: Ø 55 mm (2.16")

Inlet thread: AN-10 ORB, display range

Outlet thread: AN-10 ORB, display range

Weight: 450 g - 750 g (0.9-1.6 lb)*

Filter area: 60 in²

Working pressure / Max pressure: 8 BAR (116 PSI) / 21 BAR (305 PSI) PSI)
Flow rate: 750 l/h
Pressure drop: ≈0.15 bar (≈2.17 PSI)

* Depends on fuel filter version

Nuke Performance Slim 10 / 100 micron AN-10 Fuel Filter. Includes:

1 fuel filter housing with AN-10 ORB thread

1 fuel filter insert (choice of)
