Aeromotive 40-Micron Black Fuel Filter with ORB-10 Ports and Stainless Steel Mesh Element

ORB-10, 40-micron Stainless Steel Mesh Element, Black Anodized Finish

A Sound Investment in Protecting Your Budget: Proper filtration is key to fuel system performance. Filtration solutions designed to achieve protection with minimal restriction are required. For applications from 200 to 3000+ HP, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the immaculate machining and finish you've come to expect from all Aeromotive components. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part that meets OEM specifications.
Specifications:

Fuel Filter Type: In-line
Fuel Type: All fuels
Inlet Quantity: 1
Inlet Size: AN-10
Inlet Connection: Female thread
Inlet OD: AN-10
Outlet Quantity: 1
Outlet Size: AN-10
Outlet Connection: Female thread
Outlet OD: AN-10
End 1 Gender: Female
End 2 Gender: Female
Connection Type: AN-10
Connections Included: No
Filter Element Included: Yes

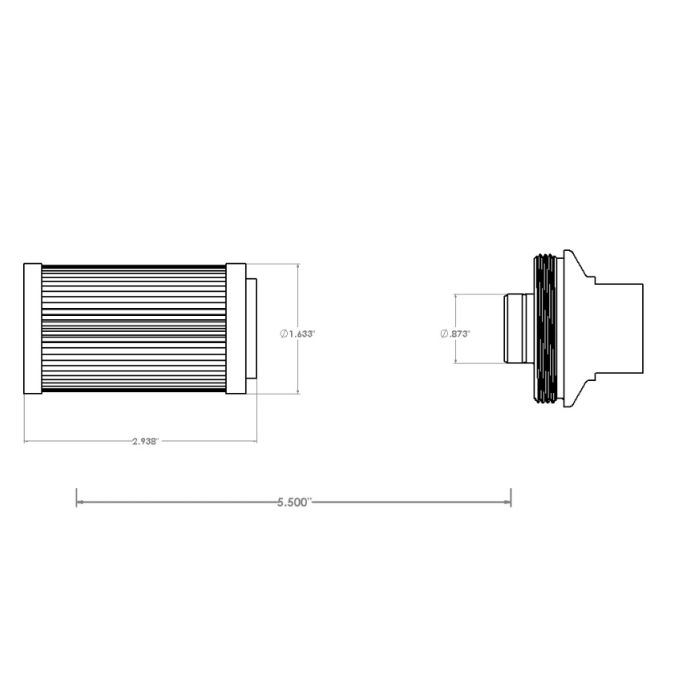

Filter Element Material: Stainless Steel Mesh
Micron Rating: 40
Smallest Particle Filtered: 40 Micron
Flow Rate: 2000 pounds per hour
Filter Housing Color: Black
Filter Housing Finish: Anodized

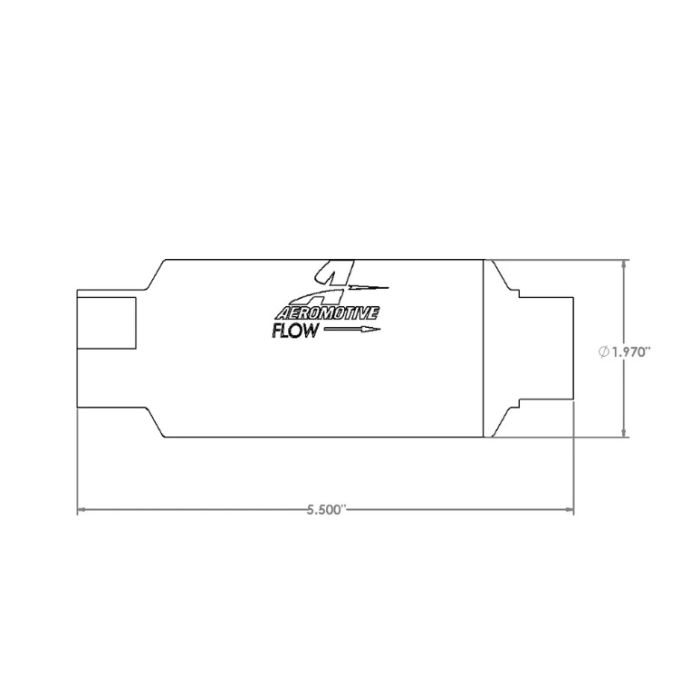

Filter Housing Diameter: 2.0 inches
Filter Housing Length: 5.5 inches
Filter Housing Material: Machined Aluminum
Mounting Type: External
Mounting Bracket Included: No
Clamps Included: No
Gasket or Seal Included: Yes
Maximum Fuel Pressure (psi): 70 PSI
Universal Or Specific Fit: Universal
