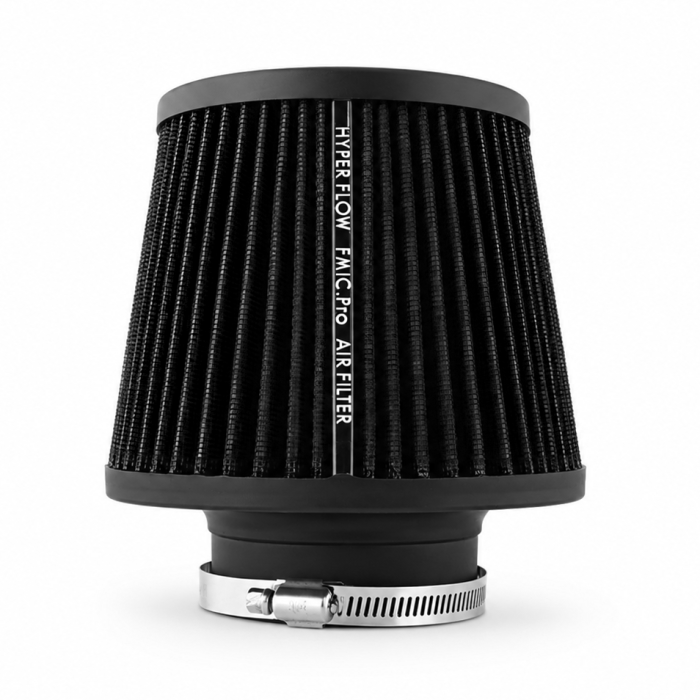

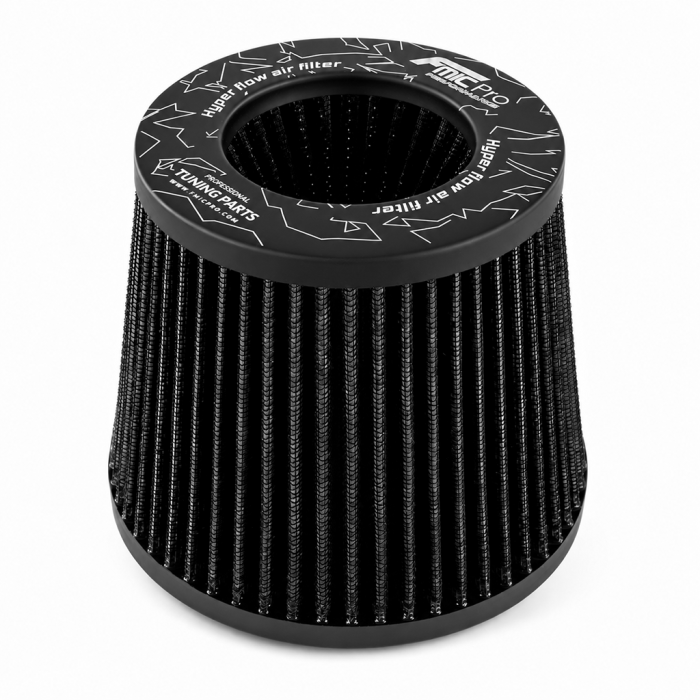

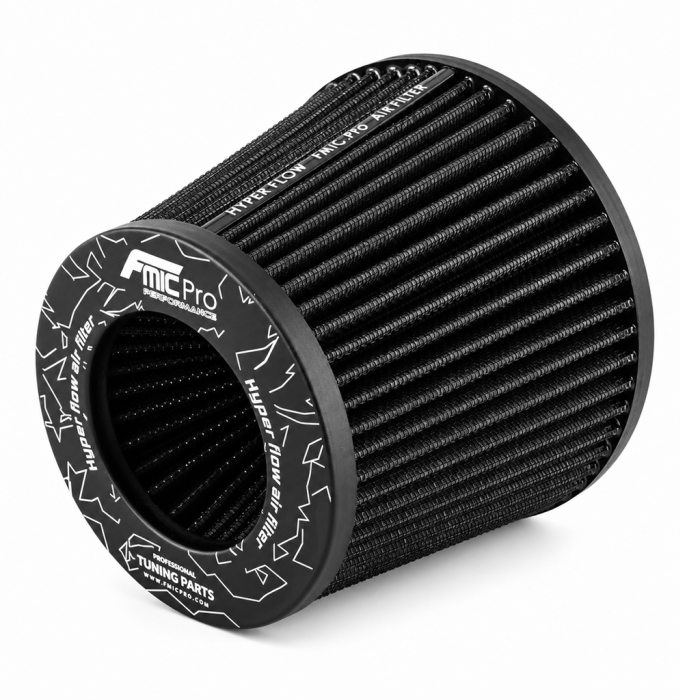

FMIC.Pro Conical Air Filter, 125 mm length, 102 mm diameter, black.

The high-performance FMIC.Pro conical air filter has been designed for high-performance intake systems in sports, racing, modified, and production vehicles. Its construction reduces restrictions in the intake system and ensures a stable supply of a large volume of air to the engine.

The filter element is made of nanofibers, which provides high airflow capacity and effective filtration of dust, fine particles, and other contaminants. The fine structure of the nanofibers offers an effective combination of high airflow and an adequate level of engine protection.

The filter material is reinforced on both sides with steel mesh, which provides high rigidity and resistance to deformation, stabilizing the material and protecting it against damage.

The pleated construction creates numerous folds that significantly increase the filtration surface without increasing the external dimensions of the filter. The larger surface area allows a large volume of air to flow freely.

An additional smaller cone is integrated into the top of the filter. This solution increases the total filtration surface and allows air to enter through the upper section as well.
The rubber mounting element features an internal step that provides a smooth transition to the intake pipe and eliminates any edges that could disturb the airflow. The profiled internal intake duct directs the airflow evenly into the intake system, reducing turbulence and flow resistance.

To maintain high filtration efficiency and adequate airflow, the filter's condition should be checked regularly, and accumulated contaminants should be removed. Specific cleaning products should be used. Afterward, the filter material should be evenly coated with a thin layer of air filter oil, avoiding excessive saturation, which could restrict airflow or contaminate intake system components.

To ensure optimal filter operating conditions, we recommend using a heat shield. When driving in adverse weather conditions or off-road, it is also advisable to protect the filter with a HydroShield hydrophobic cover, which helps reduce contact between the filter material and water or contaminants.

The filter is equipped with a stainless steel hose clamp, ensuring a secure and durable installation on the intake pipe.
Key features: • Nanofiber filter material • High airflow • Effective filtration of dust, fine particles, and other contaminants • Pleated structure that increases filtration surface • Additional filter cone in the upper section • Filter material reinforced with steel mesh on both sides • Deformation-resistant construction • Large active filtration surface • Stainless steel hose clamp included

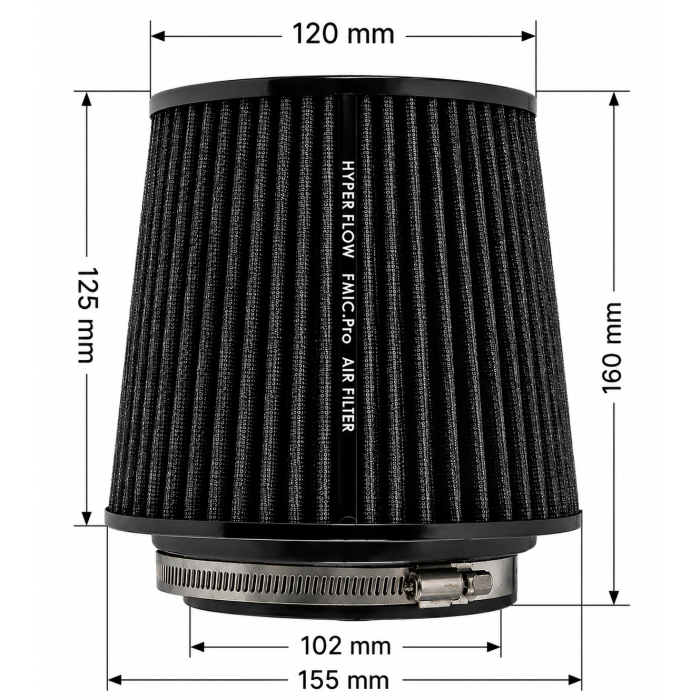

Dimensions: • Connection diameter: mm • Top diameter: mm • Base diameter: mm • Filter element height: mm • Overall height: mm
