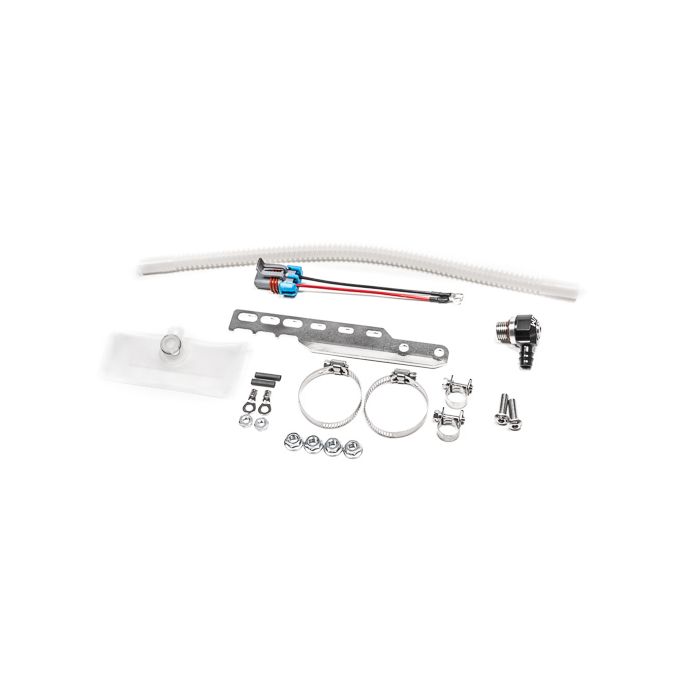

The Radium Engineering dual pump module is compatible with Walbro F90000267/274/285 for Acura Integra and Honda Civic CR-X.

DUAL PUMP ADD-ON

Parts 20-1796 and 20-1797 are add-ons to the previously mentioned fuel pump hanger.

NOTES:

Parts 20-1790 or 20-1792 are required to use these add-ons.

If a brushless pump has been installed, a "dual pump add-on" cannot be used due to the additional brushless controller wiring.

The architecture of this Honda fuel tank is very particular. Because the opening is so small, two pumps cannot fit at the same time. Also, the insertion angle, combined with the tall collector cup and shallow tank, make dual pump installation difficult.

A plug-in electrical and SAE quick connect removes the need for laborious assembly before dropping the whole assembly into the tank. Both fuel pumps combine into the single 8AN ORB outlet of the tank lid. Thanks to the check valves built into the following pumps, staged installation is allowed.
FUEL PUMPS

Choosing the best fuel pump depends on expected engine horsepower, fuel type (gasoline, E85, etc.), and fuel pressure.

Part #: 20-1796

**AEM 50-1000

**AEM 50-1200

**AEM 50-1220

**+AEM 50-1230

**+AEM 50-1235

*Walbro GSS342

Part #: 20-1797

*Walbro F90000267

*Walbro F90000274

*Walbro F90000285

*+Walbro F90000295

*This kit includes mesh filters for these pumps.**Mesh filters are provided by the fuel pump manufacturer.+These pumps do NOT include a check valve.
FEATURES

Gasoline, Methanol, and E85 Compatible

Compatible with various pumps

Includes fuel filter for pump

Plug and Play Installation

Bolt-on Stainless Steel Pump Support

Instructions PDF
