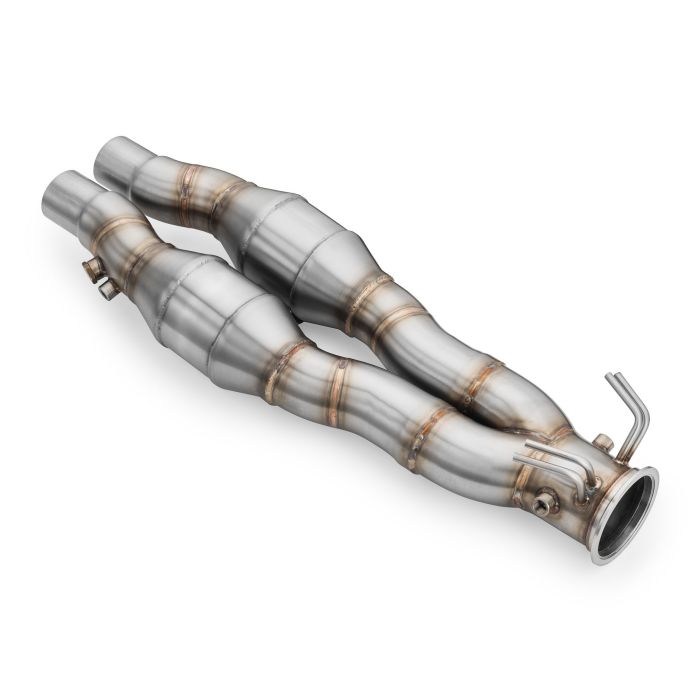

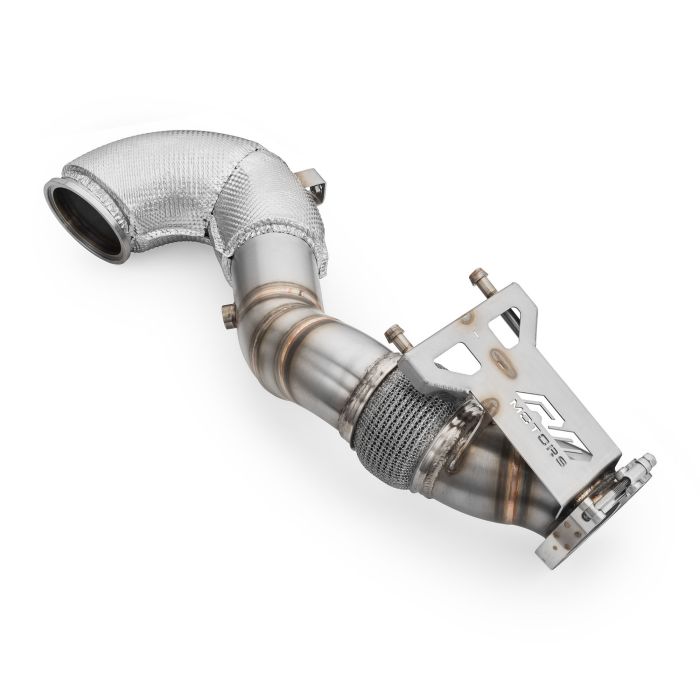

Downpipe Cupra Formentor VZ5 with cylinder head protector and 200CPSI OBD catalytic converter

Cupra Formentor VZ5 Downpipe with Heat Shield and Catalytic Converters 2.5 TFSI 4x4 2021-390 HP Compatible with OPF Version

Pipe diameter from turbo: 88.9 mm. Pipe diameter: 76 mm.

This product is not street legal and cannot be used on public roads in the EU.

Cupra Formentor VZ5 Downpipe with Heat Shield and Catalytic Converters

Available options:

PROM.RS3/8Y/E6 - Downpipe with inlet pipe, V-band clamp, and two 200 cpsi HJS 90603344 catalytic converters, compliant with EURO 6 emission standards.

PROM.RS3/8Y/OBD - Downpipe with inlet pipe, V-band clamp, and two 200 cpsi HJS 90603444 catalytic converters, compliant with OBD emission standards. PROM.RS3/8Y/MS - Downpipe kit with starting pipe, V-band clamp, and two 100 cpsi HJS 90603341 catalytic converters, compliant with competition emission standards.

The Cupra Formentor VZ5 downpipe has the following connections:

2 lambda sensor bungs.

2 exhaust gas temperature sensor bungs.

4 differential pressure sensors.

It is possible to connect additional lambda sensors to the downpipe to avoid errors (the original cable must be extended).

Reinforced mounting for increased structural rigidity.

Original Equipment (OE) part numbers for the Cupra Formentor VZ5 downpipe:

8S0253005A

8S0253005AX

8S0253005X

Each component of the Cupra Formentor VZ5 downpipe has been manufactured using CNC technology. See also other available downpipes.
The downpipe is sold only together with the starter pipe. The product includes a 24-month warranty.
