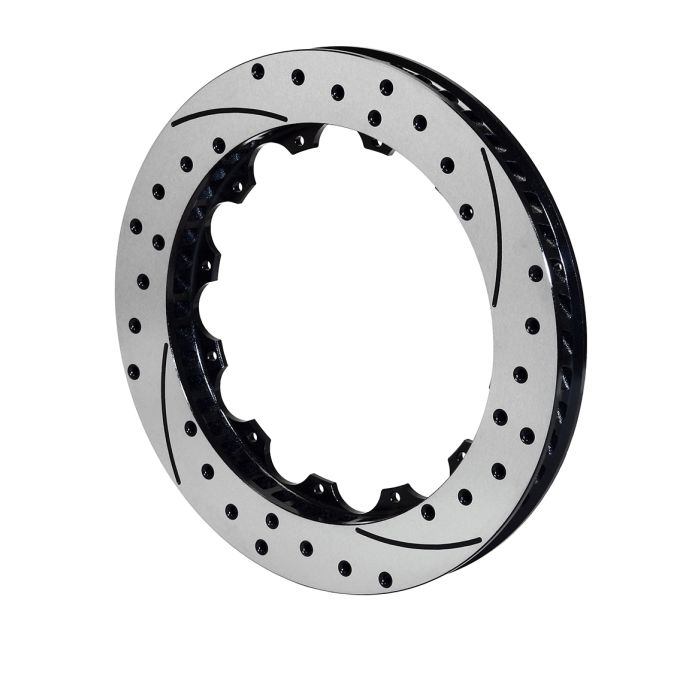

Wilwood 160-13544-BK SRP Drilled Performance Rotor, 12.88, Left, Black.

SRP High Performance Drilled Brake Rotor

SRP High Performance Drilled Brake Rotors feature a special directional cross drill and surface slot design that improves braking response and pad performance across the entire range of braking, from light to heavy. The venting and cleaning action of the holes and slots reduce pad glazing and disperse the gases and heat generated during pad-to-rotor contact. The holes and slots also prevent irregular pad compound build-up on the rotor surface resulting in smoother engagement and improved pedal response under all conditions. Removed material also contributes to reduced rotating and unsprung suspension weight.

Performance Features

Premium grade castings, Spec-37.

Suitable for street and moderate temperature track use.

For maximum durability in severe competition use comparable HD or GT rotors.

Rotor Dimensions

Width (in)

1.10

Diameter (in)

12.88

Mounting Side
Left

Rotor Design

Material
Spec-37 Iron

Number of Vanes
48 CV

Weight (lbs)

11.90

Rotor Style and Finish

Type
SRP-BLK

Style
SRP Drilled and Slotted

Surface Finish

Black Electro Coat

Rotor Enhancements

Bedded
No

Balanced
Yes

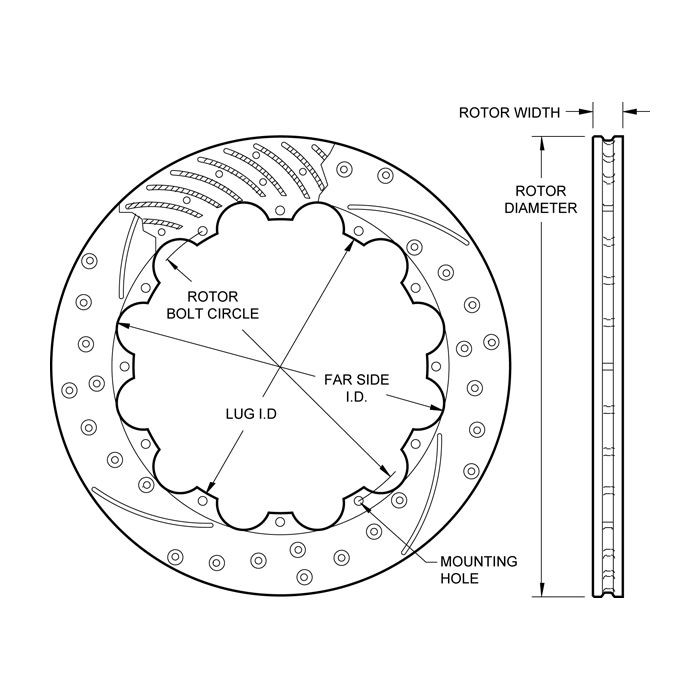

Additional Rotor Dimensions

Rotor Bolt Circle Diameter (in)
12 x 8.75

Rotor Mounting Hole Size (in)
0.251

Hat Inside Diameter (in)
8.25

Opposite Side Inside Diameter (in)
9.46

Offset Dimension (in)

Additional Notes

In addition to the excellent performance features of this rotor design, each rotor is treated with a black electro coat to inhibit corrosion in all non-contact areas. The high-tech design, classic style, and aesthetic appeal of the SRP series are the perfect finishing touch for any wheel and tire detail.

SRP rotors are available in all popular sizes used in Wilwood’s Pro Series and Big Brake conversion kits. Kits in these categories designated with the drilled rotor option include the SRP as standard equipment.
