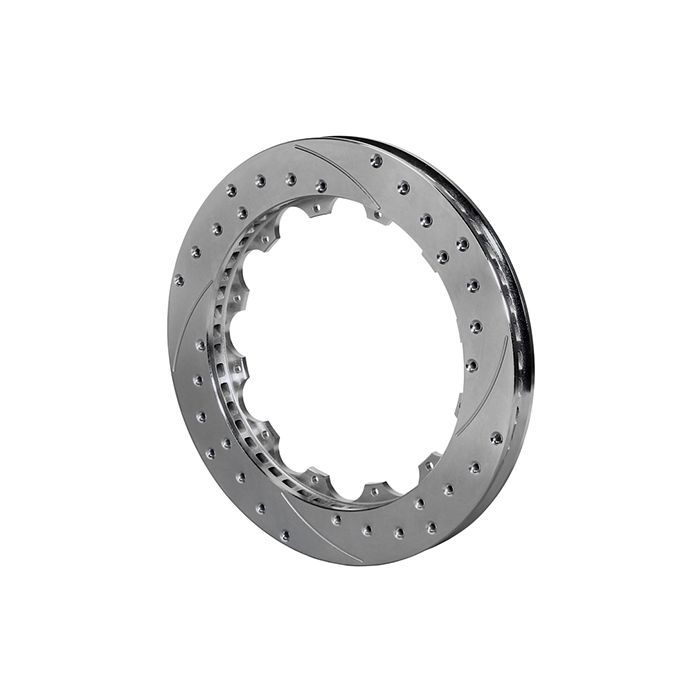

Wilwood 160-13543 SRP Drilled High-Performance Brake Rotor, 12.88, Right Hand Side

SRP High Performance Drilled Brake Rotor

SRP High Performance Drilled Brake Rotors feature a special directional cross-drilled and surface slot design that improves braking response and pad performance throughout the braking range from light to heavy. The cooling and cleaning action of the holes and slots reduces pad glazing and disperses the gases and heat generated during pad-to-rotor contact. The holes and slots also prevent irregular pad compound build-up on the rotor surface, resulting in smoother engagement and improved pedal response under all conditions. The removed material also contributes to reducing rotating and unsprung suspension weight.

Performance Features

Premium grade castings, Spec-37.

Suitable for street and moderate temperature competition use.

For maximum durability in competition, use comparable HD or GT rotors.

Rotor Dimensions

Width (in)

1.10

Diameter (in)

12.88

Mounting Side
Right

Rotor Design

Material
Spec-37 Iron

Number of Vanes
48 CV

Weight (lb)

11.90

Rotor Style & Finish

Type
SRP

Style
SRP Drilled and Slotted

Surface Finish
Zinc Plated

Rotor Enhancements

Bedded
No

Balanced
Yes

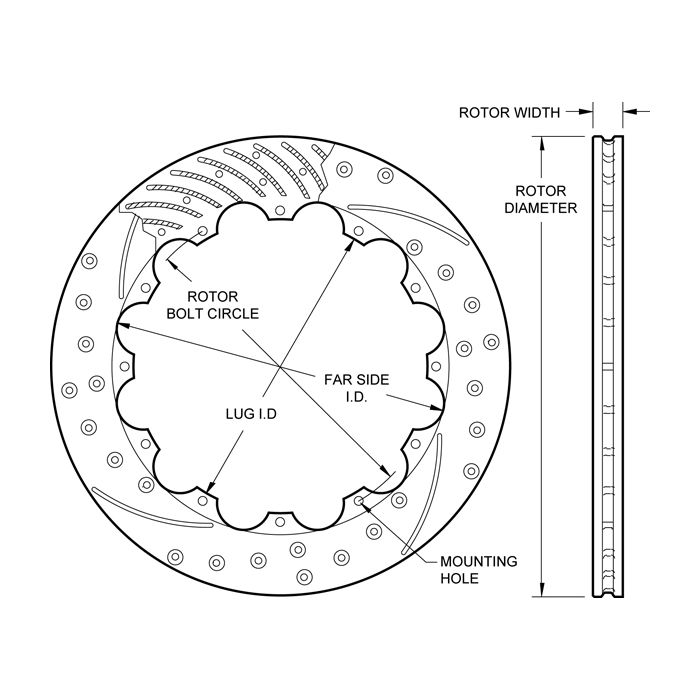

Additional Rotor Dimensions

Rotor Bolt Circle (in)
12 x 8.75

Rotor Mounting Hole Size (in)
0.251

Lug Inner Diameter (in)
8.25

Opposite Side Inner Diameter (in)

9.46

Offset Dimension (in)

Additional Notes

In addition to the excellent performance features of this rotor design, each rotor is treated with an electrophoretic black coating to inhibit corrosion in all areas of the rotor. The high-tech design, classic style, and aesthetic appeal of the SRP series are the perfect finishing touch for any wheel and tire detailing.

SRP rotors are available in all popular sizes used in Wilwood’s Pro Series and Big Brake conversion kits. Kits in these categories that include the drilled rotor option incorporate SRP rotors as standard.
