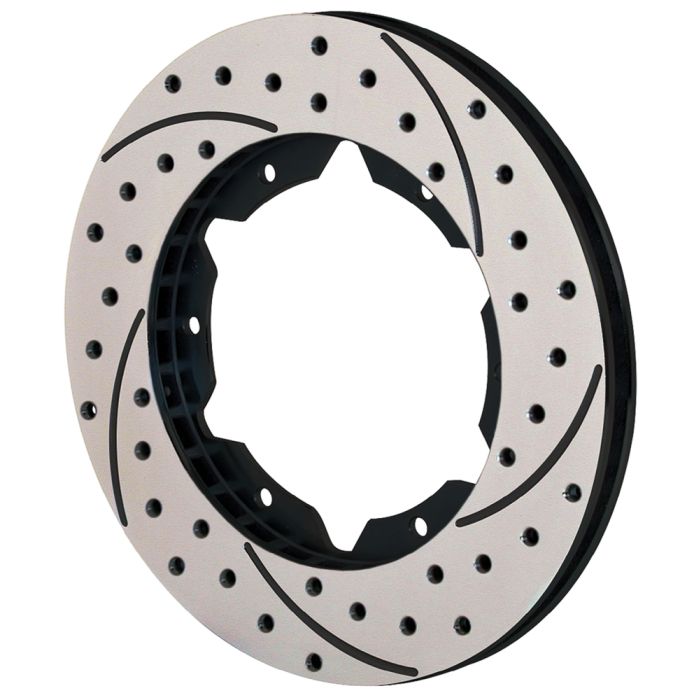

Wilwood 160-9249-BK SRP 10.50" Drilled Performance Brake Rotor (Right, Black)

SRP Drilled High-Performance Rotor

SRP Drilled High-Performance Rotors feature a specially engineered directional cross-drill and face slot pattern that improves braking response and pad performance throughout the entire range of light to heavy braking. The venting and cleaning action of the holes and slots reduces pad glazing and dissipates the gases and heat generated during pad-to-rotor contact. The holes and slots also prevent irregular pad compound buildup on the rotor faces, resulting in smoother engagement and improved pedal response under all conditions. Removed material also contributes to reduced rotational and unsprung suspension weight.

Rotor Dimensions

Width (in)

0.75

Diameter (in)

10.50

Mount Side
Right

Rotor Design

Material
Iron

Number of Vanes
30 V

Weight (lbs)

6.40

Rotor Style & Finish

Type
SRP-BLK

Style
SRP Drilled and Slotted

Surface Finish

Black Electro Coat

Rotor Enhancements

Burnished
No

Balanced
No

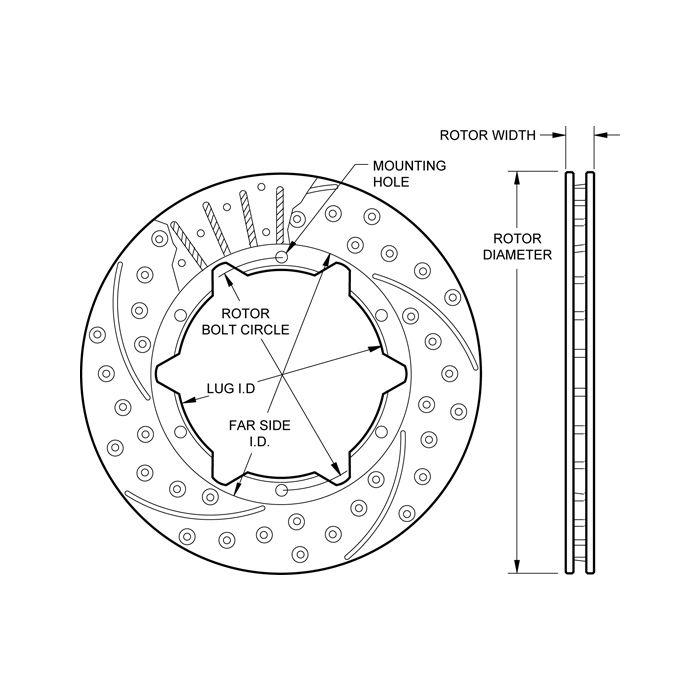

Additional Rotor Dimensions

Rotor Bolt Circle Diameter (in)
6 x 5.50

Rotor Mounting Hole Size (in)
0.326

Nut Inside Diameter (in)
4.94

Opposite Side Inside Diameter (in)
6.75

Additional Notes

In addition to the excellent performance characteristics of this rotor design, each rotor is treated with a black electro coat to inhibit corrosion in all its areas. The high-tech design, classic style, and aesthetic appeal of the SRP series are the perfect finishing touch to any wheel and tire detail.

SRP rotors are available in all popular sizes used in Wilwood's Pro Series and Big Brake conversion kits. Kits in these categories that include the drilled rotor option incorporate the SRP as standard equipment.
