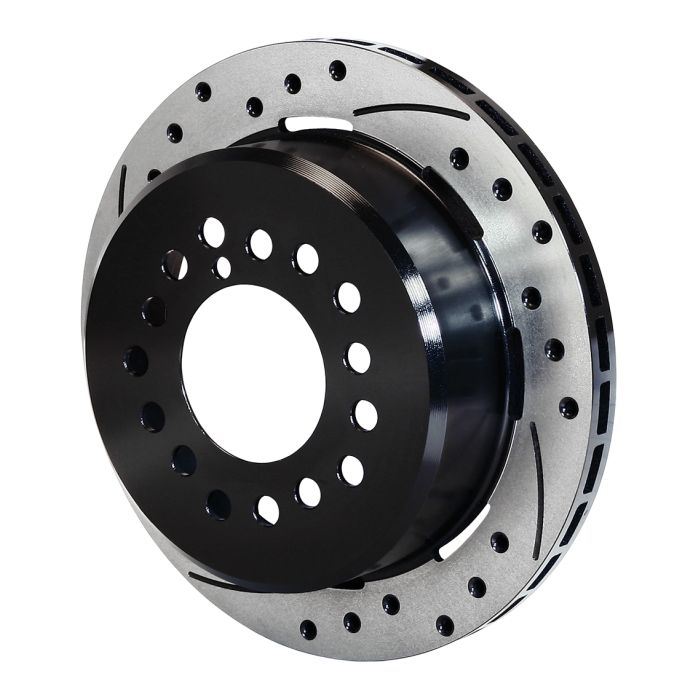

Wilwood 160-11374-BK SRP Drilled High Performance Brake Rotor, 11.00, Right, Black

High Performance SRP Drilled Rotors and Brake Supports

For custom, show and high-performance sports vehicles, SRP rotors offer a high-tech look and superior performance thanks to their directional cross-drilled and slotted surface design. In addition to their aesthetic appeal, the ventilation and cleaning action of these rotors help reduce pad glazing and minimize irregular debris accumulation on the rotor surface. The result is a smoother pedal feel and consistent pad response. Each rotor is precision machined to within 0.001-inch tolerance to ensure optimal flatness, parallelism, and radial runout on long-grain carbon iron castings. The rotors feature a black electrophoretic coating for added corrosion resistance. Performance Features

Rear brake rotor for 11.00" low-profile disc/drum internal parking brake kits.
Rotor has been upgraded to a new 3.06R register and allows for the use of register ring adapters.

Ring adapters are available in 2.00" to 2.86" sizes. See catalog for part numbers.

Rotor Dimensions

Width (in.)

0.81

Diameter (in.)

11.00

Mounting Side
Right

Rotor Design

Material
Iron

Number of Vanes
32 V

Weight (lb)

11.80

Rotor Style and Finish

Type
SRP-BLK

Style
SRP Drilled & Slotted

Surface Finish
Black E-Coat

Rotor Enhancements

Polished
No

Balanced
No

Additional Rotor Dimensions

Bolt Inner Diameter (in.)
3.06

Opposite Side Inner Diameter (in.)
8.38

Offset Dimension (in.)

1.910

Shoe Inner Dimension (in.)

7.24

Clearance Inner Diameter (in.)

7.16

Wheel Bolt Circle (in.)

5 x 4.50/4.75/5.00

Bolt Diameter (in.)

0.52

Face Thickness (in.)

0.18
