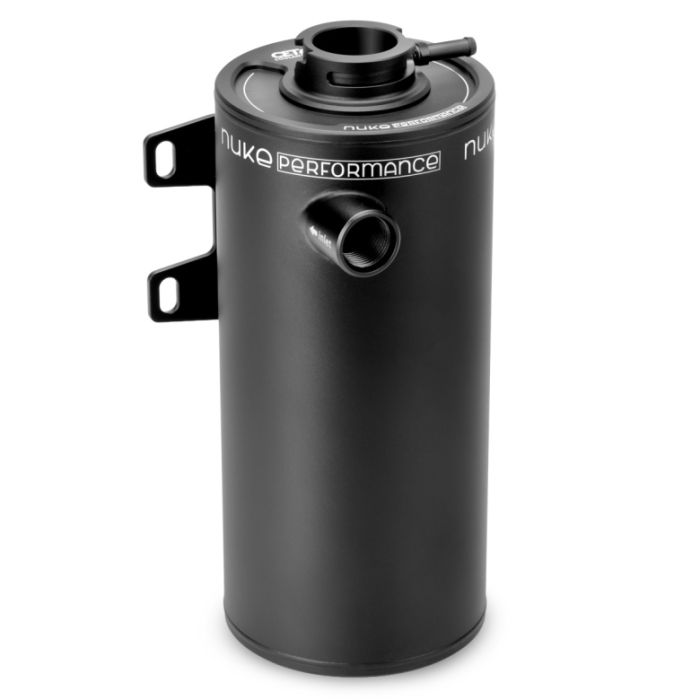

Nuke Performance 1.5L Coolant Expansion Tank

The Nuke Performance 1.5L Coolant Expansion Tank features a simplified single-chamber design for reliable cooling system performance.

This Nuke Performance 1.5L Coolant Expansion Tank is designed for both street and racing applications where reliable performance, durability, and ease of installation are critical.

Lightweight aluminum single chamber coolant tank

Type A radiator cap compatible

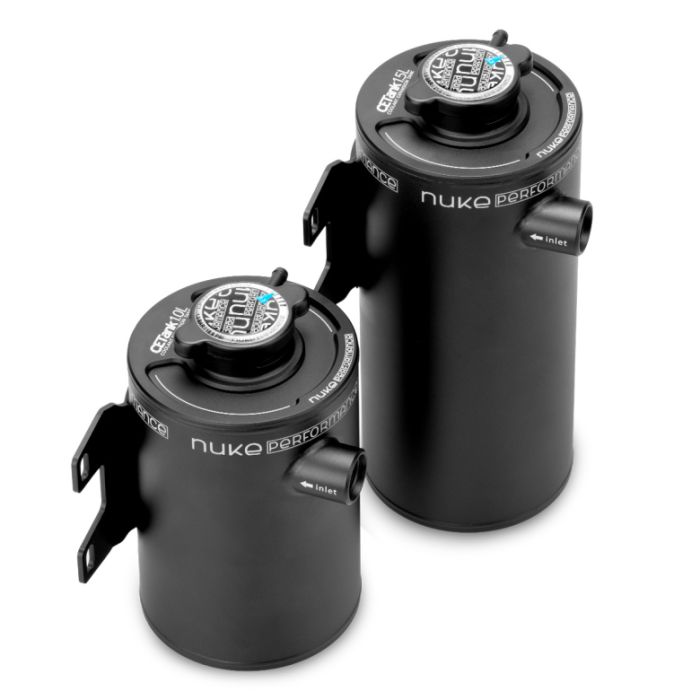

Available in 1.0L and 1.5L capacities

AN-8 ORB inlet and AN-10 ORB outlet

Engineered for consistent performance under heat and pressure

The single-chamber expansion tank offers a robust and lightweight solution for pressurized cooling systems. Designed to withstand demanding conditions while maintaining stable coolant flow, it provides long-term reliability in a wide range of applications, both on the street and on the track.

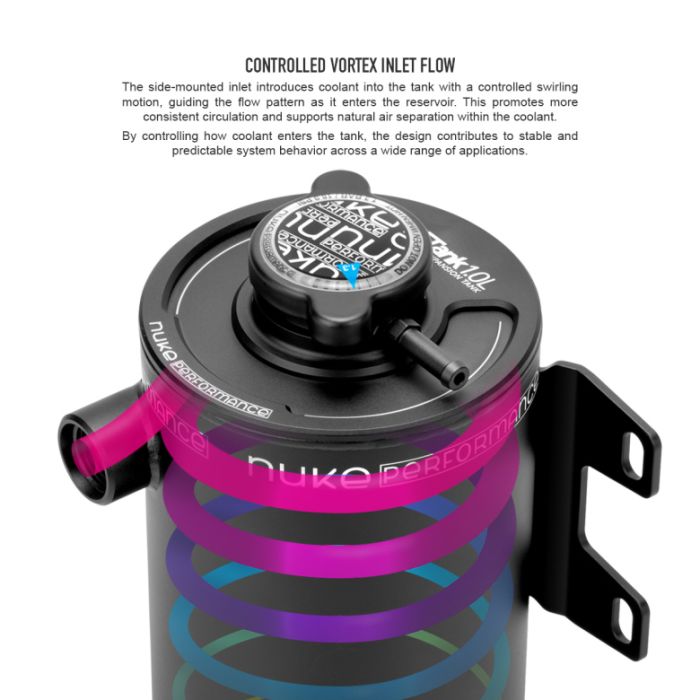

Simplified single-chamber coolant expansion tank with controlled vortex flow inlet.

With a straightforward single-chamber design, this expansion tank provides reliable coolant management for a wide range of applications. Incoming coolant enters through the side AN-8 ORB inlet, creating a controlled swirling motion that promotes consistent circulation and natural air separation within the tank.

1.5 L single chamber internal design

Designed for use in pressurized cooling systems

Controlled vortex inlet flow

Engineered to work as an integral part of the pressurized cooling system, not as an overflow tank. Its simplified internal construction ensures stable coolant movement and predictable system behavior, while the 0.8 L Nuke Performance version offers a superior level of engineering for more advanced requirements.

The AN-8 ORB inlet port and AN-10 ORB outlet port allow for a wide range of connection options with our selection of fittings and adapters.

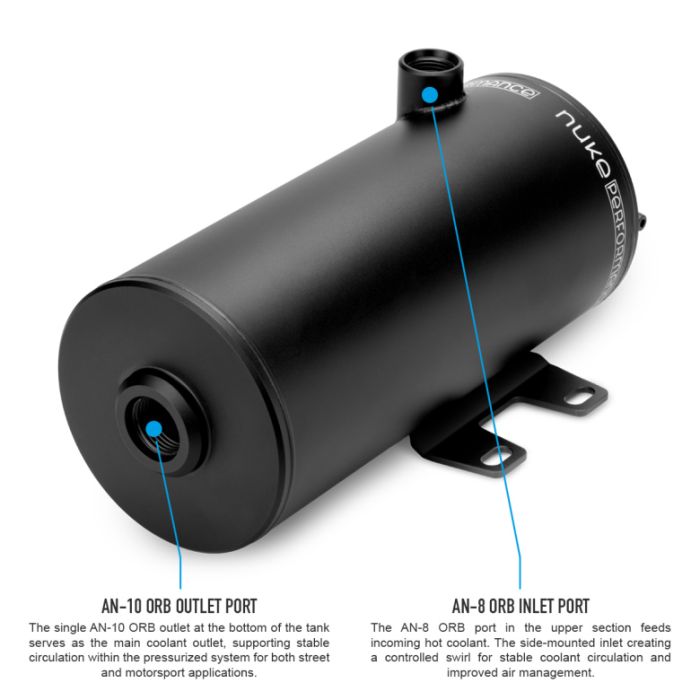

An AN-8 ORB port located in the upper section serves as the inlet for incoming hot coolant. Its lateral position introduces coolant into the tank with a controlled swirl, promoting consistent circulation and natural air separation. We offer a wide range of AN fittings and adapters to suit your installation.

AN-8 ORB inlet with side access for controlled flow

AN-10 ORB main outlet at the bottom of the tank

Simple configuration for easy installation

A single AN-10 ORB outlet is integrated into the bottom of the tank, functioning as the main coolant outlet. Its position promotes stable coolant circulation within the pressurized system, making it a reliable and efficient solution for both street and racing vehicles.

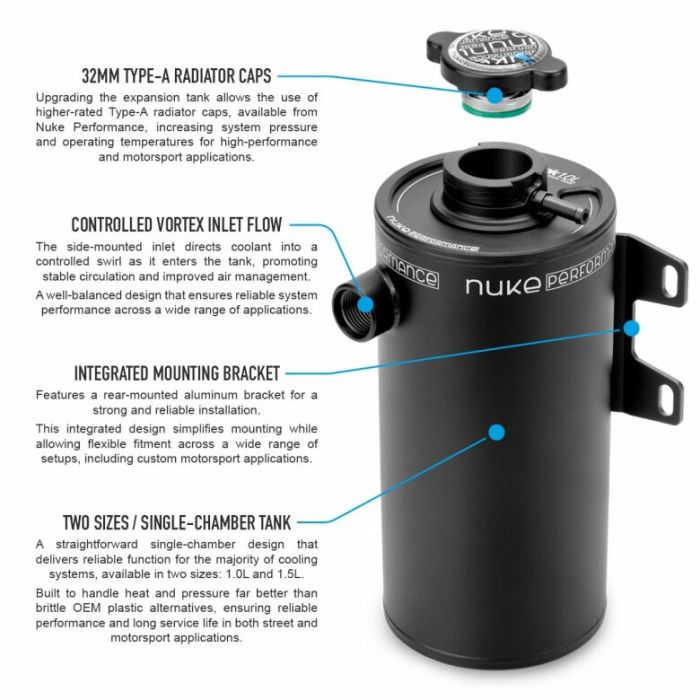

Compatible with Type A radiator caps, increasing system pressure and operating temperatures for high-performance and racing applications.

The coolant tank uses a 32mm radiator neck, designed for use with standard "mini" Type A radiator caps. Upgrading to the Nuke Performance expansion tank allows for the use of higher-rated Type A caps, increasing system pressure and operating temperatures for high-performance and racing applications.

The indicated pressure rating represents the nominal release pressure and operates within a defined tolerance range. The illustration above shows the intended operating range for each Nuke Performance radiator cap.

Cooling system pressure directly affects the coolant's boiling point. Always select the lowest pressure cap that provides sufficient boiling margin for your application, as higher pressure increases thermal stability but also puts greater strain on system components.

Type A Radiator Cap, 1.1 BAR (16.0 PSI) Part No: 452-01-011

Type A Radiator Cap, 1.3 BAR (18.9 PSI) Part No: 452-01-013

Type A Radiator Cap, 1.5 BAR (21.8 PSI) Part No: 452-01-015

Type A Radiator Cap, 2.0 BAR (29.0 PSI) Part No: 452-01-020

Designed and developed in Sweden, without compromising on engineering, materials, or performance.

Engineered entirely by Nuke Performance, the 1.0 L and 1.5 L range of coolant expansion tanks offers a reliable and balanced solution for pressurized cooling systems. With a straightforward single-chamber design, controlled inlet flow, and robust welded construction, it delivers consistent performance and long-term durability in a wide range of applications. Developed with the same focus on functionality, fitment, and reliability that characterizes all Nuke Performance products, these expansion tanks are designed for optimal performance on both the street and the track. Coolant Expansion Tank, 1.5 L. Specifications:

Expansion Tank Capacity:

1.5 Liters (0.40 Gallons)

Radiator Cap Connection:
32mm radiator neck, Type A (not included)

Inlet Thread:
AN-8 ORB

Outlet Thread:
AN-10 ORB

Overflow Thread:
1/16 NPT (1/16 NPT to 6mm adapter included)

Tank Design:
Single Chamber Design

Pressure Compatibility:
0.00 - 2.50 BAR (0.00 - 36.25 PSI)

Coolant Level Indicator:
NO

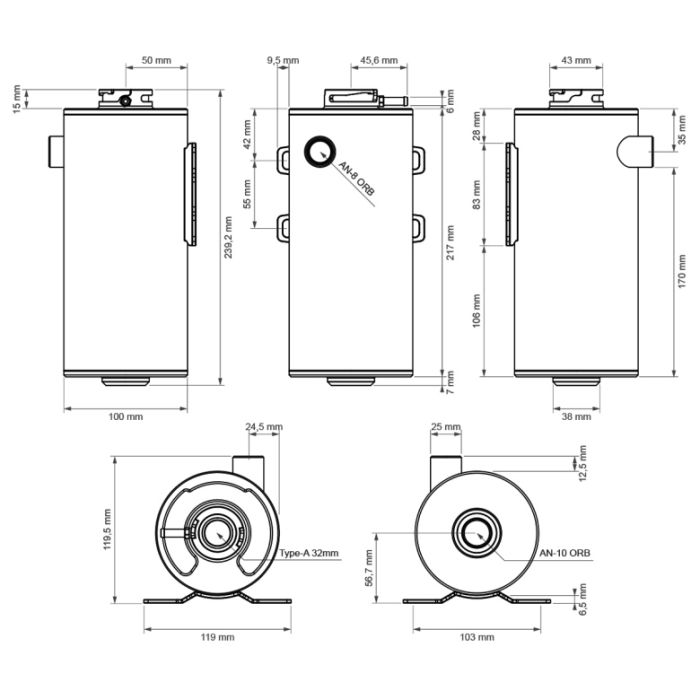

Width (with bracket):

119.0 mm (4.68")

Width (without bracket):

100.0 mm (3.94")

Height (to top of cap flange):

239.2 mm (9.42")

Depth (with bracket):

119.5 mm (4.70")

Weight

616 g (1.35 lb)

For Motorsport Use

YES, for motorsport use only

Part No

455-01-202

EAN
7340209511208

Coolant Expansion Tank, 1.5 L. Includes:

1 x Coolant Expansion Tank, 1.5 L Capacity
1 x 1/16" NPT connector for 6mm hose

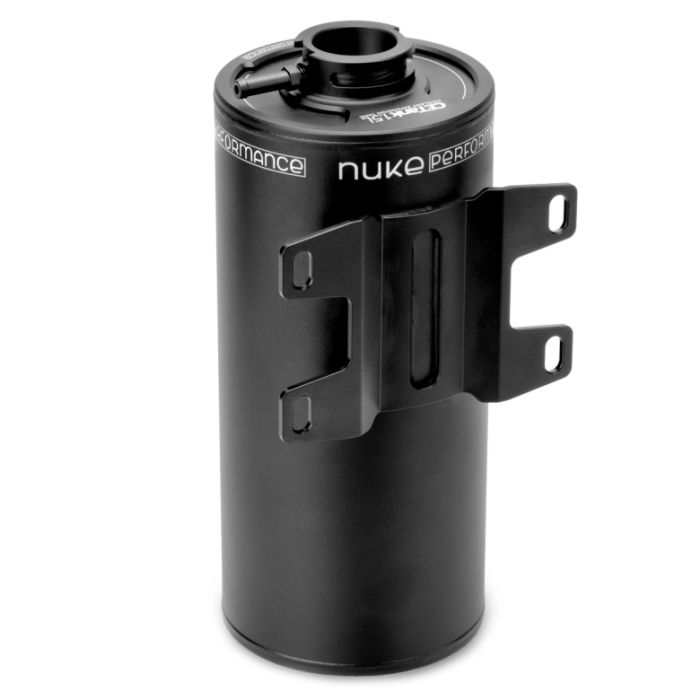

1 x Integrated aluminum mounting bracket
