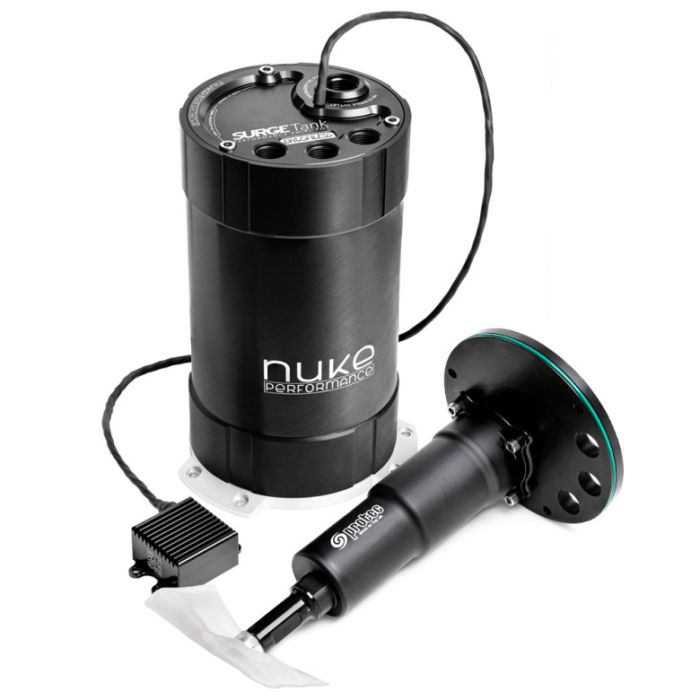

Nuke Performance 2G 3.0-liter fuel surge tank with Protec Cobra FM44300 brushless fuel pump

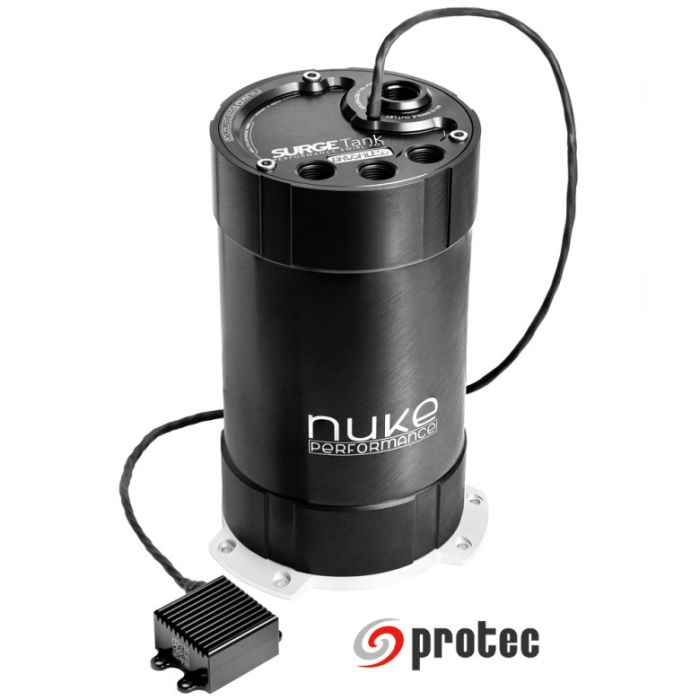

Nuke Performance 2nd Generation 3.0-liter fuel surge tank, with a pre-assembled Protec Cobra brushless fuel pump. This is a state-of-the-art fuel system in a lightweight and universal solution.

The latest and updated version of Nuke Performance's classic fuel surge tank series comes with a pre-assembled brushless fuel pump from the Protec Cobra series.

This is state-of-the-art engineering, with maximum flow and minimal amperage. The Cobra pump is capable of supplying fuel at higher pressures with lower amp draw, thanks to its brushless technology. The Cobra fuel pump is lighter than any other comparable fuel pump and incorporates a custom-designed brushless motor with an ultra-efficient pump mechanism that provides unmatched performance. This is the next level in fuel delivery and comes in a ready-to-use package, installed inside Nuke Performance's lightweight 3.0-liter motorsport surge tank. The Cobra fuel pump from British manufacturer Protec covers all your needs, from 500 hp to 1200 hp. We have selected three different configurations to meet the needs of Nuke Performance customers. All versions are delivered pre-assembled with a Deutsch connector between the surge tank and the external PWM controller. Each fuel pump is equipped with a lightweight and replaceable 65-micron pre-filter for longer service life and exceptional durability. The Cobra fuel surge tank is available with three fuel pump options: FM44300: 350 l/h (92 gal/h) at 5 bar (72 psi) and 7.0 A FM44500: 490 l/h (129 gal/h) at 5 bar (72 psi) and 11.4 A FM60500: 550 l/h at 5 bar (72 psi) and 12.6 A These brushless fuel pumps, featuring high-tech twin-screw technology, offer higher flow and fuel pressure with lower amperage compared to traditional fuel pumps of similar flow. The twin-screw design is also superior to turbine brushless fuel pumps. You can select your preferred fuel pump when placing your order. In combination with Nuke Performance's 2nd generation surge tank, this is the highest possible surge tank with an integrated in-tank fuel pump solution available on the market. And thanks to the brushless technology, it is also quieter than any other of our available solutions.

• Higher flow with lower amp draw
• Longer service life than a traditional fuel pump
• Up to 1200 hp with only 12.6 amps

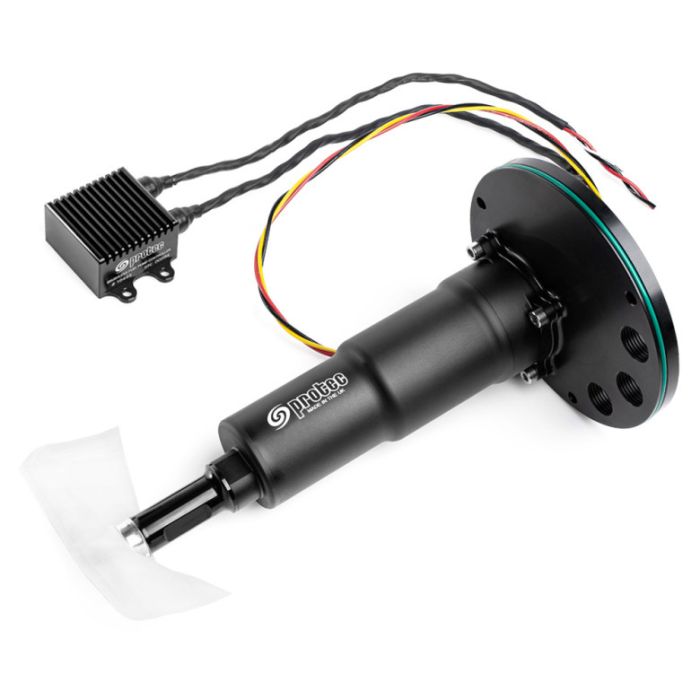

• Twin-screw brushless fuel pump
• Compatibility with different fuels
• Much quieter than other fuel pumps

High-flow fuel pump without the need to modify the fuel tank

Extreme driving, such as drifting, drag racing, and track days where you exceed 2g, can cause fuel starvation. With our fuel surge tank, you minimize the risk of your system failing when running on low fuel levels. With this setup, you can rely on maximum fuel supply, while ensuring a safe solution for your engine and your setup, even in the most demanding conditions. You can mount a high-flow brushless fuel pump inside the tank without needing a major modification to your original fuel tank, making this the only setup you need. The 3.0-liter 2G fuel surge tank with Protec Cobra brushless fuel pump works as a buffer so that the fuel pumps always receive fuel for high performance. Since the engine's return line is directed directly into the fuel surge tank, it stays full at all times. Designed for all types of motorsport use, easy to adapt to all your fuel system needs and requirements. The Cobra surge tank comes ready for AN-10 ORB outlets and AN-8 ORB fuel tank return, inlet, and return connections, with a wide variety of sizes available. Using the large, high-flow AN-10 ORB outlet gives you a single fuel line that does not create limitations for all your needs between 500 and 1200 horsepower.

Outlet connections:

AN-10 ORB to AN-6 male, part number: 700-04-108

AN-10 ORB to AN-8 male, part number: 700-04-109

AN-10 ORB to AN-10 male, part number: 700-04-110

AN-10 ORB to AN-12 male, part number: 700-04-111

Inlet, return, and overflow connections:

AN-8 ORB to AN-6 male, part number: 700-04-104

AN-8 ORB to AN-8 male, part number: 700-04-105

AN-8 ORB to AN-10 male, part number: 700-04-106

AN-8 ORB to AN-12 male, part number: 700-04-107

Complete your high-flow fuel system with Nuke Performance Full Flow series fuel lines, hose ends, and fittings

Nuke Performance offers a wide variety of PTFE and nitrile fuel line systems for all your fuel needs. The 3.0-liter 2G fuel surge tank with Protec Cobra brushless fuel pump is the perfect match for Nuke Performance's Full Flow series fuel lines.

It is available in AN-4 to AN-12 and with a wide variety of fittings and accessories. With a handy selection of fuel line tools, it has never been easier to assemble your fuel system. Developed to meet the high demands of global motorsport. Developed in collaboration with motorsport teams around the world and renowned British fuel pump manufacturer Protec. It is used in all types of motorsport, such as drag racing, drifting, GT racing, time attack, and more. The Cobra brushless fuel pump version is born from a collaboration with Protec and combines the well-known fuel surge tanks with their range of brushless fuel pumps that have revolutionized the market. There is no substitute for Nuke Performance quality. There is no substitute for Nuke Performance quality. Nuke Performance 2G FST Protec Cobra specifications FST with FM60500, part number 150-01-461 FST with FM44500, part number 150-01-442 FST with FM44300, part number 150-01-441 Impeller design: Twin-screw impeller Controller type: PWM (Protec 16443, included) Wire gauge: 14 AWG / 2.5 mm² Pre-filter: 65-micron filter

Fuel compatibility: Gasoline, methanol, ethanol, E85

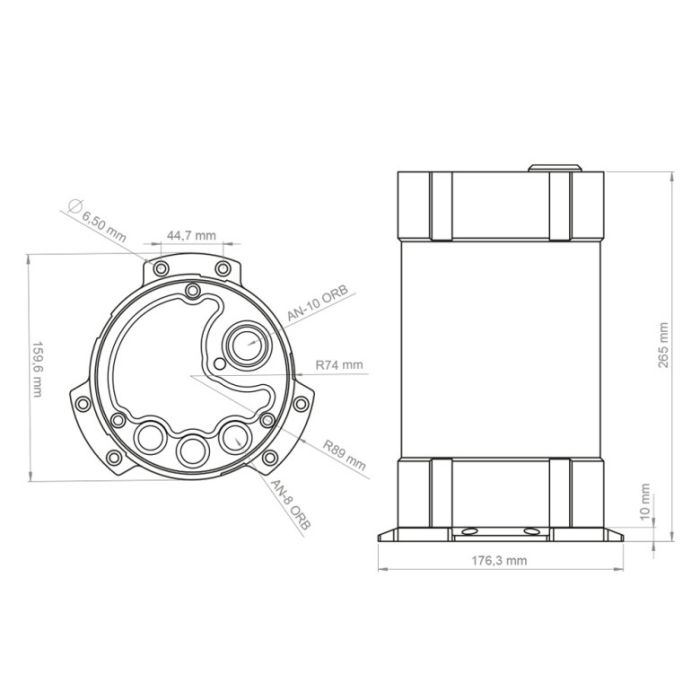

Length: 265 mm (10.43")

FST diameter: Ø 148 mm (5.82")

Bracket diameter: Ø 178 mm (7.00")

Mounting points: 6 x M6 (Ø 6.5 mm / 0.25")

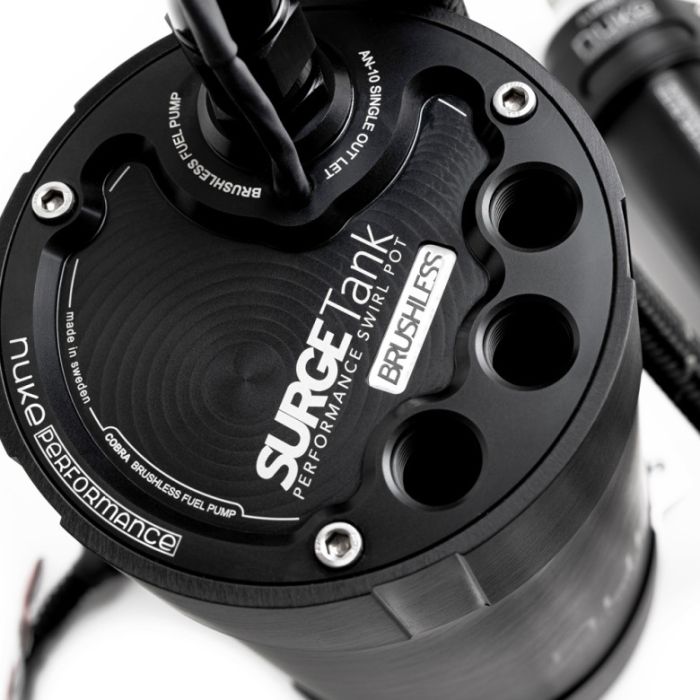

Outlet port: AN-10 ORB thread (see range)

Return port: AN-8 ORB thread (see range)

Inlet port: AN-8 ORB thread (see range)

Overflow outlet port: AN-8 ORB thread (see range)

Surge tank volume: ≈ 3.0 liters (0.8 gallons)

Weight: 3350 g (7.38 lb)

Protec Cobra fuel surge tank includes:

1 x 3.0-liter fuel surge tank

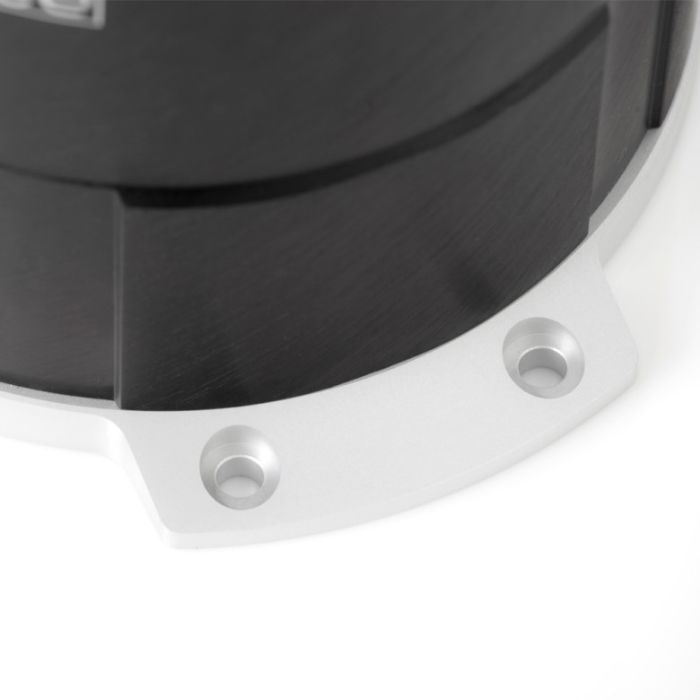

1 x aluminum mounting bracket with 6-bolt pattern

1 x Protec Cobra brushless fuel pump (of your choice)

1 x 65-micron fuel pre-filter

1 x Deutsch connector, pre-assembled

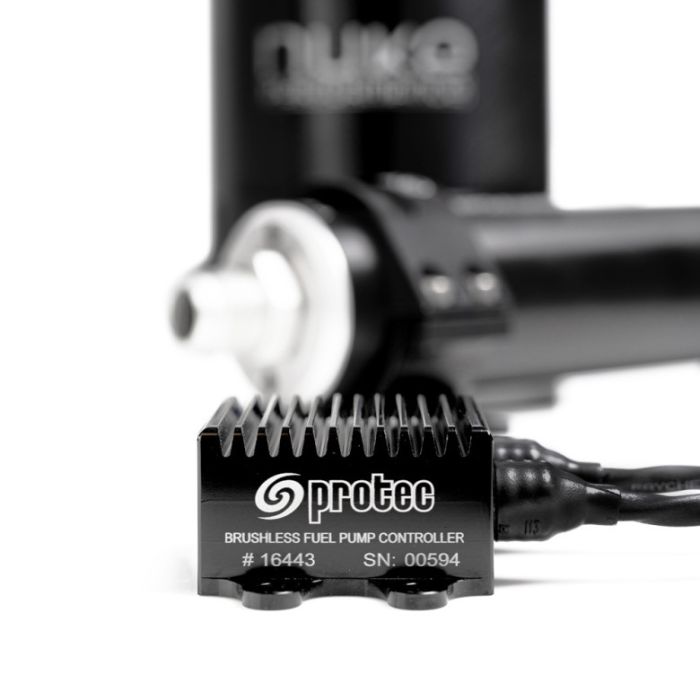

1 x PWM controller with aluminum housing

* The fuel surge tank is delivered pre-assembled, ready to use

SPECIFICATIONS

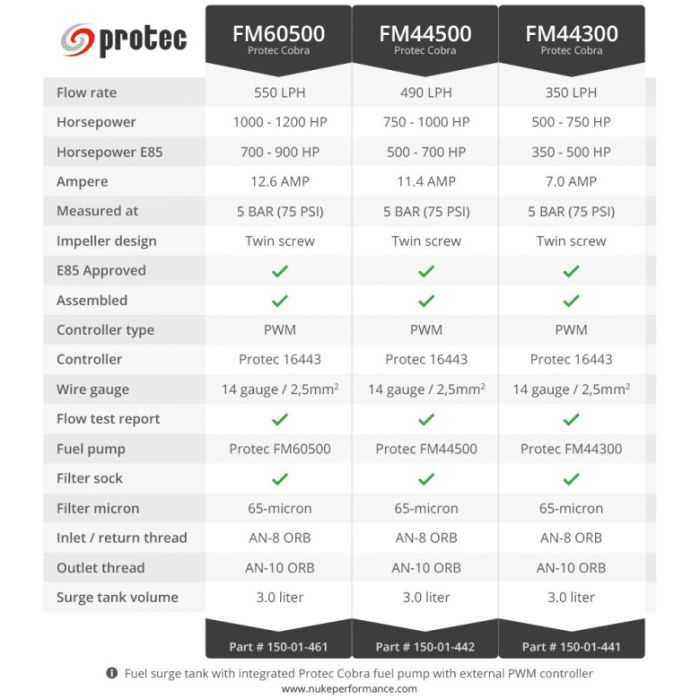

Nuke Performance 2G FST Protec Cobra specifications

FST with FM60500 Part No. 150-01-461

FST with FM44500 Part No. 150-01-442

FST with FM44300 Part No. 150-01-441 Impeller design: Twin-screw impeller Controller type: PWM (Protec 16443, included) Wire gauge: 14 AWG / 2.5 mm² Pre-filter: 65-micron filter included Fuel compatibility: Gasoline, methanol, ethanol, E85 Length: 265 mm (10.43") FST diameter: Ø 148 mm (5.82") Bracket diameter: Ø 178 mm (7.00") Mounting points: 6 x M6 (Ø 6.5 mm / 0.25")

Outlet port, AN-10 ORB thread, see range

Return port, AN-8 ORB thread, see range

Inlet port, AN-8 ORB thread, see range

Overflow outlet port, AN-8 ORB thread, see range

Surge tank volume ≈ 3.0 liters (0.8 gallons)

Weight 3350 g (7.38 lb)

Protec Cobra fuel surge tank includes:

1 3.0-liter fuel surge tank

1 aluminum mounting bracket with 6-bolt pattern

1 Protec Cobra brushless fuel pump (of your choice)

1 65-micron fuel pre-filter Filter

1 Deutsch connector, pre-assembled

1 PWM controller with aluminum housing

* The fuel surge tank is delivered pre-assembled, ready to use

Download product documentation (.pdf)
