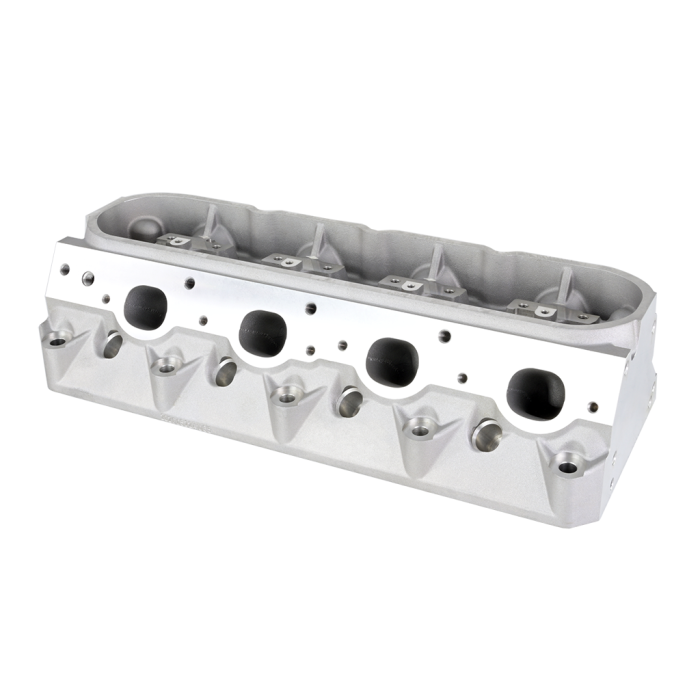

FMIC.EU high-performance cylinder heads for LS1 engines

The FMIC.EU high-performance cylinder head has been designed for LS1 engines, offering optimal performance on both the track and the road. Manufactured from 6061-T6 aluminum, it offers high mechanical strength, heat resistance, and precision CNC machining. The T6 thermal treatment process increases the hardness and dimensional stability of the material, ensuring durability and reliability under extreme operating conditions. The optimized shape of the intake ports and combustion chamber provides excellent airflow. The enlarged design of the intake and exhaust ports allows for more efficient cylinder filling, which translates into greater airflow efficiency and better performance across the entire rev range, without loss of torque at low and mid RPM. The exhaust port outlet is aligned with the valve, allowing for more uniform flow and greater exhaust system efficiency.

• Material: 6061-T6 aluminum with T6 heat treatment • Combustion chamber volume: 68 cc • Intake port volume: 240 cc • Intake port dimensions: 25 x 80 mm • Exhaust port volume: 100 cc • Exhaust port dimensions: 42 x 36 mm • Spark plug position: Original • Intake valve diameter: 45 mm • Exhaust valve diameter: 35 mm • Valve stem diameter: 8 mm • Valve spring seat inner diameter: 34 mm • Valve guide material: Manganese bronze • Valve guide outer diameter: 12.50 mm - 14 mm at the base

Design advantages: • High strength and stability thanks to 6061-T6 aluminum construction • Improved airflow thanks to optimized port geometry • Better engine response at high RPM • Durable and wear-resistant manganese bronze valve guides • Perfect fit for factory LS1 components

Application: Designed for LS1 engines with Cathedral Port type intake manifolds, used in high-performance Chevrolet, Pontiac, and GM vehicles. Ideal for users seeking great durability, precise manufacturing, and increased power without sacrificing reliability.
