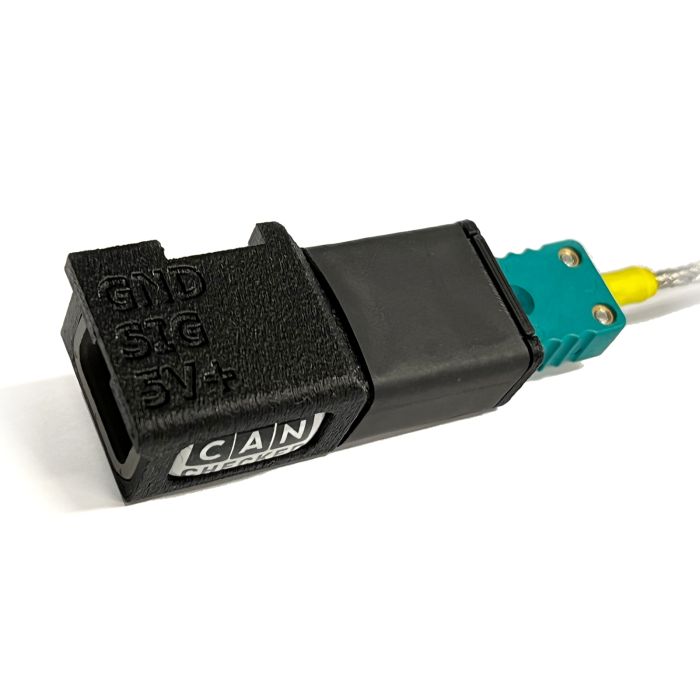

CANchecked TCC01 Thermocouple Converter and DTM 3-way

Thermocouple Converter (TCC01) with Receptacle

The TCC01 is a thermocouple amplifier, a device that amplifies and converts the signal from a K-type sensor.

With our TCC01, you can easily connect your exhaust gas temperature sensor. For example:

Insert the K-type probe into the converter and at the other end, use the DTM connector for power (5V), ground, and the signal for your control unit or display.
TCC01 Features

Reliable thermocouple amplifier
K-type input with cold junction compensation
DTM06-3S connector
Standard mini thermocouple connectors
Mounting tab for M6 screw or flange attachment
Linear temperature curve from 0 to 1000 °C

Package Contents

TCC01 in housing
DTM connector with latch
3 crimping pins
3 pre-crimped connection cables

Compatibility with Various Devices

Any device with an analog input for 0-5V signals can be used as a receiver, for example:

AEM
Ecumaster
Emtron
DTAfast
Haltech
LinkECU
KMS van Kronenburg
MaxxECU
MBE
Megasquirt
Motec
Syvecs
VEMS

The K-type converter can be used not only for measuring exhaust gas temperature but also for liquids (1mm thermocouples) and gases (0.5mm thermocouples). Technical Specifications

Power consumption of only 180 µA

Very accurate resolution with 4 mV per °C

Calibration: 0 V = 0 °C (32 °F) and 5 V = 1250 °C (2282 °F)

Maximum accuracy: 2% deviation

Internal cold junction compensation

For measuring gases, liquids, and other fluids

Compatible with various K-type elements (including diameters of 0.5, 1, 3, and 5 mm)

Installation

Installing the TCC01 thermocouple converter (thermocouple amplifier) is simple. It should be placed in a dry, moderately temperate location, such as behind the firewall.

You can use the integrated tab for mounting. Thanks to its special design, it is possible to connect multiple TCC01 modules side by side. For maximum stability, you can attach the included tab to the TCC01 module with adhesive.

Our displays come pre-configured for TCC01 connection. Simply connect the signal to AIN2.
Multiple TCC01 Modules

Often, you will need two or more modules, such as in the case of twin-scroll turbo manifolds. In these cases, you can easily stack them.

Of course, when using multiple K-type probes, you can also opt for our TCCXX series and directly write measurements to the CAN bus. These are available as TCC04, TCC06, TCC08, and TCC10.
