Innovate LC-2 controller, Innovate 3877 wideband with module

Innovate LC-2 Controller, Innovate Wideband with Module

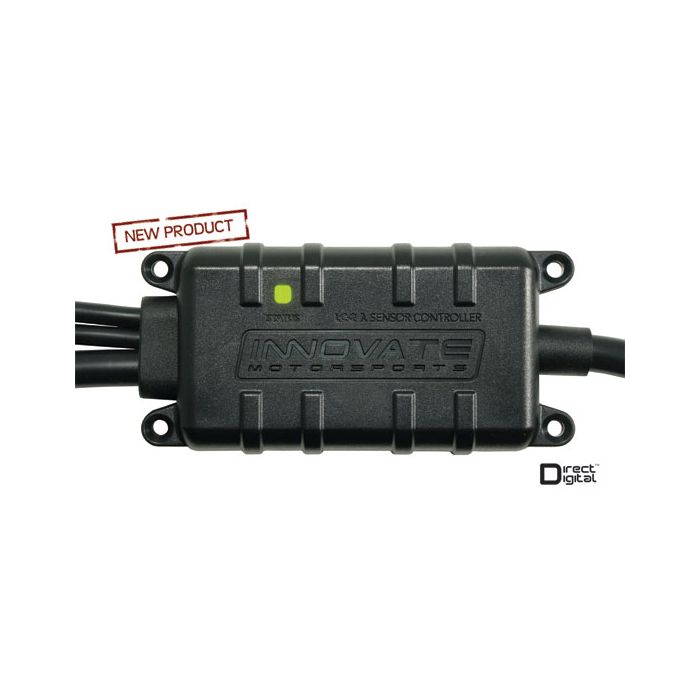

The evolution of the world’s most popular stand-alone digital O2 sensor controller, the Innovate Motorsports LC-2, builds on the LC-1’s legacy, adding simplicity and state-of-the-art technology. The LC-2 utilizes the most advanced 100% digital wideband air/fuel ratio technology on the market! The LC-2’s patented, award-winning DirectDigital™ signal processing technology provides accurate data on how rich or lean an engine’s fuel mixture is at any load. The LC-2’s self-calibrating circuit also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 fully programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges. The LC-2 can also be daisy-chained for cost-effective individual cylinder monitoring and is fully compatible with our Modular Tuning System (MTS). Key features:

KEY FEATURES

Patented DirectDigital™ wideband technology

Wideband O² sensor compatible with ALL fuel types

Ability to calibrate O² sensor for maximum accuracy

Integrated dual-color (green/red) status LED

*2 configurable 0-5V linear analog outputs

Optional sensor cable lengths available: 3 ft, 8 ft (included), and 18 ft

Positive locking connectors for all connections
Innovate MTS serial input/output

Serial connection to your PC
Real-time data display on screen and/or with powerful LogWorks software

*Two fully programmable linear analog outputs for connecting to analog gauges, dynamometer computers, ECUs, auxiliary controllers, and other devices with analog inputs. Analog output #1 (yellow) is configured as 0 volts = 7.35 AFR and 5 volts = 22.39 AFR; Analog output #2 (brown): 1.1 volts = 14 AFR and 0.1 volts = 15 AFR. With the included LM Programmer software, the user can also configure these analog outputs.

Specifications

Power

Operating Voltage
9.8V to 16V DC
Input Current, Initial O² Heater Warm-up
2.0 A nominal, 3 A max

Input Current, Normal O² Operation

0.8 A nominal, 1.1 A max

Environmental Conditions

Operating Ambient Temperature
0°F to 140°F (−17.78°C to 60°C)
Storage Ambient Temperature

−40°F to 185°F (−40°C to 85°C)
Water Resistance
Splash-proof, not submersible

Sensors

Supported Types
Bosch™ LSU4.2 and Bosch™ LSU4.9
Bosch™ Heater Control
Digital PID via pump cell impedance

Measurements

Lambda
0.5 to 8.0
Air/Fuel Ratio
7.35 to 117 (gasoline), programmable fuel type

Accuracy

For Lambda
+/- 0.007 accuracy (0.1 AFR)

Response Time

Free Air to Lambda
< 100ms (< 25ms typical)

Inputs

Serial
1, Innovate MTS compatible

Outputs

Analog

2, 0-5V DC, 10-bit resolution, programmable

Serial

1, Innovate MTS compatible

Communication

Serial
MTS (Innovate Modular Tuning System) compatible
