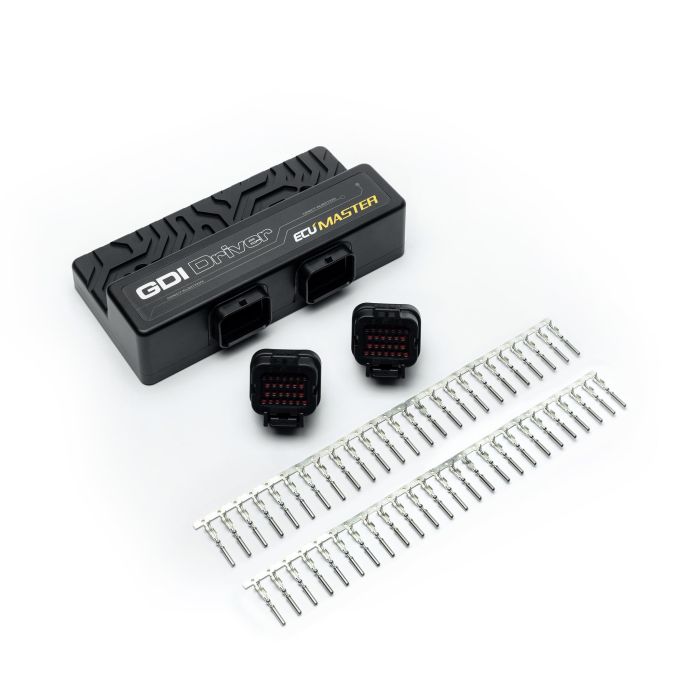

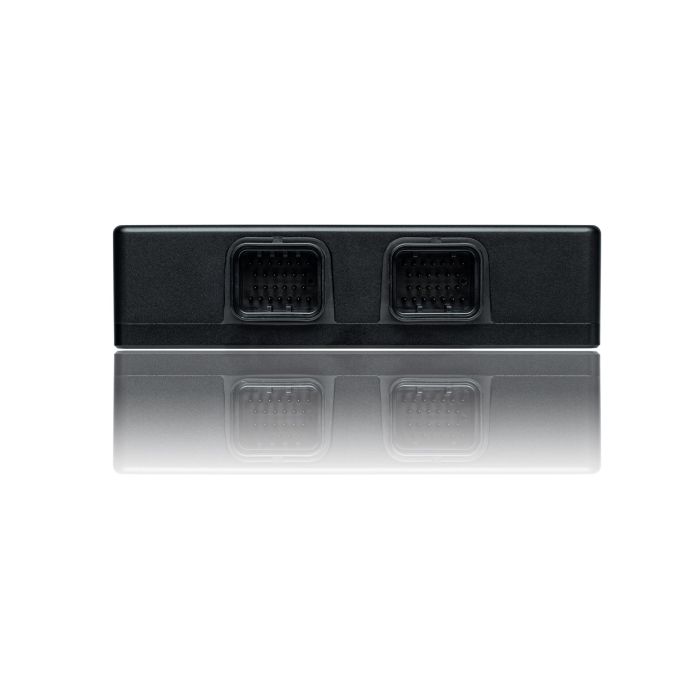

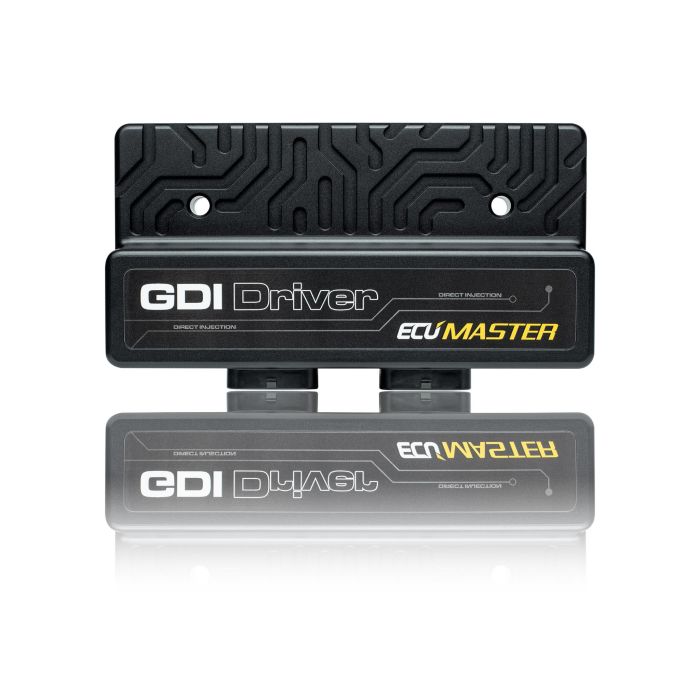

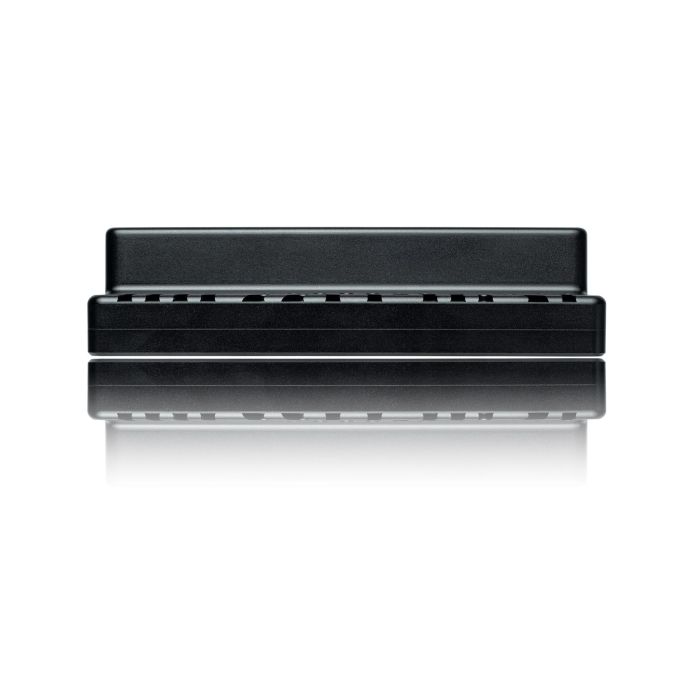

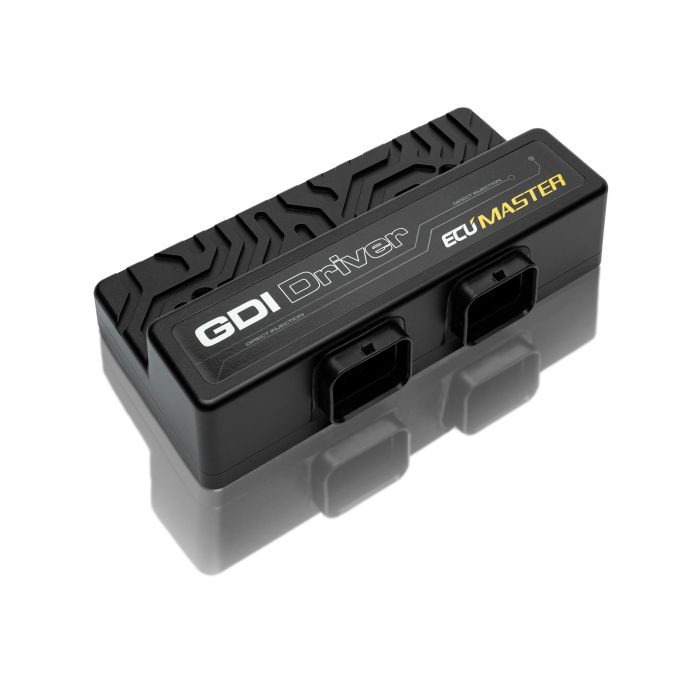

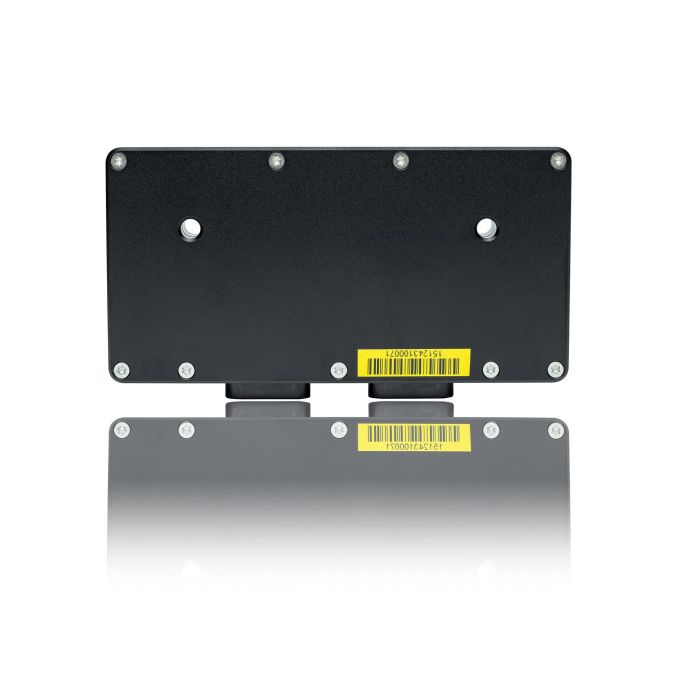

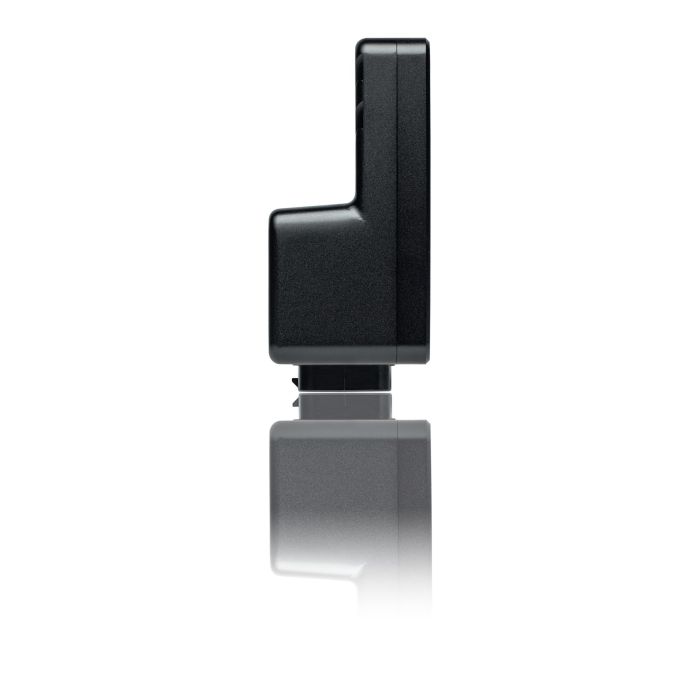

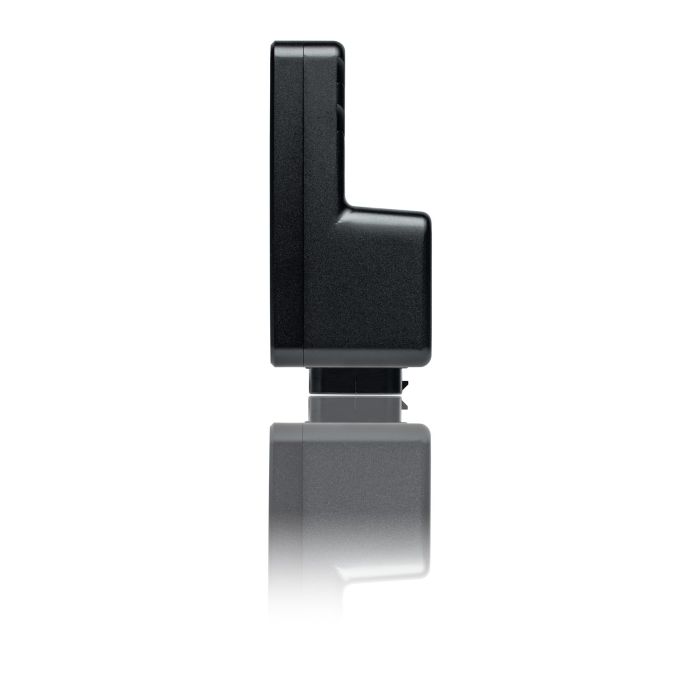

Ecumaster GDI Controller

The GDI Driver is a high-performance aftermarket controller designed to manage modern gasoline direct injection systems. Capable of controlling up to 8 peak-and-hold injectors and 2 high-pressure fuel pumps, this module delivers precision and reliability for advanced engine setups.

Key Features:

Injector Control: Converts 12 V to up to 70 V for rapid injector response and precise control.

Pump Valve Management: Supports dual 12 V high-pressure pump valves.

SENT Sensor Compatibility: Supports up to 4 SENT sensors.

CAN Bus Connectivity: Provides diagnostic data for real-time monitoring and data logging.

While designed for compatibility with GDI strategy ECUs, the GDI Driver is specifically optimized for use with EMU PRO. When combined, this pairing leverages advanced algorithms and hardware to deliver unparalleled precision in fuel delivery. To simplify setup, we provide base maps for commonly used engines, including the VAG EA888 Gen 3 and the Ford 1.5L Dragon GTDI engine. The maps are designed for both the EMU PRO and GDI Driver, ensuring seamless integration and efficient tuning. Additional base maps will be added in future updates.

Specifications:

Supports up to 8 GDI (70V) peak-and-hold injectors

8 low-side outputs

4 high-side outputs

Current measurement

Up to 2 peak-and-hold injectors support for high-pressure pump valves

2 pairs of low- and high-pressure outputs

Current measurement

Adjustable peak-and-hold phase currents and durations

4 configurable SENT buses

8 0-5 V analog outputs for SENT signal conversion

1 CAN bus for configuration, diagnostics, and communication with EMU PRO

8 digital inputs for controlling injectors from EMU PRO outputs

2 digital inputs for controlling high-pressure pump valves from EMU PRO outputs

Superseal connector

IP65 waterproof enclosure

EMU PRO Strategy:

Pressure control for up to 2 high-pressure fuel lines
Adjustable injection timing

Control of up to 16 injectors (8 direct injectors via GDI Driver and 8 port injectors connected directly to EMU PRO)
Configurable fuel injection split between port and direct rails

Support for multiple fuel pump cam types
Support for multiple high-pressure pumps
Variable target rail pressure
