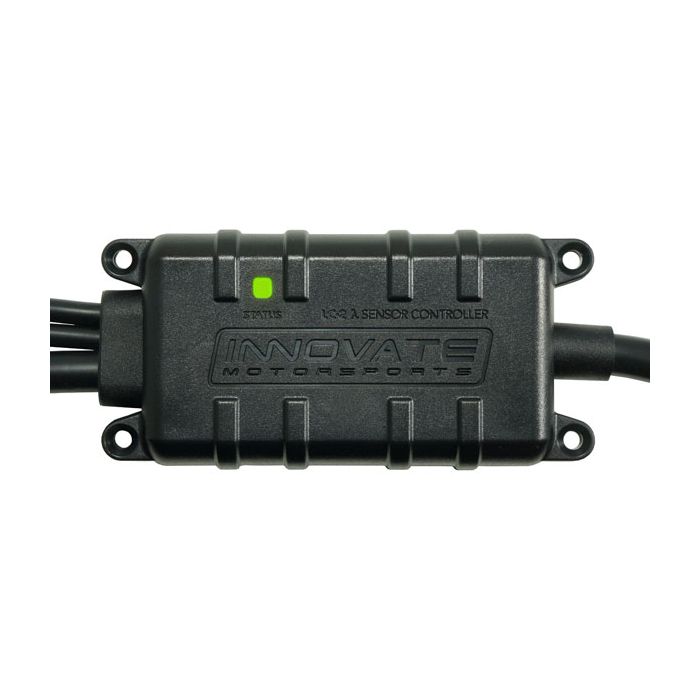

LC-2 Broadband Controller, 2.4m Innovate Cable (Sensorless)

LC-2 Wideband Controller, 8' Innovate Cable (No Sensor) The evolution of the world's most popular stand alone digital O2 sensor controller, the Innovate Motorsports LC-2, builds on the legacy of the LC-1 by adding simplicity and leading edge technology. The LC-2 utilizes the most advanced 100% digital wideband air/fuel ratio technology on the market! The LC-2’s patented and award-winning DirectDigital™ signal processing technology provides accurate real-time engine air/fuel ratio data (rich or lean) at any load. The LC-2’s self-calibrating circuit also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 fully programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, stand-alone ECUs, and gauges. The LC-2 can also be daisy chained for individual, cost effective per-cylinder monitoring, and is fully compatible with our Modular Tuning System (MTS). Key Features: KEY FEATURES Patented DirectDigital™ wideband technology Wideband O² sensor compatible with ALL fuel types Ability to calibrate O² sensor for maximum accuracy Built-in dual color (Green/Red) status LED *2 configurable linear 0-5 V analog outputs Optional sensor cable lengths available: 3', 8' (included), and 18' Positive lock connectors for all connections Innovate MTS serial in/out Serial connection to your PC Real-time data display on screen and/or with powerful LogWorks software *Two fully programmable linear analog outputs for connecting to analog gauges, dyno computers, ECUs, ancillary controllers, and other devices with analog inputs. Analog Output 1 (yellow) is configured as 0 Volts = 7.35 AFR and 5 Volts = 22.39 AFR; Analog Output 2 (brown) is configured as 1.1 Volts = 14 AFR and 0.1 Volts = 15 AFR. With the provided LM Programmer software, the user can also configure these analog outputs. Specifications Power Operating Voltage 9.8V to 16V DC Input Current, O² heater initial warm-up 2.0A nominal, 3A max. Input Current, O² normal operation 0.8A nominal, 1.1A max. Environmental Operating Ambient Temp. 0°F to 140°F (−17.78°C to 60°C) Storage Ambient Temp. −40°F to 185°F (−40°C to 85°C) Water Resistance Splash resistant, not submersible Sensors Supported Types Bosch™ LSU4.2 & Bosch™ LSU4.9 Bosch™ Heating Control Digital PID using pump cell impedance Measurements Lambda 0.5 to 8.0 Air/Fuel Ratio 7.35 to 117 (gasoline), programmable fuel type Accuracy For Lambda +/- 0.007 accuracy (0.1 AFR) Response Time Free air to Lambda < 100ms (< 25ms typical) Inputs Serial 1, Innovate MTS compatible Outputs Analog 2, 0-5 V DC, 10-bit resolution, programmable Serial 1, Innovate MTS compatible Communication Serial MTS (Innovate Modular Tuning System) compatible Set includes: - LC-2 Controller - 8ft Sensor Cable - Programming Cable - Manual DOES NOT INCLUDE O² SENSOR OR BUNG.
