Nuke Performance Full Flow PTFE Hose End Fitting 45 Degree AN8

Nuke Performance Full Flow PTFE Hose End Fittings. Available in AN-6, AN-8, AN-10, and AN-12. High-quality, lightweight full-flow hose end fittings for PTFE-lined fuel hoses. Nuke Performance offers a wide range of hose end fittings. With the PTFE line, you get the perfect solution for all types of fuel, including alcohol-based fuels such as ethanol.

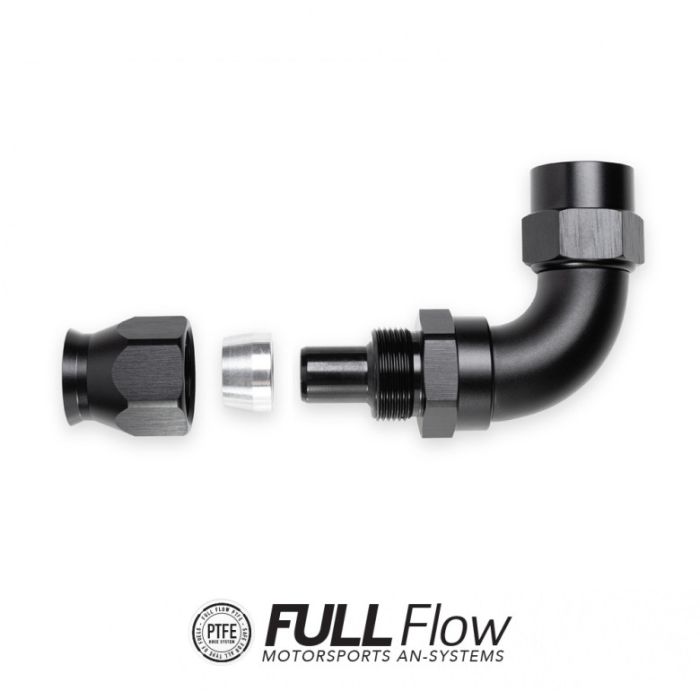

Safe for all types of fuel, including ethanol. For Nuke Performance Full Flow PTFE Fuel Hoses. Available in AN-6 / AN-8 / AN-10 / AN-12. Straight / 30 / 45 / 60 / 90 / 120 / 150 / 180 degrees. Includes an aluminum olive insert. Longer lifespan than a conventional fuel hose.

Nuke Performance’s wide selection of hose end fittings is of the highest quality and available in sizes from AN-6 up to AN-12 and in a variety that includes straight to 180-degree versions. The full-flow PTFE fuel hose works as an economic protection for your injectors, filters, and fuel pumps.

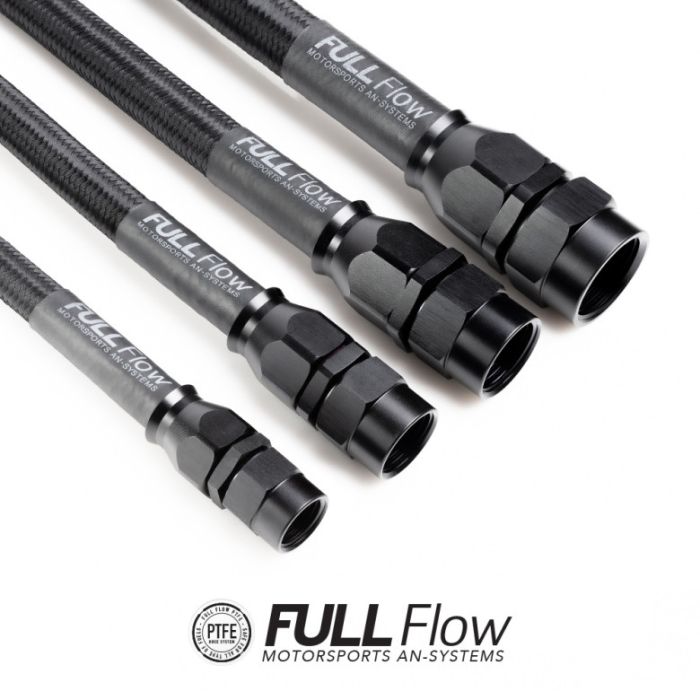

Black nylon braided PTFE-lined fuel hose for motorsports. The inner Teflon lining resists all types of fuel, including alcohol-based fuels such as ethanol, methanol, and race fuel. Nuke Performance’s PTFE fuel hose has a much longer service life as it does not degrade over time as conventional nitrile rubber fuel hoses do. This protects your injectors, fuel filters, and in the long run, your fuel pumps from clogging and damage caused by the dissolved interior of nitrile hoses. Nuke Performance PTFE fuel hose is carbonized for increased conductivity, which is crucial for motorsports fuel systems. Nuke Performance’s black nylon braided PTFE-lined fuel hose is available in various sizes.
The PTFE lining on the inside of the fuel hose acts as a vapor barrier. The Nuke Performance PTFE fuel hose features an internal Teflon (PTFE) lining that acts as a vapor barrier when using all types of fuels. This is especially useful when using alcohol-based fuels, which are normally carried through a traditional nitrile or rubber fuel hose. It is very practical for installing fuel hoses in the driver's cabin as well as in the workshop between races and race seasons.

Exceptional flow capacity and increased durability for motorsports. The Nuke Performance Full Flow PTFE line utilizes a full-flow design that allows the fuel system to be designed with minimal flow loss. Thanks to its three-layer design, it has a much smaller outer diameter than a conventional nitrile fuel hose. The PTFE lining prevents the hose from hardening and will not fracture or crack. This helps prevent fuel leakage and the smell that would occur when using a common nitrile fuel hose. AN-6 Full Flow PTFE Fuel Hose. Part No: 820-02-106 - 820-02-606. AN-8 Full Flow PTFE Fuel Hose. Part No: 820-02-108 - 820-02-608. AN-10 Full Flow PTFE Fuel Hose. Part No: 820-02-110 - 820-02-610. AN-12 Full Flow PTFE Fuel Hose. Part No: 820-02-112 - 820-02-612.

Developed in response to the high demands of world motorsports. In collaboration with motorsports teams worldwide, this range of hose ends and fuel hoses is ready to provide you with the highest quality even under demanding conditions. The Full Flow range of hose fittings is manufactured with the same quality as all other parts of Nuke Performance's lightweight motorsport range. Nuke Performance quality is second to none!

Wide variety of tools and accessories: To make the installation of the fittings and the fuel system as easy as possible, Nuke Performance offers a wide variety of practical tools and accessories for assembling fuel hoses. The V-shaped aluminum adjustable wrench will revolutionize the assembly of your hose ends. Adjustable aluminum wrench AN-4 to AN-16. Part No: 700-30-105. Aluminum AN fitting jaws. Part No: 700-30-201. Aluminum AN-6/8/10/12 wrenches. Part No: 700-30-101/2/3/4. Spare aluminum olive inserts. Part No: 810-20-106/8/10/12.

Hose end series:

810-01-106 - 810-18-112

Fuel hose series:

820-02-106 - 820-02-612

Available sizes:

AN-6 / AN-8 / AN-10 / AN-12

Available versions:

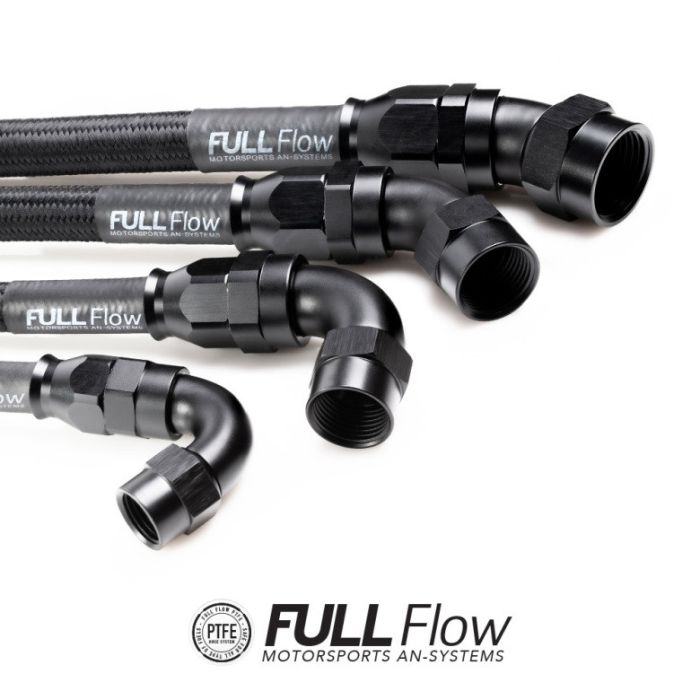

Straight / 30 / 45 / 60 / 90 / 120 / 150 / 180

Fuel compatibility

Gasoline, methanol, ethanol, E85, race fuel, diesel, oil

Hose end material
Anodized aluminum housing and olive

Fuel hose inner lining
PTFE (Teflon) inner lining

Fuel hose braiding
Stainless steel and nylon

Temperature range

-70 °C to 250 °C (-94 °F to 480 °F)

Conductive inner lining
YES

For motorsport use
YES
