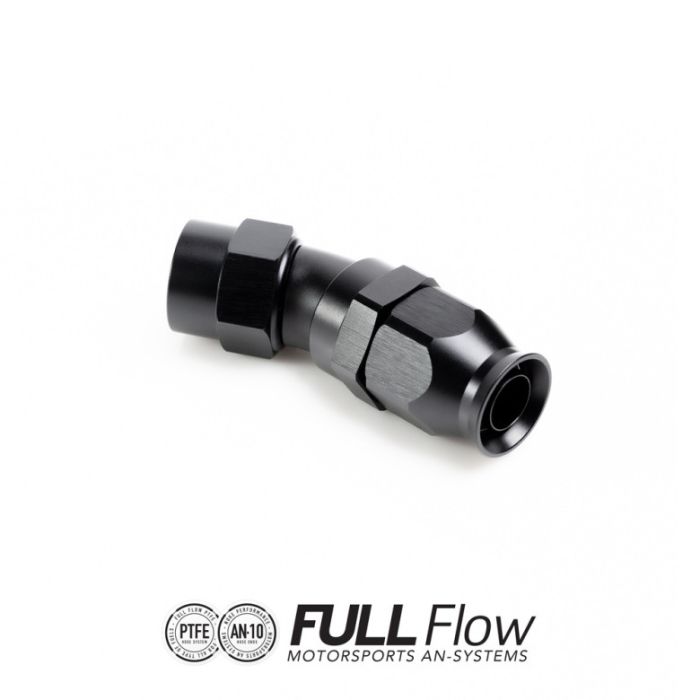

Nuke Performance AN12 30-degree full-flow PTFE hose end connector

Nuke Performance Full Flow PTFE hose end fittings. Available in AN-6, AN-8, AN-10, and AN-12. Lightweight, high-quality full flow hose end fittings for PTFE-lined fuel hoses. Nuke Performance offers a wide range of hose end fittings. With the PTFE line, you get the perfect solution for all types of fuels, including alcohols like ethanol.

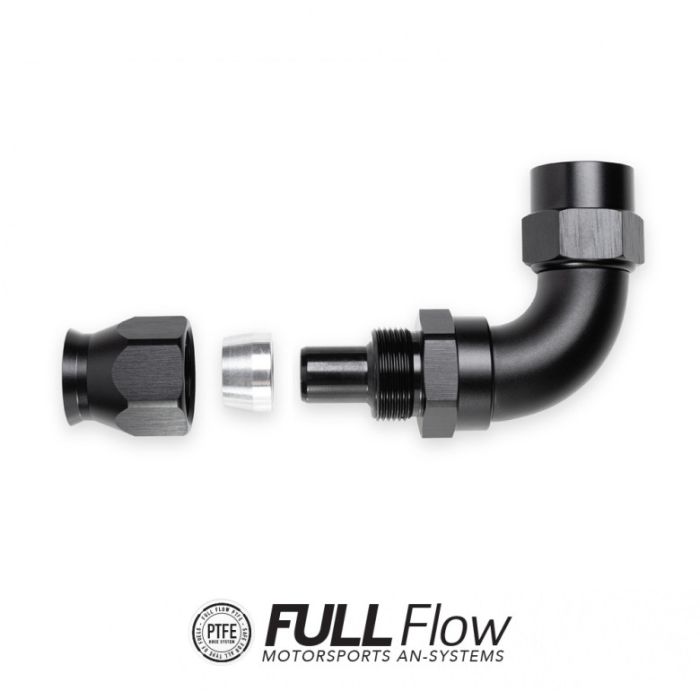

Safe for all types of fuel, including ethanol. For Nuke Performance full flow PTFE fuel hoses. Available in AN-6 / AN-8 / AN-10 / AN-12. Straight / 30 / 45 / 60 / 90 / 120 / 150 / 180 degrees. Includes an aluminum olive insert. Longer service life than a conventional fuel hose.

The wide selection of Nuke Performance hose end fittings is of the highest quality and is available in sizes from AN-6 to AN-12 and in a variety that includes straight and 180-degree versions. The full flow PTFE fuel hose acts as an economical protection for your fuel injectors, filters, and pumps.

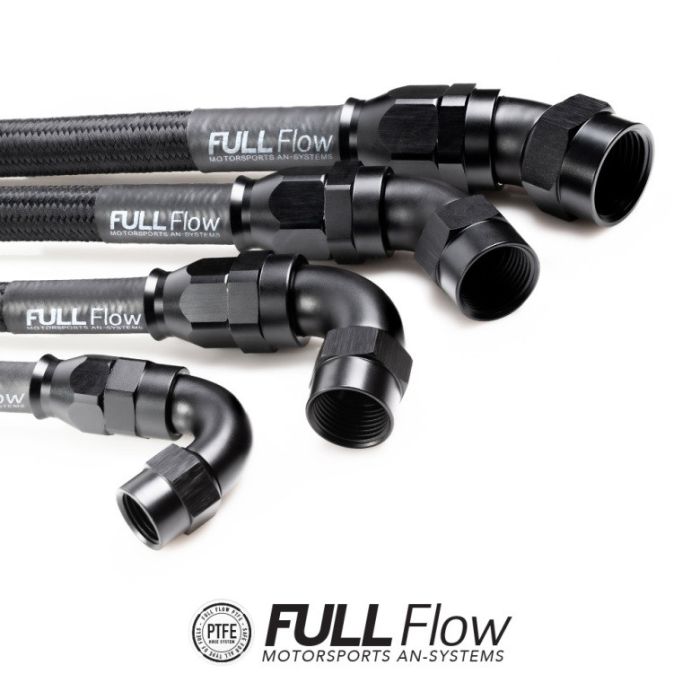

Black nylon braided PTFE-lined fuel hose for motorsport. The Teflon inner liner resists all types of fuels, including alcohols like ethanol, methanol, and race fuels. The Nuke Performance PTFE fuel hose has a much longer service life, as it does not degrade over time like conventional nitrile rubber fuel hoses. This protects your injectors, fuel filters, and in the long run, your fuel pumps from clogs and damage caused by the dissolved interior of nitrile hoses. The Nuke Performance PTFE fuel hose is carbon-infused for increased conductivity, which is crucial for motorsport fuel systems. The Nuke Performance black nylon braided PTFE-lined fuel hose is available in various sizes.
The PTFE liner inside the fuel hose acts as a vapor barrier. The Nuke Performance PTFE fuel hose features an internal Teflon (PTFE) liner that acts as a vapor barrier when using all types of fuels. This is especially useful when using alcohol-based fuels, which are normally transported through a traditional nitrile or rubber fuel hose. It is very practical for installing fuel hoses in the driver's cockpit, as well as in the workshop between races and competition seasons.

Exceptional flow capacity and increased durability for motorsport. The Nuke Performance Full Flow PTFE line uses a full flow design that allows the fuel system to be designed with minimal flow loss. Thanks to its three-layer design, it has a much smaller outer diameter than a conventional nitrile fuel hose. The PTFE liner prevents the hose from hardening and it will not fracture or crack. This helps prevent fuel leaks and the smell that would occur when using a common nitrile fuel hose. AN-6 Full Flow PTFE Fuel Hose. Part Number: 820-02-106 - 820-02-606. AN-8 Full Flow PTFE Fuel Hose. Part Number: 820-02-108 - 820-02-608. AN-10 Full Flow PTFE Fuel Hose. Part Number: 820-02-110 - 820-02-610. AN-12 Full Flow PTFE Fuel Hose. Part Number: 820-02-112 - 820-02-612.

Developed in response to the high demands of world motorsport. In collaboration with motorsport teams from around the world, this range of hose ends and fuel hoses is ready to provide you with the highest quality even under demanding conditions. The Full Flow range of hose fittings is manufactured to the same quality as every other part in the Nuke Performance lightweight motorsport range. Nuke Performance quality is second to none!

Wide variety of tools and accessories: To make the installation of fittings and the fuel system as simple as possible, Nuke Performance offers a wide variety of practical tools and accessories for fuel hose assembly. The aluminum V-shaped adjustable wrench will revolutionize the assembly of your hose connections. Aluminum AN Adjustable Wrench (AN-4 to AN-16) Part No: 700-30-105. Aluminum Soft Jaws for AN fittings (Part No: 700-30-201). Aluminum AN Wrenches (AN-6/8/10/12) Part No: 700-30-101/2/3/4. Spare Aluminum Olive Inserts (Part No: 810-20-106/8/10/12).

Nuke Performance Full Flow PTFE hose fittings are available in AN-6, AN-8, AN-10, and AN-12. The matching braided PTFE fuel hose is available in pre-cut lengths of 1m, 2m, 4m, and 6m (3-20 ft).

Specifications of Nuke Performance PTFE hose fittings/fuel hose. For more information on specifications, please refer to the product manual.

Hose End Series No.

810-01-106 - 810-18-112

Fuel Hose Series No.

820-02-106 - 820-02-612

Available sizes

AN-6 / AN-8 / AN-10 / AN-12

Available versions

Straight / 30 / 45 / 60 / 90 / 120 / 150 / 180

Fuel compatibility

Gasoline, Methanol, Ethanol, E85, Race fuel, Diesel, Oil

Hose end material
Anodized aluminum housing and olive

Fuel hose inner liner
PTFE (Teflon) inner liner

Fuel hose braiding
Stainless steel and nylon

Temperature range

-70°C to 250°C (-94°F to 480°F)

Conductive inner liner
YES

For motorsport use
YES
