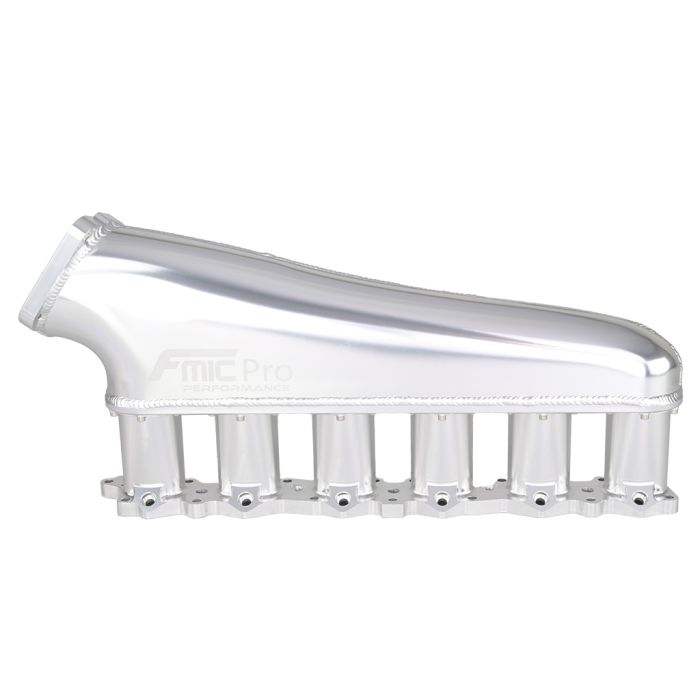

FMIC.Pro intake manifold for Nissan RB26DETT 2.6L R6 CNC

FMIC.Pro intake manifold for Nissan RB26DETT 2.6L I6 CNC

One of the most advanced, high-performance intake manifolds available for the RB26DETT engine from the FMIC.Pro product line. Designed for maximum airflow, high durability, and uncompromising high-power builds. The runners are CNC-machined to increase structural strength and stability.

Conversion: Designed for converting the factory ITB (individual throttle body) system to a single throttle body configuration.

Features a welded aluminum construction with a bolt-on modular design. The plenum, runner section, and flange are separate components joined with bolts, allowing for easy disassembly, maintenance, and modification depending on the engine and forced induction setup.

The body is manufactured from high-quality aluminum, precision-welded, and CNC-machined to ensure structural rigidity and resistance to high boost pressures and operating temperatures. This solution performs perfectly in high-power setups, including applications with large turbochargers.
The intake runner geometry (intake trumpets) and plenum chamber were developed using CFD analysis, aimed at achieving uniform airflow distribution across all cylinders, reducing pressure drops, and improving flow efficiency under high engine loads.

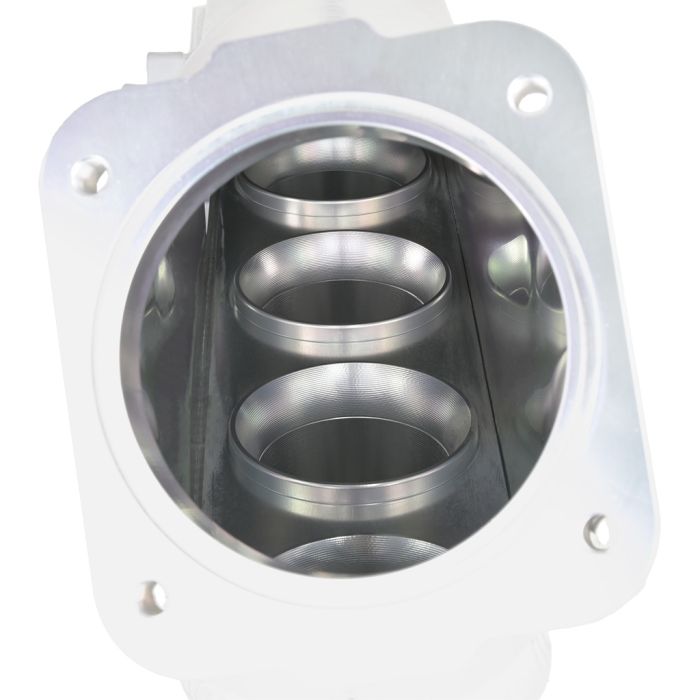

The individually bolted-in intake trumpets help stabilize and organize airflow, resulting in more uniform cylinder filling and better utilization of the turbocharging system.
The manifold is designed for high-power RB26DETT engines, for both road and track use.
Key features:

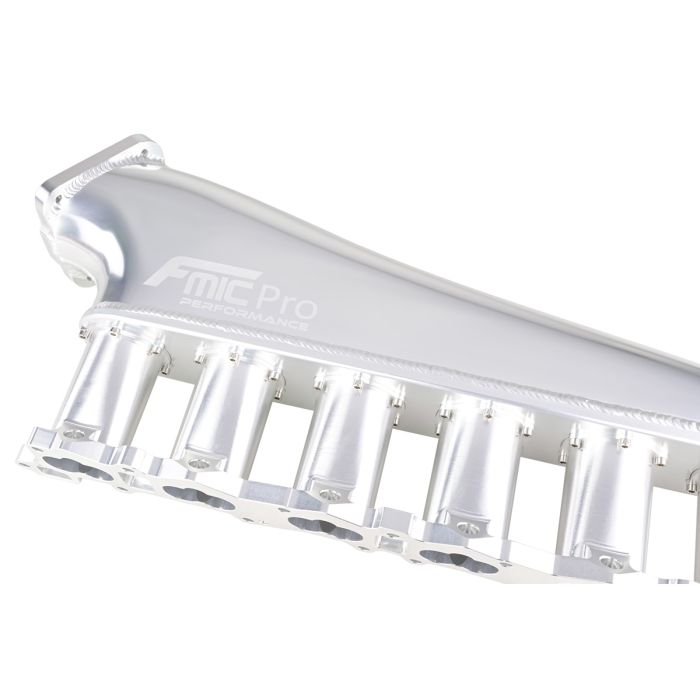

- CNC-machined runners

- Modular multi-piece construction

- Welded aluminum structure

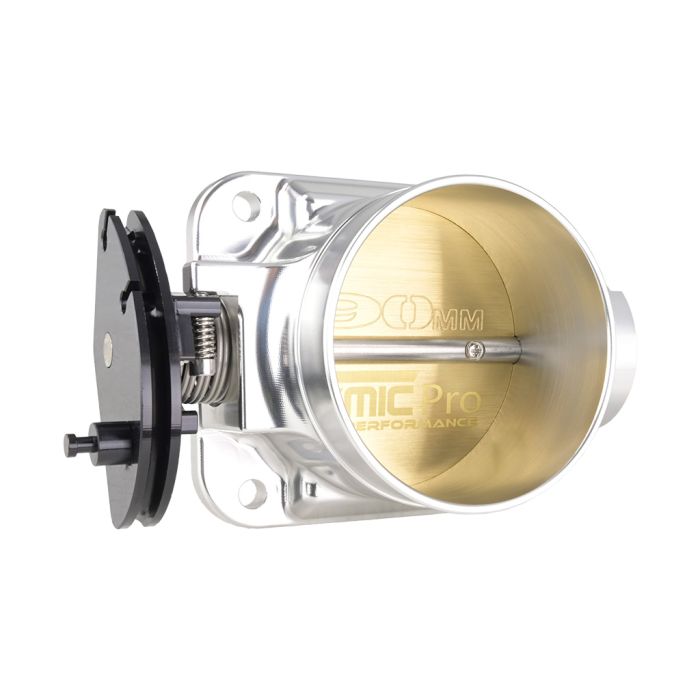

- 90mm throttle body compatible

- Designed for high-boost applications

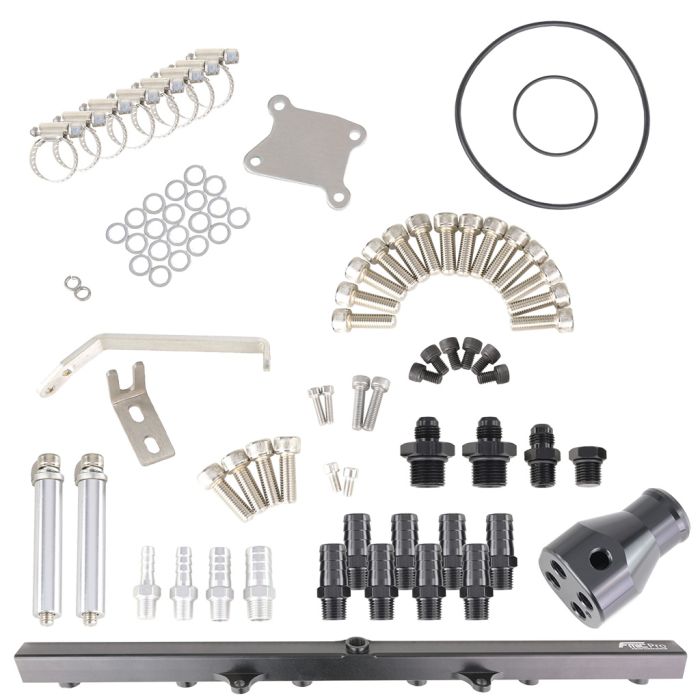

- Includes fuel rail for easy installation of high-performance injectors and a complete fuel system seal

- Increased manifold volume for greater stability under high boost pressure
Technical specifications: - Injector port diameter: 13.5 mm - Throttle body inlet diameter: 90 mm - Throttle body bolt pattern: 90 mm (horizontal) × 87 mm (vertical)

Application: The manifold is designed for 2.6L inline-six, twin-turbo RB26DETT engines, installed from the factory in Nissan Skyline GT-R models and widely used in tuning projects and engine swaps.
Examples of factory vehicles with the RB26DETT engine: - Nissan Skyline GT-R R32 (1989–1994) - Nissan Skyline GT-R R33 (1995–1998) - Nissan Skyline GT-R R34 (1999–2002)
