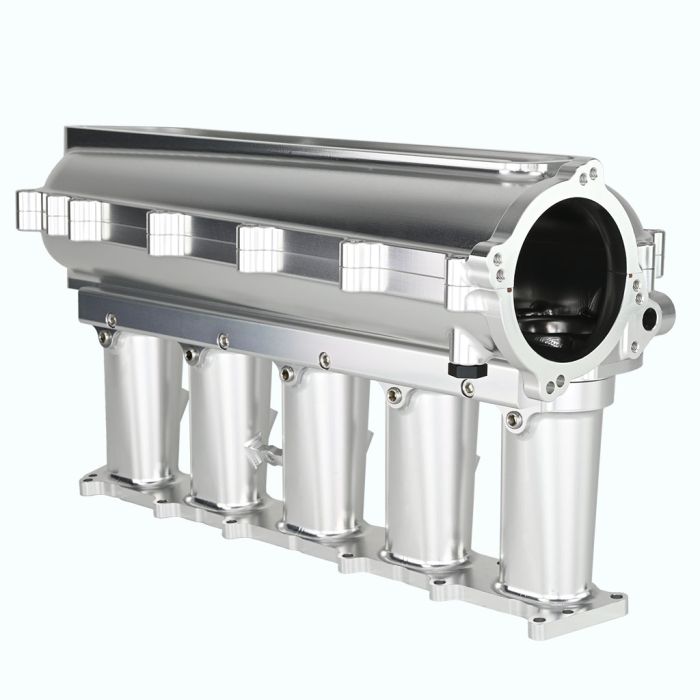

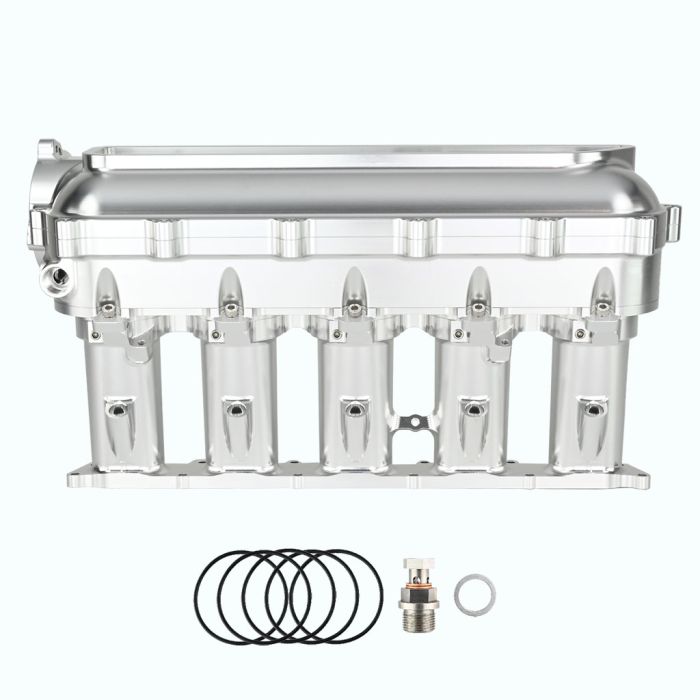

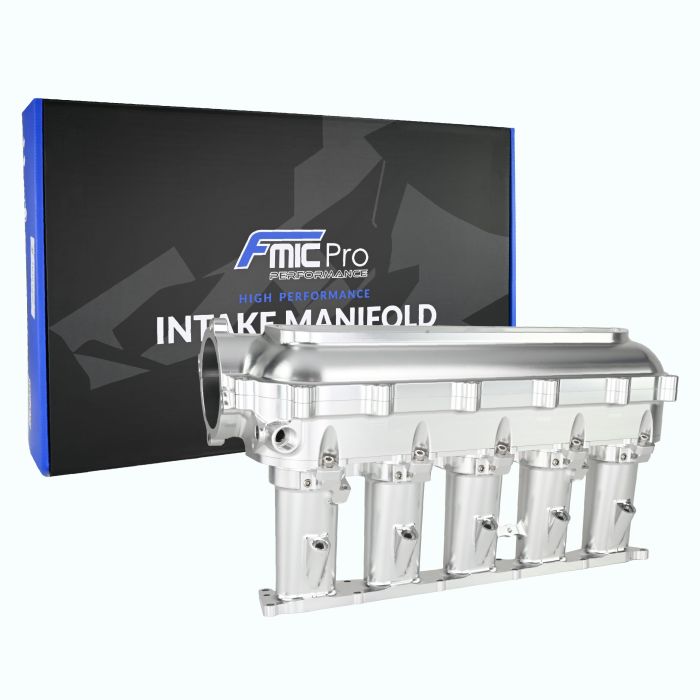

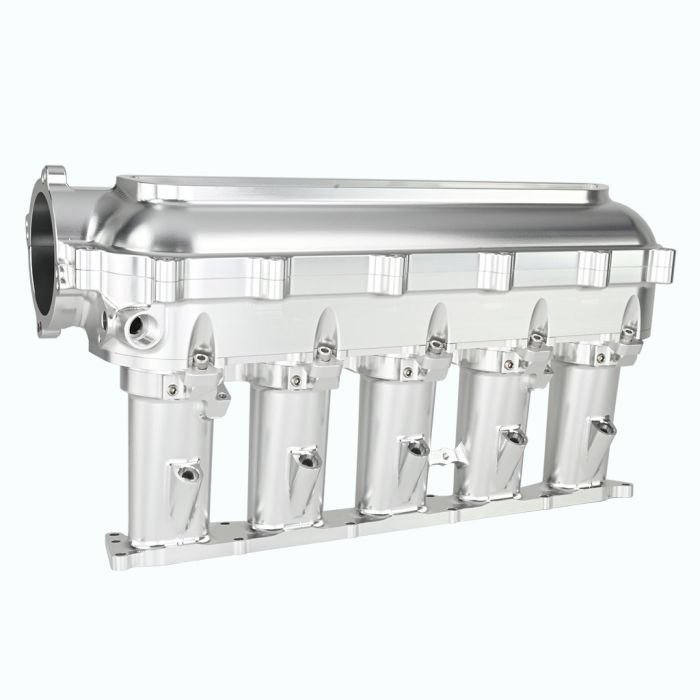

CNC FMIC.Pro Intake Manifold for Audi RS3 TTRS 2.5 TFSI EA855

FMIC.Pro CNC Intake Manifold for Audi RS3 TTRS 2.5 TFSI EA855

The high-performance FMIC.Pro intake manifold for Audi 2.5 TFSI EA855 engines (RS3/TTRS) features an advanced design focused on maximizing airflow, durability, and reliability, for both daily driving and competition. Made entirely from high-quality 6061-T6 aluminum, it consists of three precision CNC-machined components: main body, lid, and flange, assembled to ensure optimal sealing, strength, and structural rigidity.

At the core of the manifold are integrated intake runners, whose geometry has been optimized using CFD technology. These ensure uniform, fast, and laminar airflow to all cylinders, significantly improving combustion efficiency and engine performance. The result is a tangible increase in power, better throttle response, and more linear torque delivery throughout the entire rev range.

- Three-piece CNC-machined construction: main body, lid, and flange

- Made from 6061-T6 aluminum: lightweight, rigid, and corrosion-resistant

- Integrated intake runners to optimize airflow and cylinder filling

- CNC machining ensures precise fit and high-quality finish

- Increased intake manifold volume for better high-pressure performance

- 1/8" NPT ports in each runner for additional fuel injection

- Six additional 1/8" NPT ports for methanol, sensors, or nitrous oxide systems

- Flanges machined from a solid block for maximum sealing and durability

- Compatible with the original throttle body: no modifications required

- Powder-coated finish for increased thermal resistance and aesthetics

- Track tested for proven performance and reliability

- Improved airflow for increased power and torque

- Enhanced throttle response and increased engine flexibility

- Stable combustion for consistent engine operation under any load

- Supports fuel system upgrades for methanol, ethanol, or additional injectors

- Injector seat diameter: 13 mm - Throttle body inlet diameter: 81 mm

- Throttle body bolt pattern: 4 x 76 mm and 4 x 71 mm

- Runner dimensions: 49 mm x 30 mm

Compatible with:

Audi RS3 2.5T DAZA EA855 2017-

Audi TTRS 2.5T DAZA EA855 2017-
