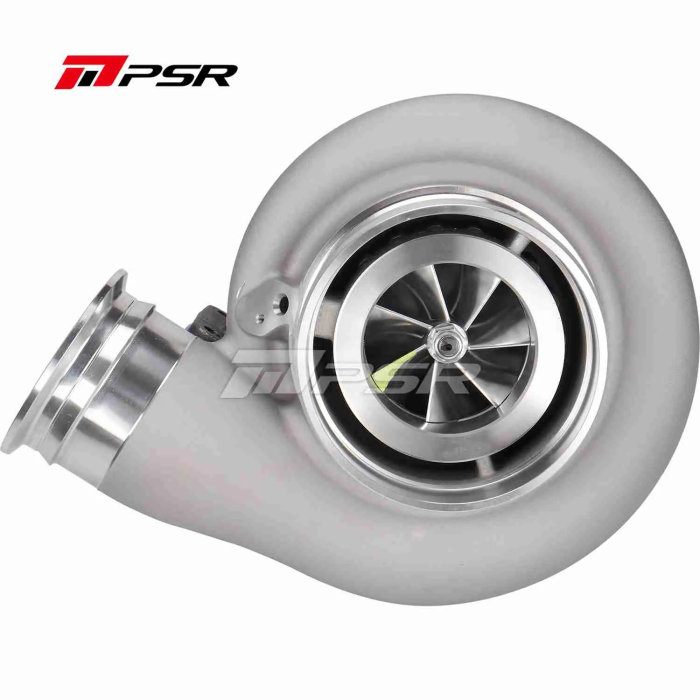

Pulsar PSR 492G Supercore journal bearing

PSR 492G turbocharger with machined compressor wheel and journal bearings

Machined compressor wheel with extended tip technology for optimal aerodynamics
Inconel 713 turbine wheel for high-temperature operation
T6 divided turbine housings in 1.15 A/R, 1.32 A/R, 1.45 A/R, or 1.58 A/R with 5" V-band outlet and 5.75" OD Marmon flange

T4 divided turbine housing in 1.25 A/R with 4" V-band outlet

Compressor housing: Standard

Turbine housing: No turbine housing
Turbine wheel: 96/88 mm

Recommended engine displacement: 3.0-8.0 L
Horsepower: 750-1650 HP

Features:

Compressor wheel options: 92 x 122 mm, 7+7 blades

Machined compressor wheels with extended tip technology

Turbine wheel: 96 x 88 mm, 9+0
Standard and optional T51R MOD for compressor cover with integrated speed sensor port

-12AN oil drain flange and TRB inlet gasket. Included in box

Details:

Compressor inlet: 5.5” slip-fit

Compressor outlet: V-band

Turbine housing A/R: 1.25, 1.15, 1.32, 1.45, and 1.58 as options

Turbine housing inlet: T4 divided and T6 divided as options

* V-band flange kits available:

4” TRB outlet flange and clamp kit (164340001)

5” TRB outlet flange and clamp kit (164340002)

3” COMP. outlet flange and clamp kit (164340003)

3.5” COMP. outlet flange and clamp kit (164340004)
4” COMP. outlet flange and clamp kit (164340005)
