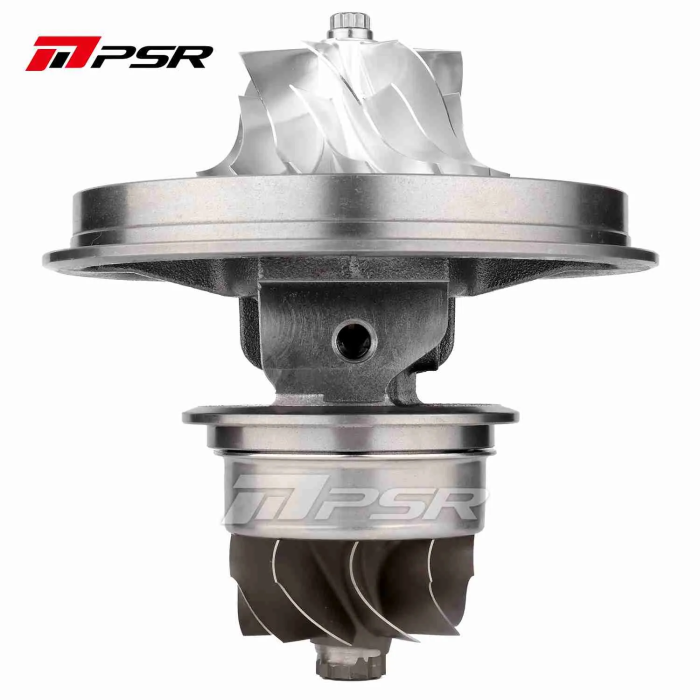

Pulsar PSR 475G Supercore journal bearing

PSR 475G turbocharger with billet compressor wheel and journal bearings

Billet compressor wheel with extended tip technology for optimal aerodynamics
Inconel 713 turbine wheel for high-temperature operation
T6 divided turbine housings in 1.15 A/R, 1.32 A/R, or 1.58 A/R with 5" V-band outlet and 5.75" OD Marmon flange

T4 divided turbine housing in 0.9 A/R, 1.10 A/R, or 1.25 A/R with 4" V-band outlet

Compressor housing: No compressor housing

Turbine housing: No turbine housing
Turbine wheel: 96/88 mm

Recommended displacement: 3.0-8.0 L
Horsepower: 500-1000 HP

Features:

Compressor wheel: 75*101 mm 7+7
Billet compressor wheels with extended tip technology
Turbine wheel: 96/88 mm 9+0

STD compressor cover without integrated speed sensor port

T51R MOD compressor cover without integrated speed sensor port

Oil drain flange -12AN

Details:

Compressor inlet: 5 inches, slip-fit

Compressor outlet: V-band

Turbine housing A/R: 1.15, 1.25, 1.32, 1.45, and 1.58 (optional)

Turbine housing inlet: T4 divided and T6 divided (optional)

* V-band flange kits available:

TRB outlet. 4-inch flange and clamp kit (164340001)
TRB outlet. 5-inch flange and clamp kit (164340002)
COMP outlet. 3-inch flange and clamp kit (164340003)
COMP outlet. 3.5-inch flange and clamp kit (164340004)
COMP outlet. 4-inch flange and clamp kit (164340005)
