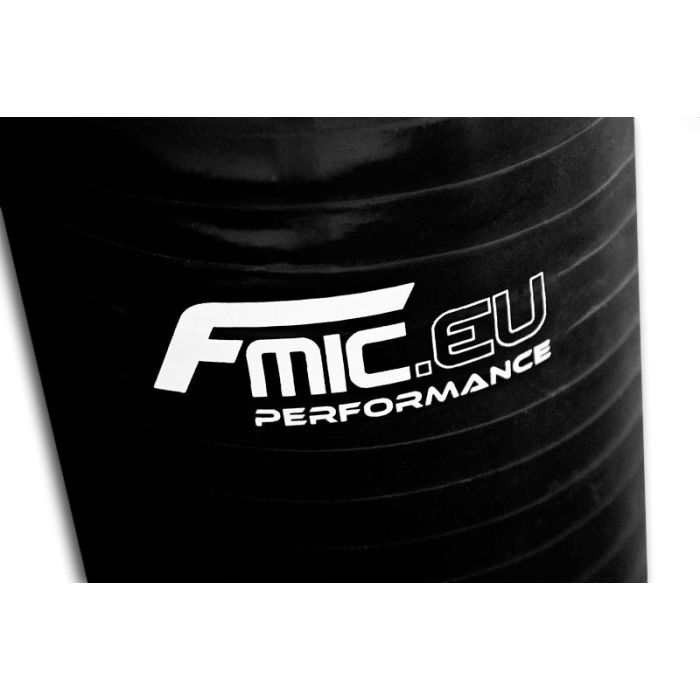

Silicone 90° Reducing Elbow 25/30mm Black

FMIC.EU silicone connectors are a professional product made of the highest quality silicone and reinforced with multiple layers. Years of research and development, combined with cooperation with the best drifting and drag racing drivers from all over Europe, have resulted in silicone connectors capable of withstanding the enormous pressures generated in intake systems. Their additional resistance to coolant, fuel vapors, grease and engine oil extends the use of our silicones to cooling systems, crankcase breathers and many others. All FMIC.EU silicones are reinforced with 5 or 6 layers (depending on the diameter) of our unique pattern, an internally developed braiding that, despite its high strength, offers high flexibility. FMIC.EU silicones are the perfect choice for building professional intake or cooling systems and are used by many internationally renowned tuning workshops. Type: 90° Reducing Elbow
Inner dimensions: 25 mm / 30 mm (outer + 11 mm)
Length: 150 mm per arm

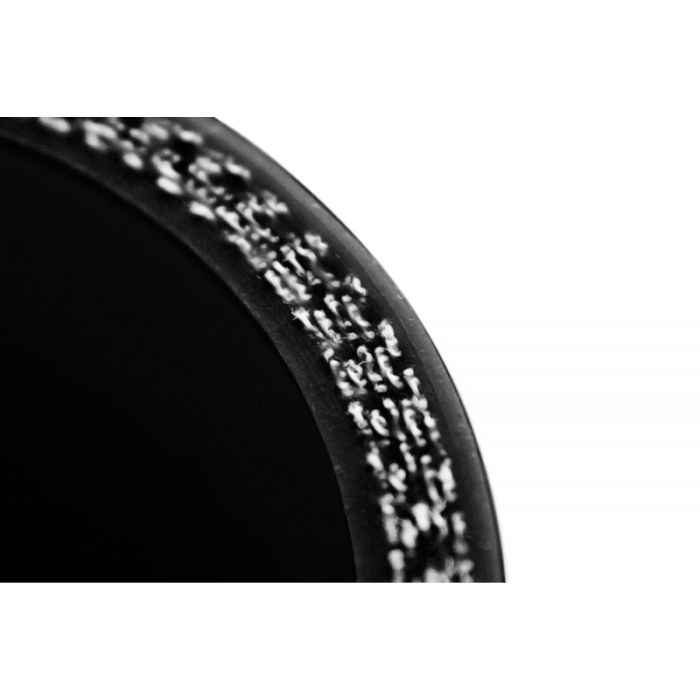

Wall thickness: 5.5 mm, 4-ply braiding
Tested up to 7 bar at temperatures from -60 °C to +260 °C

For this size, a clamp is needed:

SGB

T-bolt clamp

American

25 mm

36-39 mm

32-44 mm

30 mm

40-43 mm

32-44 mm

Color: Black
