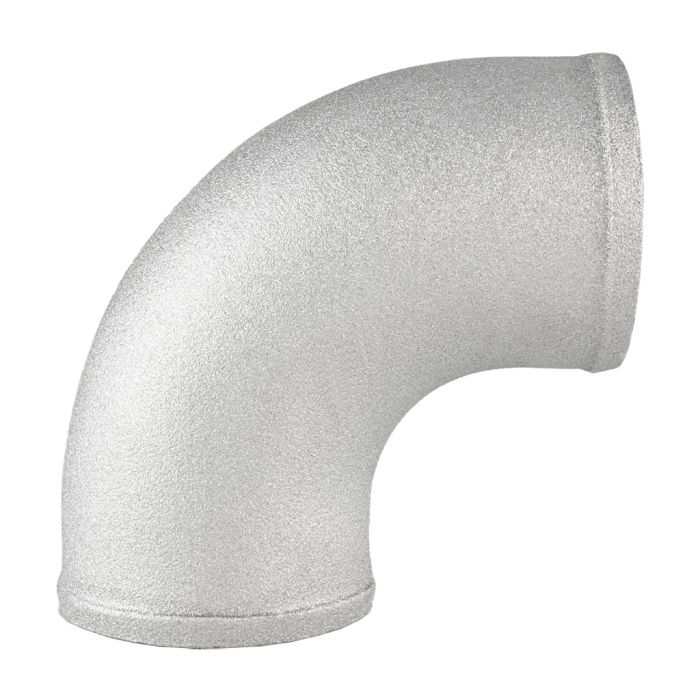

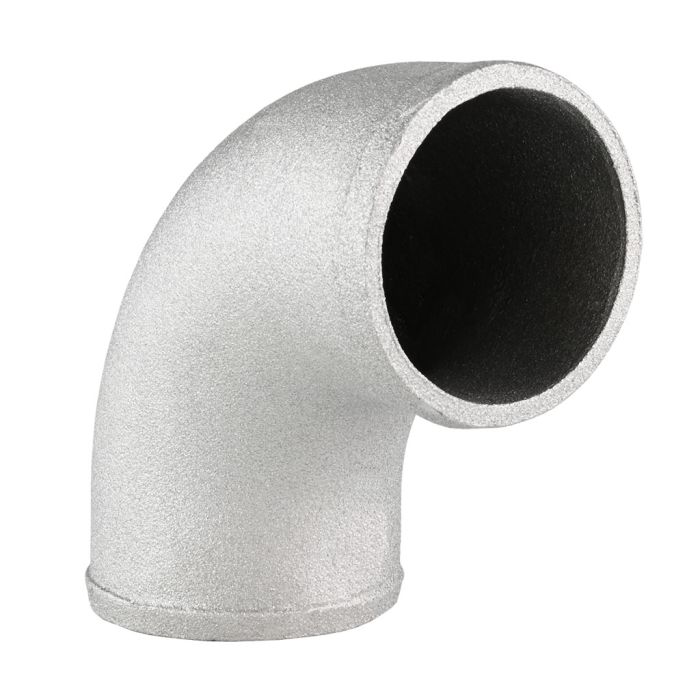

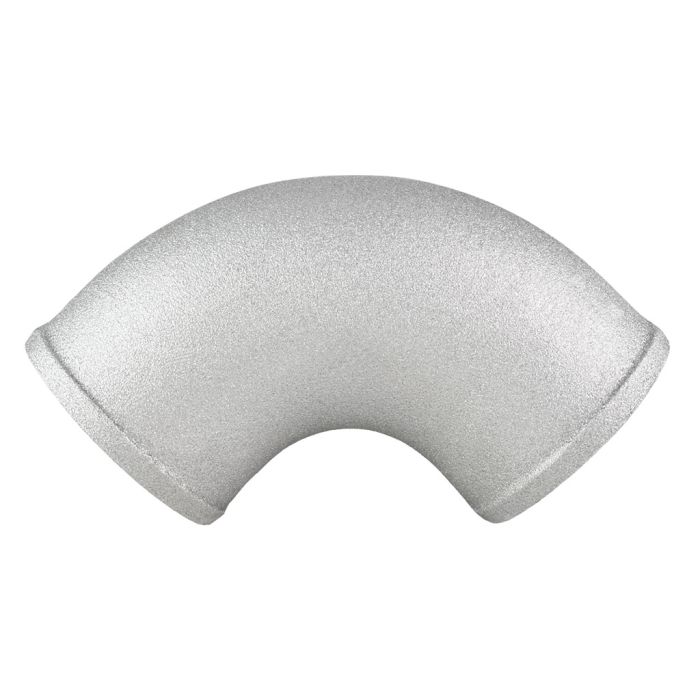

FMIC.EU 90-Degree Cast Aluminum Elbow (89 mm)

FMIC.EU 90° 89mm Cast Aluminum Elbow

A 90-degree elbow made of high-quality cast aluminum, designed for use in vehicle intake systems. With a wall thickness of 3mm, it ensures high mechanical strength and resistance to pressure and temperature. The material is highly malleable, making welding easier. Thanks to its rigid construction, the elbow effectively prevents boost pressure losses, while its smooth internal surface minimizes flow resistance and air turbulence. Additionally, its wide bend radius provides a compact size, facilitating installation in the limited space of the engine compartment. It is ideal for connections with turbochargers, intercoolers, and other components of the forced induction system, ensuring maximum engine performance. This product is highly recommended for tuners and specialized workshops in racing vehicle modifications.

Product Features:

- High-quality cast aluminum
- Wall thickness: 3 mm
- Outer diameter: 89 mm (thickened ends: 92 mm)

- Inner diameter: 82 mm

- Bend radius: approximately R-75
- Thickened ends allow the use of silicone connectors

- Excellent weldability

- Rapid heat dissipation

- Rigid construction prevents pressure loss

- Smooth internal surface minimizes flow resistance

- Compact size thanks to the wide bend radius

- Designed for modifying intercooler inlets, turbochargers, and other forced induction components
