PRODUCT DESCRIPTION
Product details

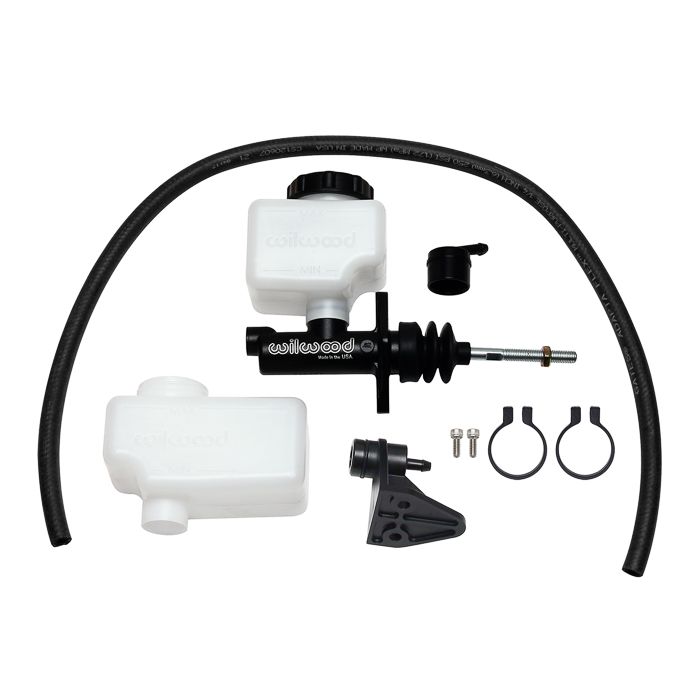

Compact Master Cylinder with Remote Mount Flange
Wilwood compact combination master cylinders have been designed for limited space applications requiring the output capability of a full-size master cylinder. Its ultra-short 3.37” compact body provides an additional 2.16” of clearance between the mounting flange and fluid outlet. Its 1.12” piston stroke meets or exceeds the stroke capacity of most standard size cylinders. The 1/8” NPT fluid outlet located on the top radius of the cylinder bore reduces the possibility of trapped air. The enhanced fluid inlet allows for the included standard reservoir to be mounted in the kit and also features 11/16-20 internal threads for custom reservoir configurations.
The black electrophoretic-coated aluminum body resists corrosion and maintains a durable finish. Master Cylinder Dimensions Cylinder Bore 5/8" Area (sq in) 0.310 Travel StrokeMaster Cylinder Description
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum / Plastic |
| Finish | Black Electrophoretic Coating |
Reservoir
| Reservoir Type | Remote |
| Reservoir Capacity (oz) | 10.0 or 7.0 |
| Reservoir Size (cu in) | 18.0 or 12.6 |
| Rate |
Additional Dimensions
| Overall Length (in.) | 7.80" |
| Flange to End Length (in.) | 3.37" |
| Inlet Size (in.) | 0.87" or 11/16-20 |
| Inlet Fitting (in.) | 1/4" Hose |
| Outlet Size 1 (in.) | 1/8-27 NPT |
| Outlet Size 1 (in.) | |
| Outlet Size 2 (in.) | |
| Outlet Size 2 (in.) |
