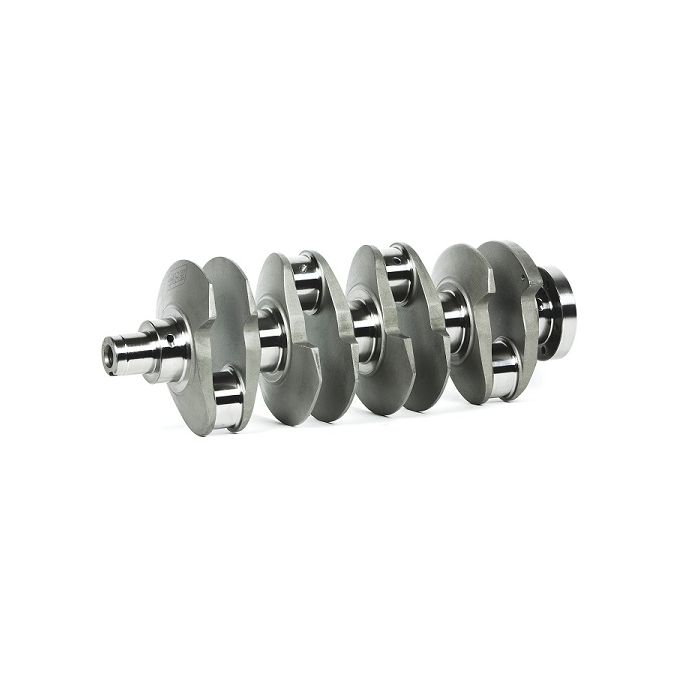

ZRP machined crankshaft for Volkswagen / Audi 2.0L TFSI EA113 C-AUD-003L

The ZRP long-stroke crankshaft for Audi/VW 2.0L TFSI (belt-driven) increases displacement to 2036 cc (82.5 mm x 95.2 mm). Manufactured from solid aerospace-grade 4340 steel, no effort has been spared on material quality to ensure the best possible product. Meticulously designed thanks to our extensive experience, this crankshaft delivers maximum engine performance. Its production process includes very rigorous inspections to ensure maximum quality and precise tolerances for a perfect fit. The Audi crankshaft is balanced to an accuracy of 1 g·cm² (±0.1) using state-of-the-art Sunnen machinery. A report with the balancing results is included. See specific features for your application below.

Product features and design

Knife-edged profile counterweights to reduce weight and improve crankshaft aerodynamics.
Straight oil holes for better lubrication of the rod journals.

High-speed oiling system for optimal lubrication. Chamfered oil holes.

Journal fillet radius distributes load stress.

Tapered rod journals to reduce weight.

Technical features of ZRP crankshafts

Full CNC machining.

Ion (plasma) nitriding process for hardening.

Multi-stage heat treatment.

Shot peening for stress relief.

100% Magnefluxing for an impeccable surface finish.

Heat treatment for superior wear resistance.

Micro-polishing for longer bearing life.

Ultrasonic and X-ray tested to ensure a reliable final product.
