PRODUCT DESCRIPTION
Product details

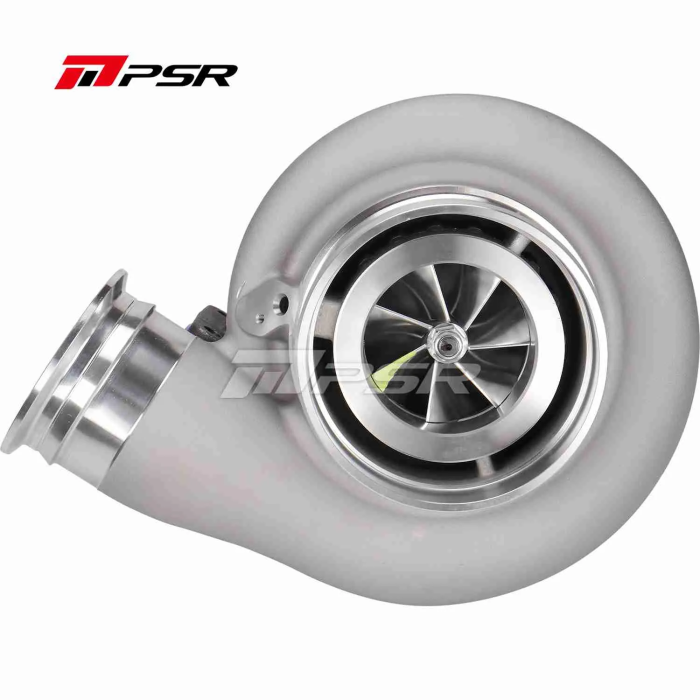

Machined billet aluminum compressor wheel with PSR 488DG dual ball bearing
CNC machined billet aluminum bearing housing with finned cooling design
9-blade Inconel 713 turbine wheel, G-series design, for better gas flow and reduced turbo lag
Dual ceramic ball bearing system
Machined compressor wheels with extended tip technology
-12AN oil drain flange and TRB inlet gasket. Box included
Compressor Housing: Standard
Turbine Housing: No Turbine Housing
Recommended Displacement: 3.0-8.0 L
Horsepower: 750-1550 HP
Features:
CNC machined billet aluminum bearing housing with finned cooling design
9-blade Inconel 713 turbine wheel, G-series design, for better gas flow and reduced turbo lag
Dual ceramic ball bearing system
Machined compressor wheels with extended tip technology
-12AN oil drain flange and TRB inlet gasket (comes in a box)
Details:
Compressor wheel: 88*117 mm, 7+7 blades
Compressor inlet: 5.5” slip fit
Compressor outlet: V-band
Turbine wheel: 96*88 mm, 9 blades
Turbine housing A/R: 1.15, 1.25, 1.32, 1.45, and 1.58 inches (optional)
Turbine housing inlet and outlet: T4 divided inlet, V-band outlet; T6 divided inlet, 3/4" Marmon outlet
Oil feed port: 1/4 NPT
Oil drain: Standard T6 drain flange
