PRODUCT DESCRIPTION
Product details
MFD32 Gen2 CANchecked specific for your Audi A6/A7 C7 (4G): perfectly integrated and with all data always in view.
The MFD32 Gen2 transforms your air vent into a smart display with essential functions. Our displays are designed for anyone to install. Most include illustrated installation instructions, so you can install it yourself without needing a workshop.
Key Features

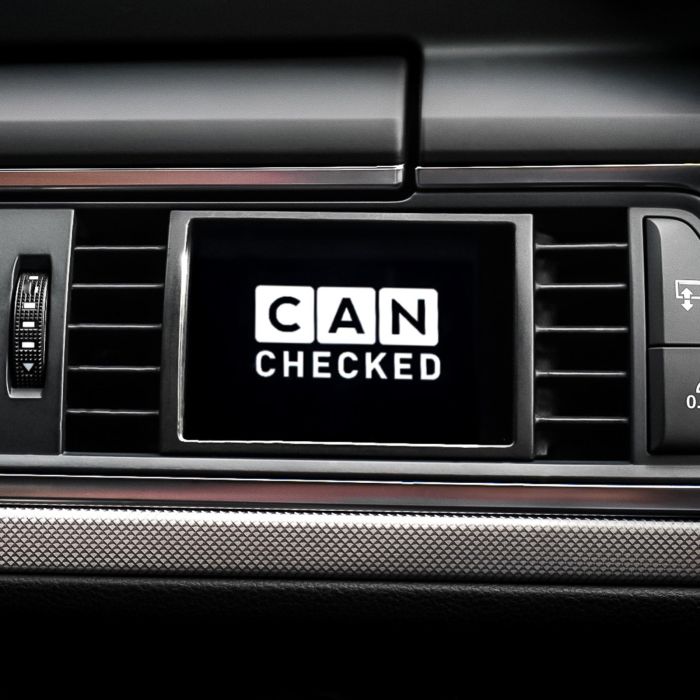

Seamless integration: The vehicle-specific frame allows air to pass through the display.
CAN bus: Detailed vehicle data display, like manufacturer diagnostic tools.
Gear indicator: Directly via the CAN bus or calculated from speed and RPM.
Touch display: Navigate through pages with intuitive gestures.
Customization: Design your own pages, add images, or start animations.
Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display.
CAN switching: Use the display as a keypad and send your own CAN messages to the bus.
Customizable alarms: Easily configure and activate customizable alarms. For example, receive an important warning when exhaust gas temperature exceeds 900 degrees.
Data logging: Record and save your data on the internal SD card for later analysis.

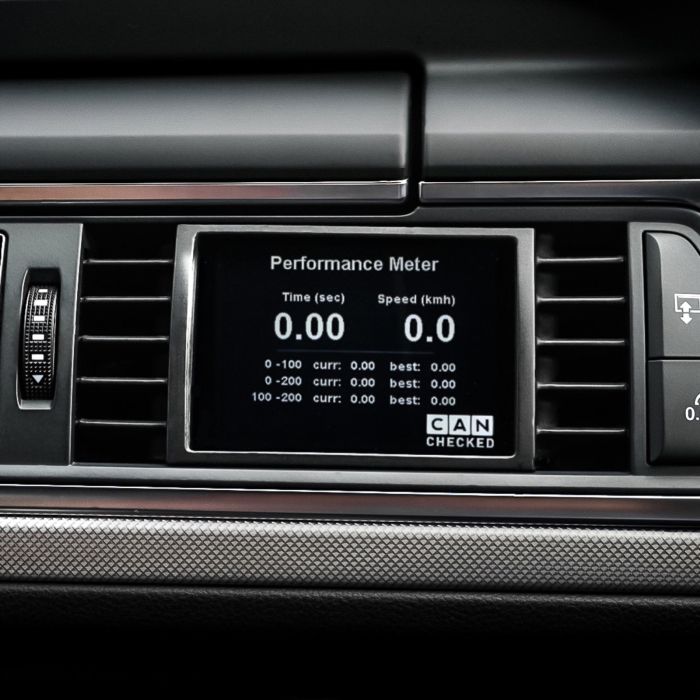

Performance meter: Measure your 0-100, 100-200, and 0-200 km/h times with the integrated performance meter, no additional hardware needed.
DTC*: Read and clear error codes from the engine control unit, transmission, ABS, and all-wheel drive.
Dimming*: The display automatically dims along with the instrument cluster.
Different views:

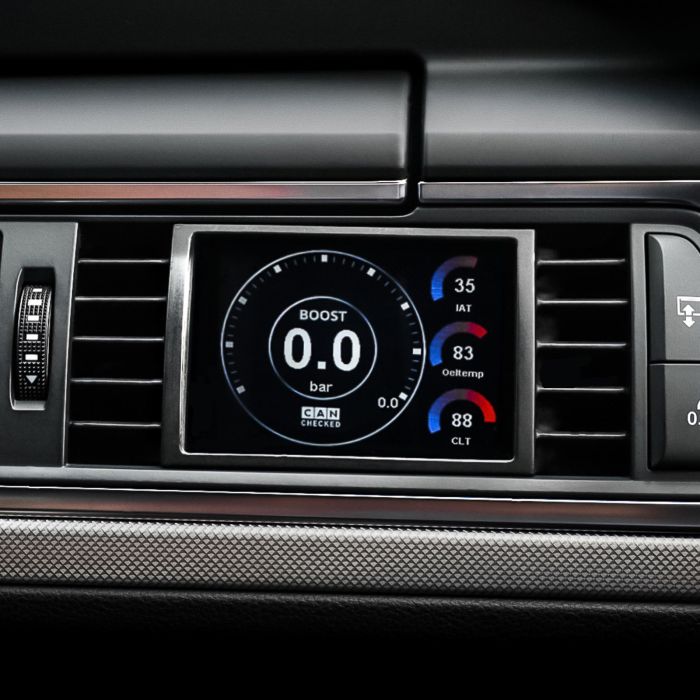

Configure your own page or choose from several predefined views.
The display includes predefined example pages.
Custom pages can be created.
Up to ten pages available.
20 different widget types (e.g., sensor value, analog pointer, YT diagram, speed bar, circular display, vertical/horizontal bar).
Widgets can be scaled and positioned by drag and drop.
Widget colors fully adjustable.
Up to 64 widgets per page.
Display Configuration Software (DSS):
With CANchecked's DSS software, you can fully customize your display. With the integrated log viewer, you can download and view log files. It also includes a CAN logger. The core is the integrated TRI editor, with which you can adjust sensors (both CAN Bus and internal): assign minimum and maximum values for warnings and change the names of your sensors.
Supported Values
Many customers ask: What values can I get from my ECU? The answer: ALL.
We have reverse-engineered data from most engines and can offer detailed information. Our display supports querying CAN Bus data (UDS, TP2, manufacturer-specific protocols).
By default, your display comes with predefined TRI/TRX files. All queried sensors are defined in these files. These vary depending on the engine. Here is an excerpt of the possibilities:
Temperatures:
Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG gearbox temperature.
Pressures:
Boost pressure, ambient pressure, fuel pump pre-supply pressure, rail pressure (actual/target).
Lambda/mixture
