CANchecked Display MFD28 Gen2 for Subaru WRX VA LHD 14-21

MFD28 Gen2 with CAN certification specific to your Subaru WRX VA: seamless integration and all data always in view.

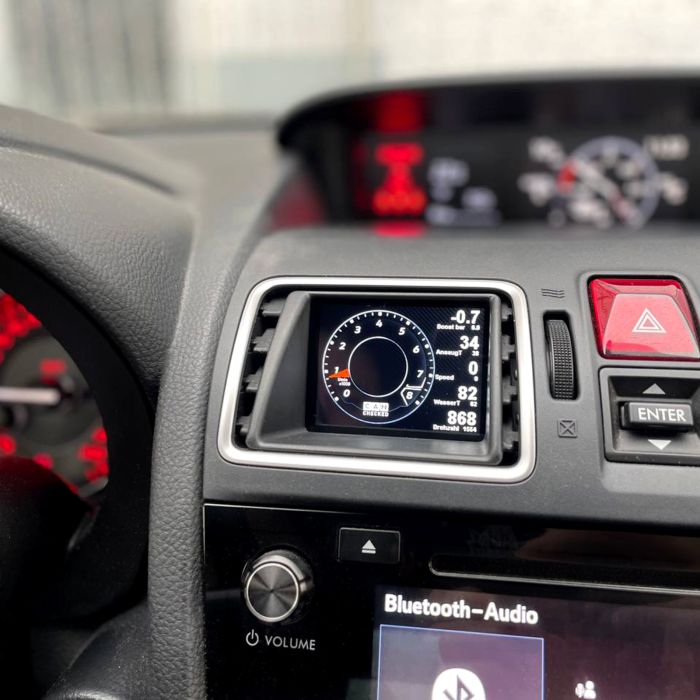

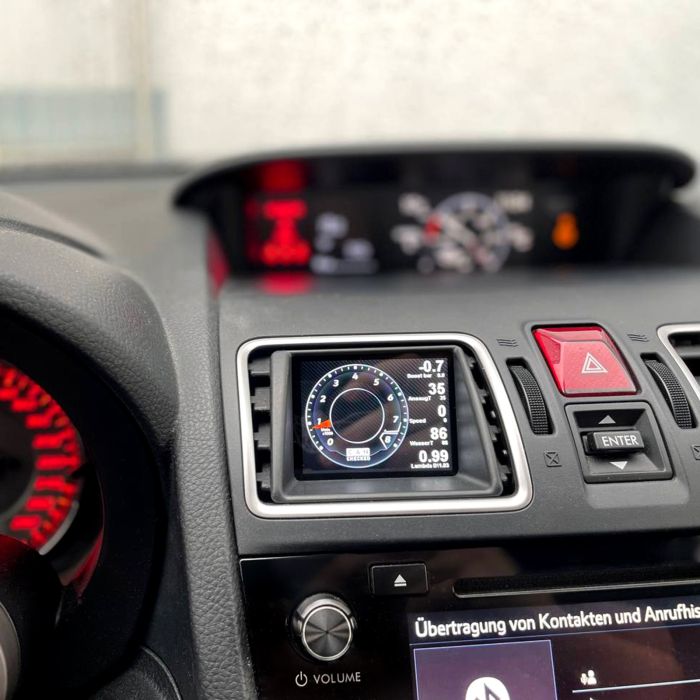

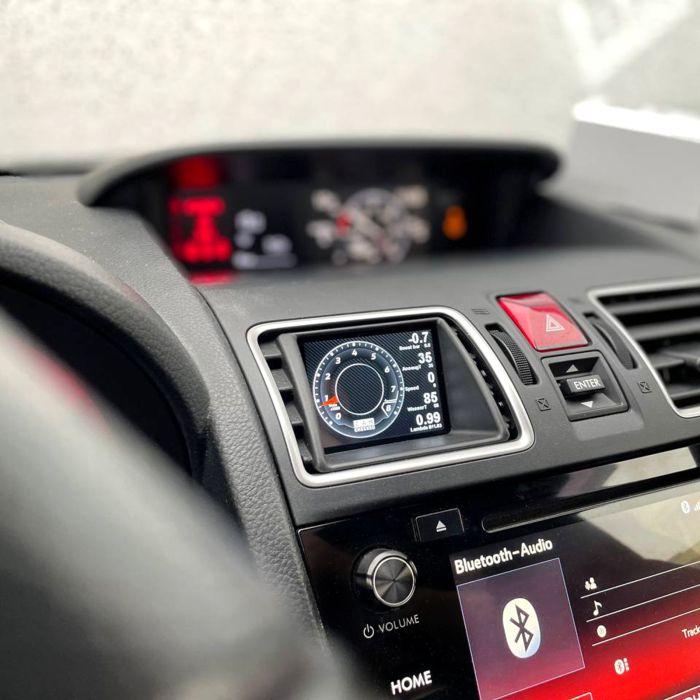

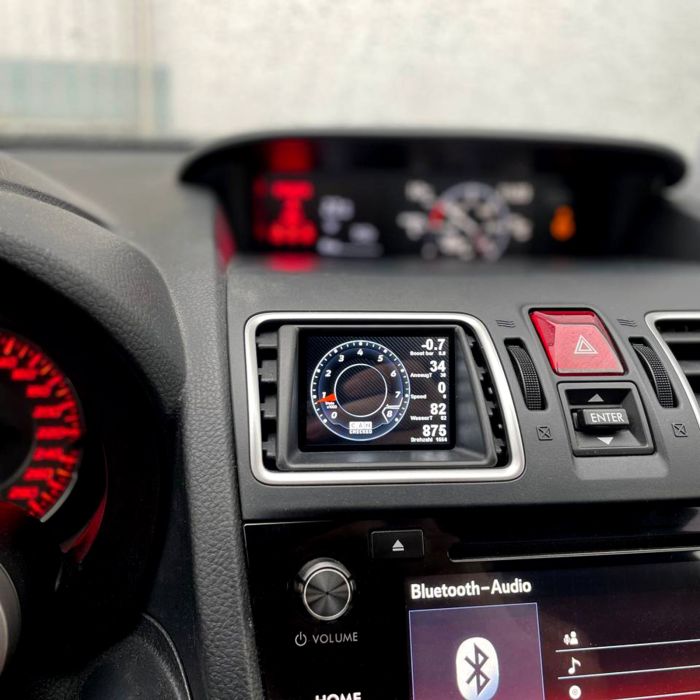

The MFD28 Gen2 transforms your air vent into a smart display with essential functions. Our displays are designed for anyone to install. Most include illustrated installation instructions, so you can install it yourself without needing a workshop.

Key Features

Seamless integration: The vehicle-specific frame allows air to pass around the display.
CAN Bus: Display detailed vehicle data, such as manufacturer diagnostic tools.
Gear indicator: Directly via CAN Bus or calculated from speed and RPM.
Touchscreen: Navigate through pages with intuitive gestures.
Customization: Design your own pages, add images, or start animations.
Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display.
CAN switching: Use the display as a keypad and send your own CAN messages to the bus.
Customizable alarms: Easily configure and activate customizable alarms. For example, you will receive an important warning when the exhaust gas temperature exceeds 900 degrees.

Data logging: Record and save your data to the internal SD card for later analysis.

Performance meter: Measure your 0-100 km/h, 100-200 km/h, and 0-200 km/h times with the integrated performance meter, no additional hardware required.
DTC*: Read and clear engine control unit, transmission, ABS, and all-wheel drive errors.

Dimming*: The display automatically dims along with the instrument cluster.

Different Views

Configure your own page or choose from several predefined views:

The display includes predefined example pages.

It is possible to create custom pages.

Up to ten pages available.
20 different widget types (e.g., sensor value, analog pointer, YT diagram, speed bar, circular display, vertical/horizontal bar).

Widgets can be scaled and positioned by dragging and dropping.

Widget colors are fully adjustable.

Up to 64 widgets per page.

Display Setup Software (DSS)

With CANchecked's DSS, you can fully customize your display. With the integrated log viewer, you can download and view log files. Additionally, it includes a CAN logger. The core is the integrated TRI editor, with which you can adjust sensors (whether CAN Bus or internal): assign minimum and maximum values for warnings and change the names of your sensors.

Supported Values

Many customers ask: What values can I get from my ECU? The answer: ALL.

We have reverse-engineered data from most engines and can provide detailed information. Our display supports querying CAN Bus data (UDS, TP2, manufacturer-specific protocols).

By default, your display is delivered with predefined TRI/TRX files. All queried sensors are defined in these files. These vary by engine. Below is an excerpt of the possibilities:

Temperatures:

Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG gearbox temperature.

Pressures:

Boost pressure, ambient pressure, pre-feed fuel pump pressure, rail pressure (actual/target).

Lambda/mixture

Lambda value, injection time, short-term Lambda trim, long-term Lambda trim

Other

RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 ignition advance in %, terminal 30 voltage, engine torque, gear, diesel-specific values

If values are missing, they can be added later. Scope of Delivery

Included with every shipment

MFD28 Gen2 data display integrated into the vent insert for left-hand drive vehicles
Vehicle-specific connection cable
Quick start guide
USB data cable
SD card (pre-installed in the display)
SD card adapter
Screen protector film (to prevent reflections)

Connection and Extension

Sensors of any type can be connected via the four analog inputs. We support 0-5V linear sensors and NTC sensors. Our CAN-certified sensors are stored by default in the TRI/TRX files and only need to be connected:

AIN1: Temperature sensor (NTC01)

AIN2: Transducer for K-type exhaust gas temperature sensor (TCC01)

AIN3: 0-10 bar pressure sensor (FLP01)

AIN4: 0-5.5 bar absolute boost pressure sensor (BST10)

For connection, you can use our pre-assembled AIN wiring harness.
In addition to analog sensors, you can also connect our external shift light with eight LEDs. This can flash in different colors, and speed limits and colors can be configured directly on the display.

The ethanol sensor connects directly to the display. It needs a pull-up resistor (10 kΩ) between 5V and the signal. This way, you can display and record ethanol content and temperature directly on the screen.

Advanced Features

With mathematical channels, you can calculate sensor data from each other. The user table allows you to generate additional sensors with 2D or 3D maps.
Optional Accessories

CC24000 SLM08 - External switched lighting module
CC22780 ANC04 - Four-way AIN harness
CC22100 CBD08 - Eight-way CAN distribution hub
CC22902 NTC01 - Temperature sensor for liquids, 1/8 inch NPT thread
CC22903 TCC01 - K-type converter, 0-1250 °C
CC22901 FLP01 - Pressure sensor, 0-10 bar (145 psi), M10x1 thread
CC22900 BST10 - Pressure sensor, 6.5 bar (95 psi)

*Not available for all protocols
