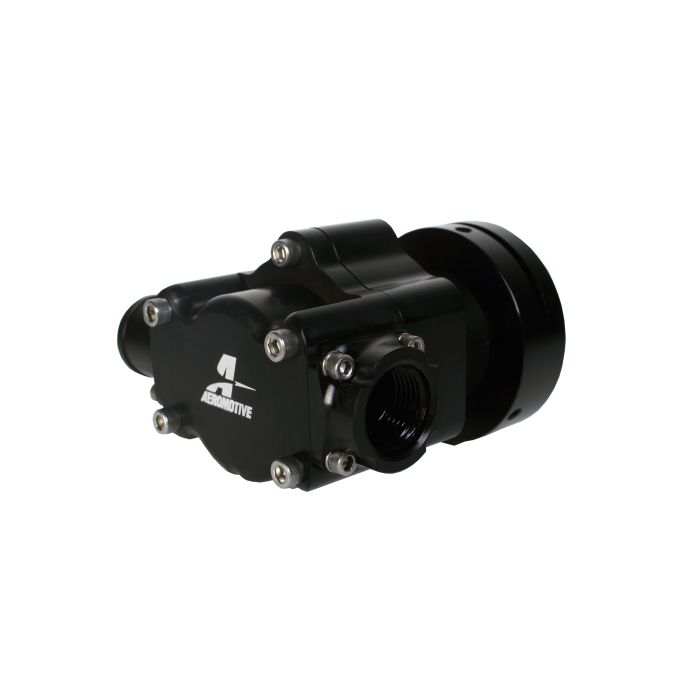

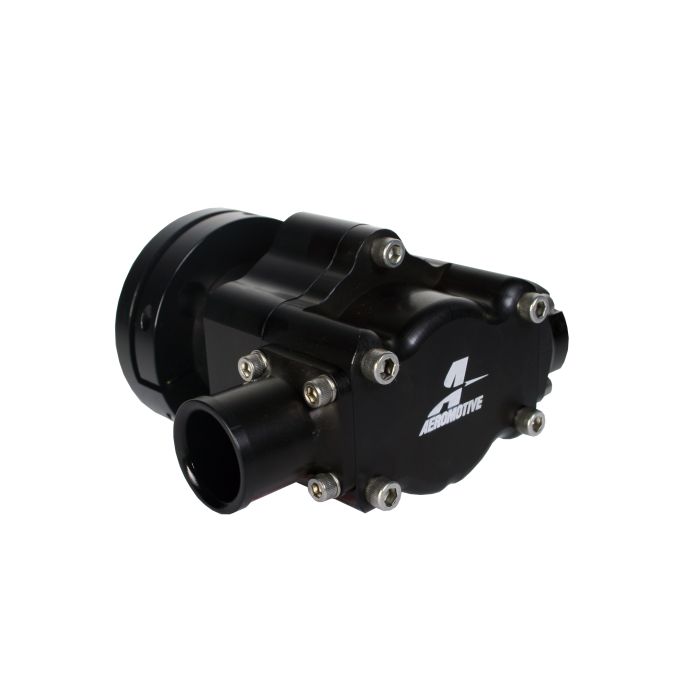

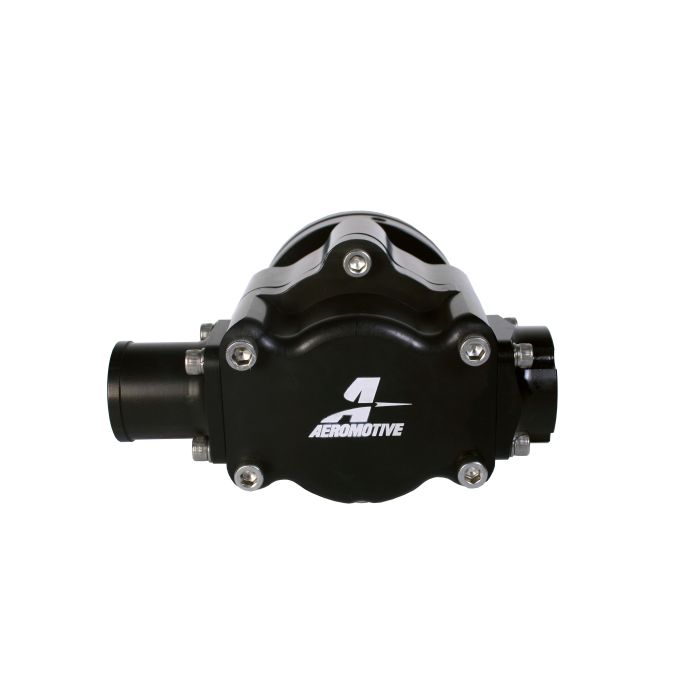

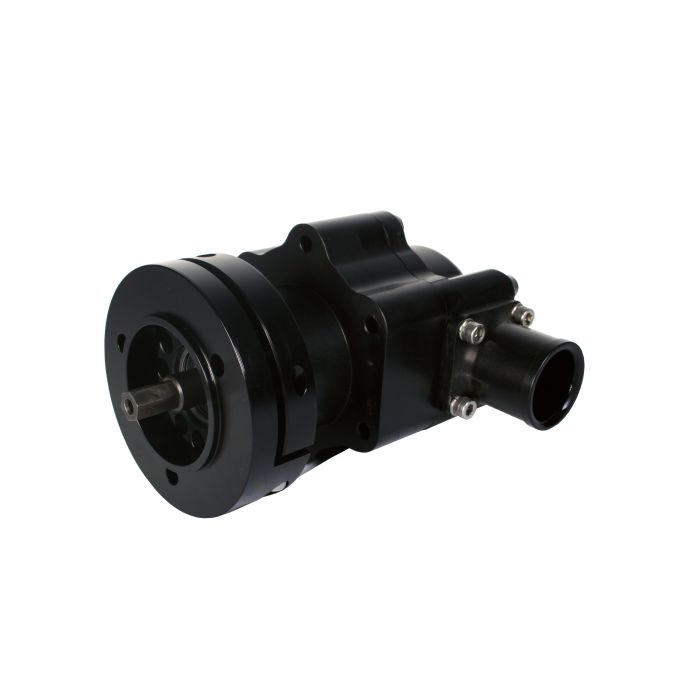

Aeromotive 11117 Atomic Hex Drive Fuel Pump

P/N 11117: 12 Series Hex Fuel Pump, 12 GPM. 12 GPM Mechanical Hex Pump.

Designed to fuel high horsepower Electronic Fuel Injected (EFI) and carbureted engines, gasoline, ethanol or methanol. The 12 Series Hex pump requires a 3/8" female hex coupler, allowing it to be driven off the camshaft or off the back of a properly prepared dry sump oil pump. Can also be mounted off engine or in the rear of the vehicle, driven by a heavy duty cable drive system such as those by Waterman Racing. Can be used in high pressure or low pressure applications.

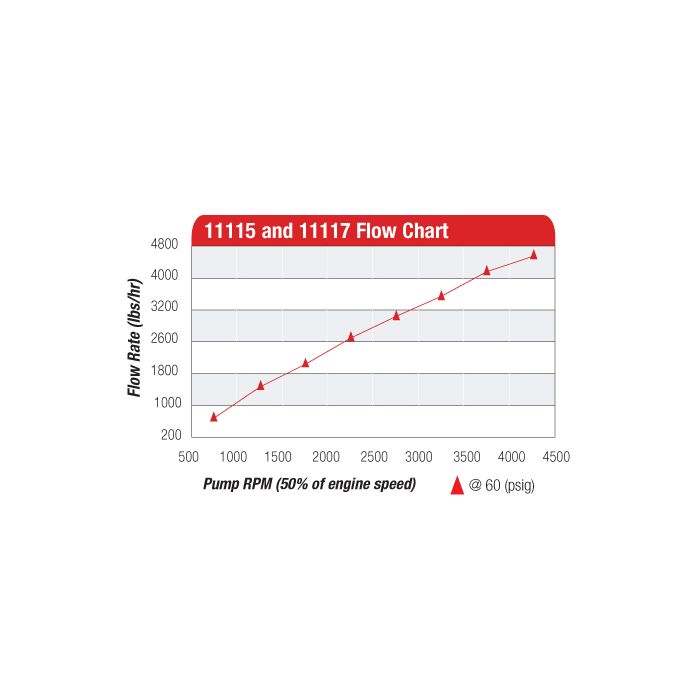

Flows up to 12 GPM.

Naturally Aspirated Electronic Fuel Injection (EFI):

Over 6000 HP (FWHP) with Gasoline

Up to 3000 HP (FWHP) with Methanol

Supercharged Electronic Fuel Injection (EFI):

Over 5000 HP (FWHP) with Gasoline

Up to 2000 HP (FWHP) with Methanol

High efficiency Gerotor pumping mechanism. Robust Type III Hard Coat Anodized body.

CNC machined from 6061 T6 aircraft aluminum.

Hex drive collar with 3 bolt Enderle bolt pattern.

Standard 3/8″ Male Hex Drive Shaft.

Includes 1.25″ inlet and AN-16 Male inlet.

ORB-12 female outlet port.

EFI applications require high flow return regulators: P/N 13132, 13133, 13137, or 13113.

Sold Separately: Electric priming/starting kit: P/N 17301
