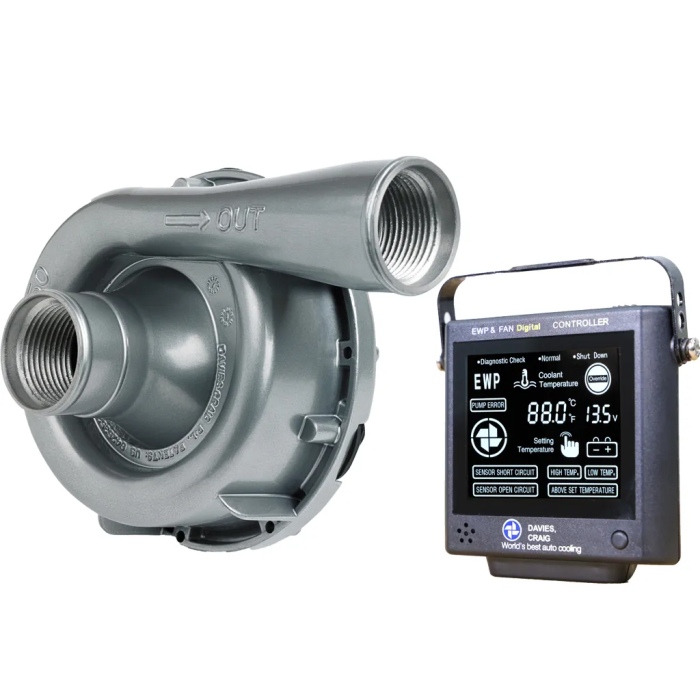

Davies Craig DC8970 EWP150 Electric Water Pump and Remote Controller Combo, 12V

EWP®150 Alloy Combo – Remote Electric Water Pump & Controller (12V)

Upgrade your cooling system with the Davies Craig EWP®150 Alloy Electric Water Pump (12V) – a high-flow, remote-mount solution designed for performance vehicles requiring superior temperature control.

With a high flow rate of 162 litres per minute (42.8 US Gal/min), it’s engineered for high-horsepower, turbocharged, supercharged, and modified engines. The EWP®150 effectively manages excessive heat and is also compatible with intercooler applications. By reducing the load on the engine compared to a traditional mechanical pump, it helps unlock power and improve overall efficiency.

The EWP® Combo setup is the ideal solution for a complete electric water pump conversion. This setup allows for the removal or disabling of the belt-driven mechanical water pump, and in most cases, the removal of the factory mechanical thermostat, providing precise and fully controlled cooling system performance.
By switching to an EWP® Combo system, you’ll gain optimal temperature management, enhanced efficiency, and full control over your engine’s cooling strategy.

Kit includes:

1x EWP®150 Alloy

1x Digital EWP®/Fan Controller Mounting Plate + Bracket

1x Thermal Coolant Temperature Sensor – ¼” NPT thread

1x In-line Nylon Adaptor, 38mm (2 x ¼” NPT)

1x ¼” NPT Nylon Plug

1x Wiring Harness (with 10-amp fuse)

4x Hose Clamps

1x Self-tapping Screw 8 x 3/8 BZ

1x Blue 6mm Ring Terminal

Technical specifications

EWP®150 Alloy Pump

Operating Voltage: 3V DC to 15V DC

Max Current: 10A at 13V

Flow Rate (Max): 162 L/Min (42.8 US Gal/Min)

Operating Temp: -40°C to 120°C (-40°F to 248°F)

Pump Design: Clockwise centrifugal with volute chamber

Pump Weight: 1170 grams (2.6 kg) lbs)

Pump Material: Aluminium (Powder Coated)

Burst Pressure: 500 kPa (72.5 psi)

Internal Connection: -16AN ORB

Suits Hoses: 35mm to 51mm (1.38” to 2”). Quick connect size: 38mm

With 3mm sleeve (DC8510): 44mm

With 6mm sleeve (DC8511): 51mm

DIGITAL LCD CONTROLLER

Voltage Range: 12V DC to 29V DC
LCD Screen Size: 64.6mm x 55.6mm
Max Current: 12 Amps
Target Temperatures: 40°C to 110°C
Fan Start Temperature: +3°C above set temp
Automatic Shutdown: 3 minutes or -10°C
Sensor Type: Thermistor in Housing
Weight: 100 Grams (3.5 Oz)
Dimensions (L x W x D): 98 x 95 x 25mm

Memory: Set & Target Temperature

Indicators: Temperature, Power, EWP, Fan, Error
